KERN MLS 50-3IR160 User Manual

MLS-BA-defsi-0713
12
7
14 Data output

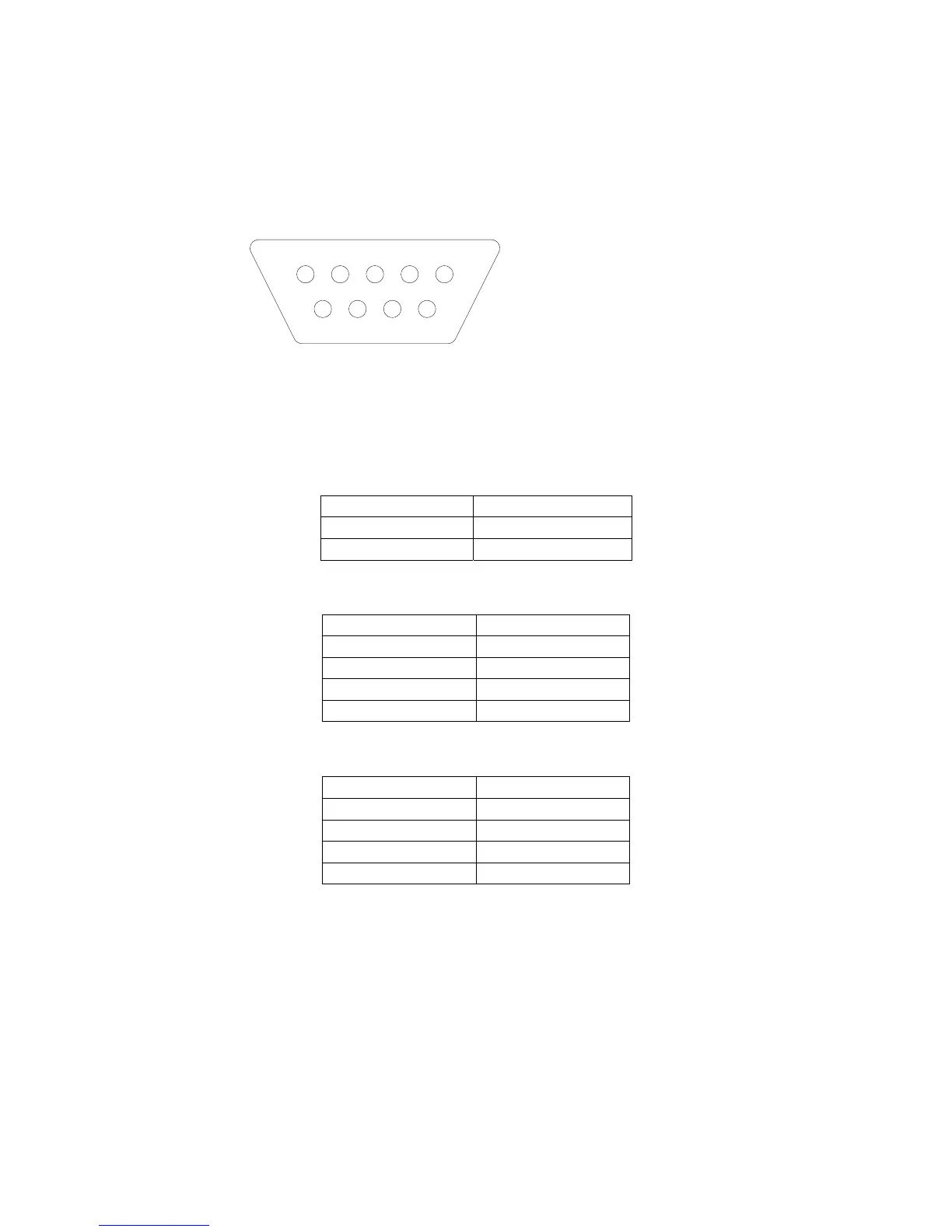

Pin allocation of the balance exit plug (front view):
5 1
9 6
Pin 2: Receive data
Pin 3: Transmit data
Pin 5: Signal ground
Interface cables:
Ö Balance printer
3 (TxD) 1 (RxD)
5 (GND) 3 (GND)
7 -8 clench
Ö Balance - PC 9-pole
2 (RxD) 3 (TxD)
3 (TxD) 2 (RxD)
5 (GND) 5 (GND)
4 -6 clench 4 -6 clench
7 -8 clench 7 -8 clench
Ö Balance - PC 25-pole
2 (RxD) 3 (TxD)
3 (TxD) 7 (GND)
5 (GND) 4 – 5 clench
7 -8 clench 6 -20 clench
2 (RxD)
