Now you can use the 11713D/E Web Browser Interface to access and control the instrument. See
“Exploring the 11713D/E Web Interface over LAN” on page 98.
If you plan to program the instrument over LAN or use such programs, make sure you have
installed the required I/O software on your computer.
Use the Connectivity Expert utility of the Keysight IO Libraries Suite to add the 11713D/E and verify
a connection. When identifying the instrument, it is easiest if you use the IP address noted in step 3
above.
2 Verify 11713D/
E LAN
configuration is
ready for auto
mode

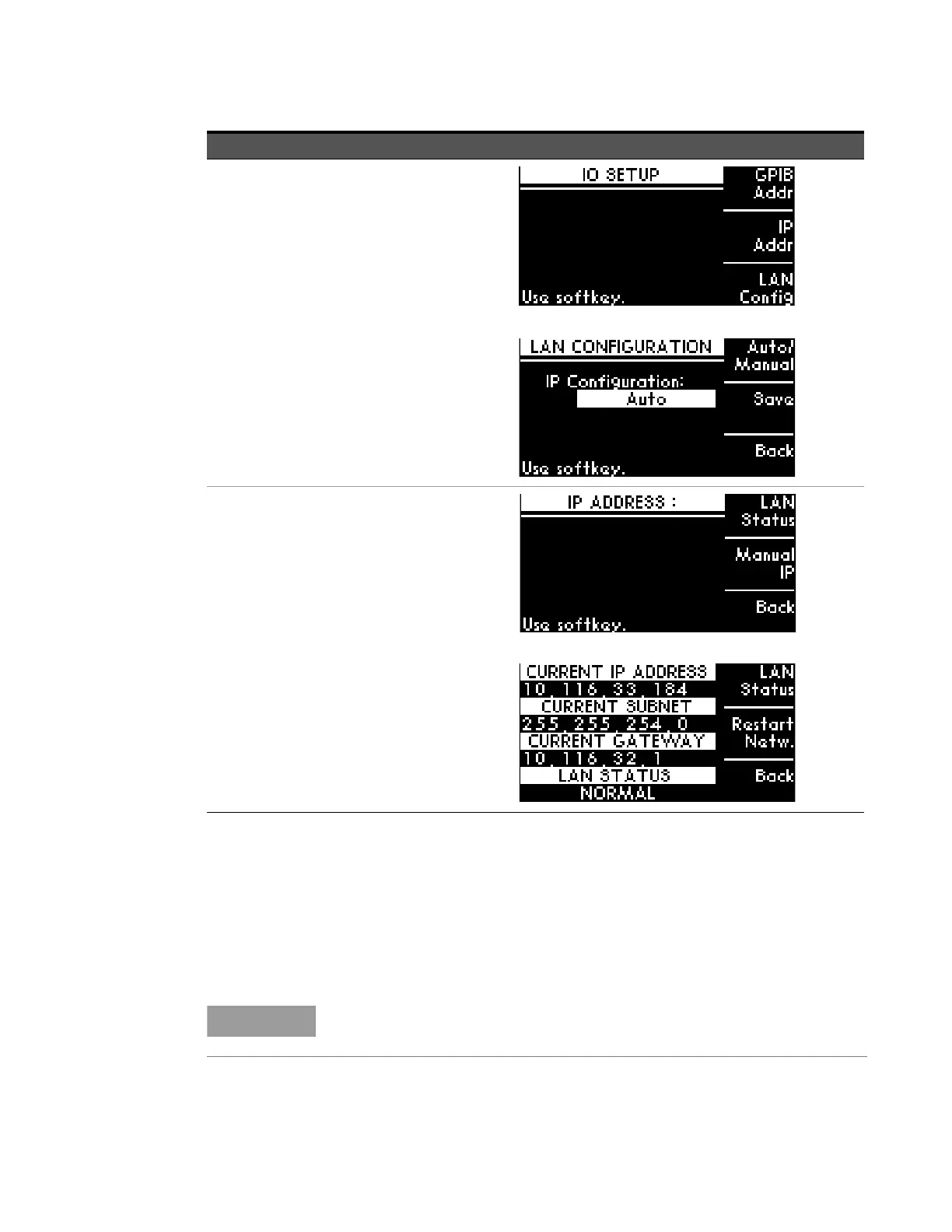

a Press Menu/Enter button on the
front panel of 11713D/E.
b Select IO using navigation keys
and press Menu/Enter.
c At IO SETUP screen, press LAN
CONFIG softkey.
d At LAN CONFIGURATION screen,
ensure IP Configuration is AUTO.
e If needed, press Auto/Manual
softkey until AUTO is displayed and
SAVE.
f Press BACK softkey to go back to
IO SETUP screen.
3 Verify LAN
status on
11713D/E
a At IO SETUP screen, press IP
ADDR softkey.
b At IP ADDRESS screen, select LAN
STAT softkey.
c Verify values CURRENT IP
ADDRESS, CURRENT SUBNET,
and CURRENT GATEWAY are valid.
d Ensure LAN STATUS is NORMAL.
e If LAN STATUS is FAULT, check
your LAN connection and then
press Restart Netw softkey and
wait.
f Press BACK softkey to go back to
IP ADDRESS screen.
If you have installed any other I/O software, refer to the documentation
included with that software.
Step Action Illustration
