Keysight B1500A Configuration and Connection Guide
2-3
B1500A Accessories
Accessories for the B1500A
WARNING There are potentially hazardous voltages, up to ± 100 V (MPSMU/HRSMU) or
± 200 V (HPSMU) at the Force, Sense, and Guard terminals.
To prevent electrical shock, do not expose these lines.
WARNING To prevent electrical shock during use, install an interlock circuit and connect the
Interlock cable (See chapter 2.1.6 Other I/F and interlock).
CAUTION Never connect the Guard terminal to any output, including circuit common, chassis
ground, or any other guard terminal. Doing so will damage the SMU.

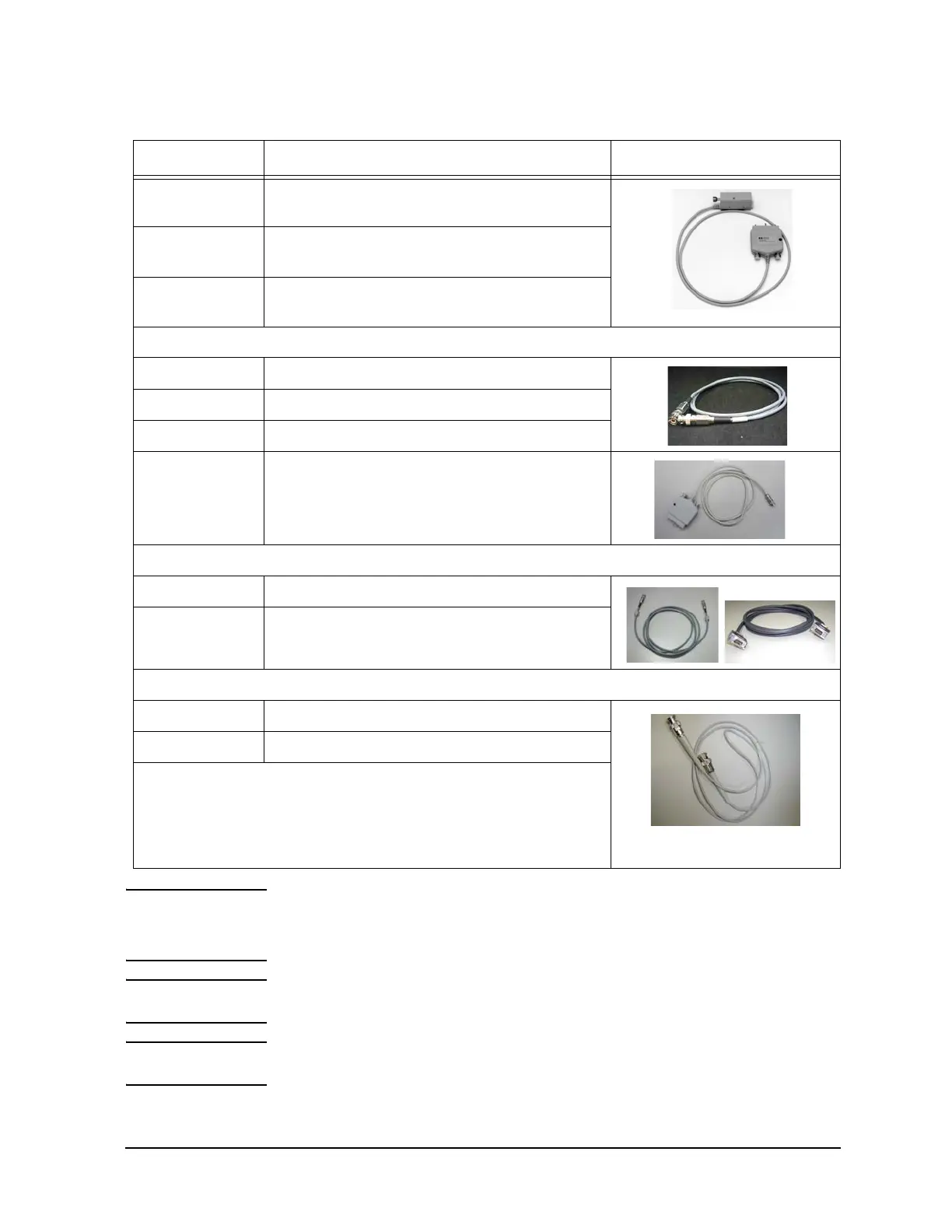

16494B-001 Kelvin triaxial cable to E5250A switching matrix
input port, 1.5 m
16494B-002 Kelvin triaxial cable to E5250A switching matrix
input port, 3 m
16494B-003 Kelvin triaxial cable to E5250A switching matrix
input port, 80 cm
GNDU cable
16493L-001 GNDU cable, 1.5 m
16493L-002 GNDU cable, 3 m
16493L-003 GNDU cable, 5 m
16493N-001 GNDU cable for B2200A/B2201A switching matrix
input port, 2 m (2.0 m cable length only)
ASU cable
16493M-001 Triaxial and D-sub cable for ASU(E5288A), 1.5 m
16493M-002 Triaxial and D-sub cable for ASU(E5288A), 3 m
BNC cable
16493B-001 Coaxial cable, BNC(m) to BNC(m), 1.5 m
16493B-002 Coaxial cable, BNC(m) to BNC(m), 3.0 m
The maximum voltage is 40 V, and Maximum current is 200 mA. The
Keysight 16493B Coaxial Cable is designed for use with VSU (Voltage
Source Unit), VMU (Voltage Measurement Unit) or PGU (Pulse
Generator Unit) on the Keysight 4155 series Semiconductor Parameter
Analyzer.
Model/Option Description Additional Information
