2-10
Keysight B1500A Configuration and Connection Guide
B1500A Accessories
Accessories for the B1500A
2.1.5 Test fixture
Keysight 16442B test fixture is designed for testing packaged devices and electronic
components. You can mount the suitable socket module on the 16442B, which allows you
to easily connect various devices to measurement units.
The 16442B has the following input ports.
• 6 SMU channels (Triaxial connector. It can be used either for 6 non-Kelvin or 3 Kelvin
connectors.)
• 2 VSU channels (BNC connector)
• 2 VMU channels (BNC connector)
• 2 PGU channels (BNC connector)
• 1 GNDU channel (Triaxial connector. It requires the Keysight 16493L GNDU cable.)
• 1 interlock 6-pin connector

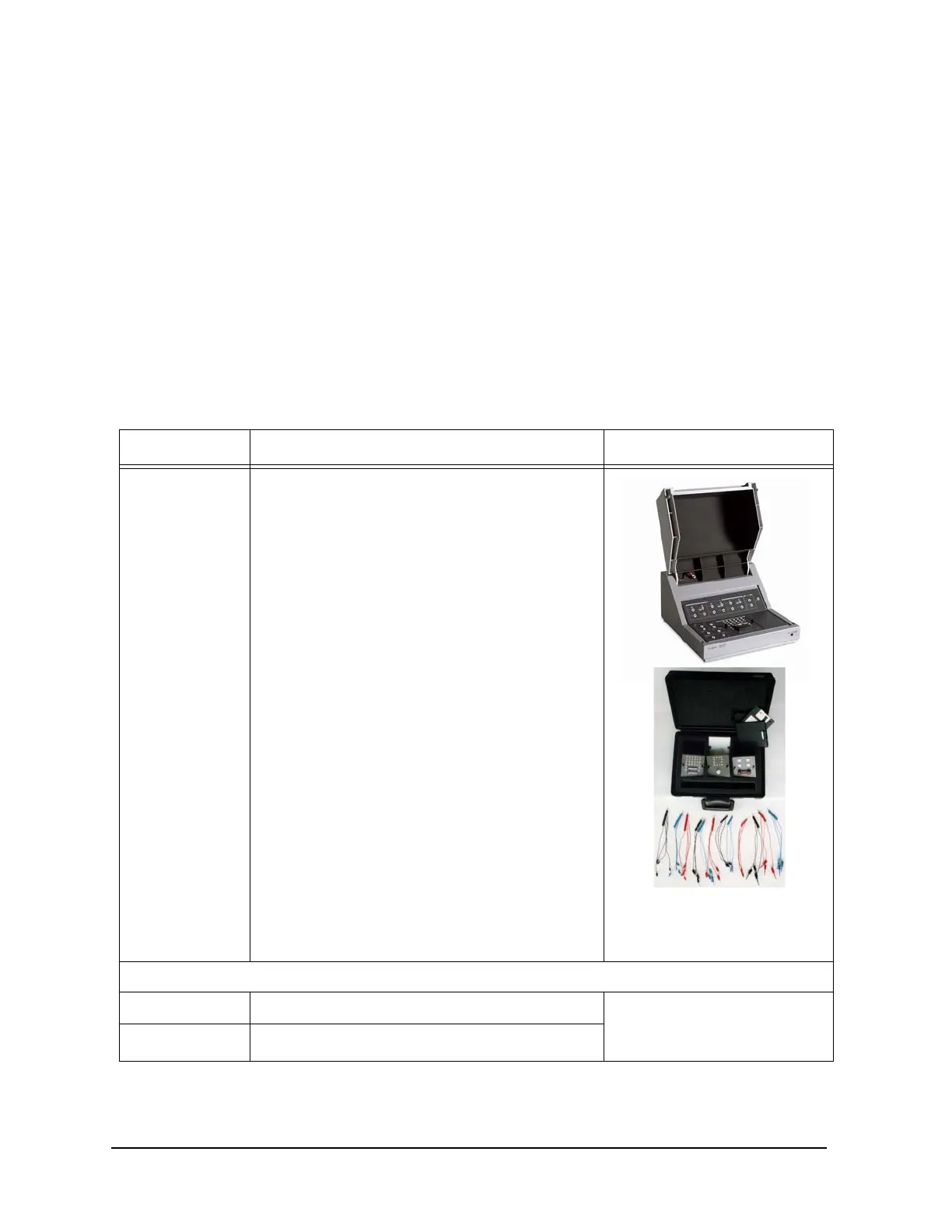

Table 2-5 16442B Test Fixture
Model/Option Description Additional Information
16442B Test Fixture for Semiconductor Devices
The following items are shipped as standard with the
16442B test fixture.
• Blank PTFE board
• 28-pin dual-in-package (DIP) socket module
• 0.075-inch universal socket module
• 0.5-inch universal socket module
• Miniature banana to pin plug cables, black (4 pcs)
• Miniature banana to pin plug cables, red (4 pcs)
• Miniature banana to pin plug cables, blue (4 pcs)
• Pin plug to pin plug cables, black (3 pcs)
• Pin plug to pin plug cables, red (3 pcs)
• Pin plug to pin plug cables, blue (3 pcs)
• Miniature banana to miniature clip cables,
black (3 pcs)
• Miniature banana to miniature clip cables,
red (3 pcs)
• Miniature banana to miniature clip cables,
blue(3 pcs)
• Miniature banana to miniature
banana,
black
(3 pcs)
• Miniature banana to miniature banana, red (3 pcs)
• Miniature banana to miniature banana, blue(3 pcs)
• Connection pin set (10 ea)
• Accessory case
Options for extra accessories
16442B-010 Add four 1.5 m Triaxial cables (16494A-001) If triaxial cables are required,
select either 16442B-001 or
16442B-011.
16442B-011 Add four 3.0 m Triaxial cables (16494A-002)
To Next Page
