Keysight B1500A Configuration and Connection Guide
Connection and Ordering Examples
Two terminal device
4.1 Two terminal device
This chapter describes prober or Fixture connection and ordering example of Keysight
B1500A Semiconductor Device Analyzer for 2 terminal devices.
4.1.1 General IV characterization

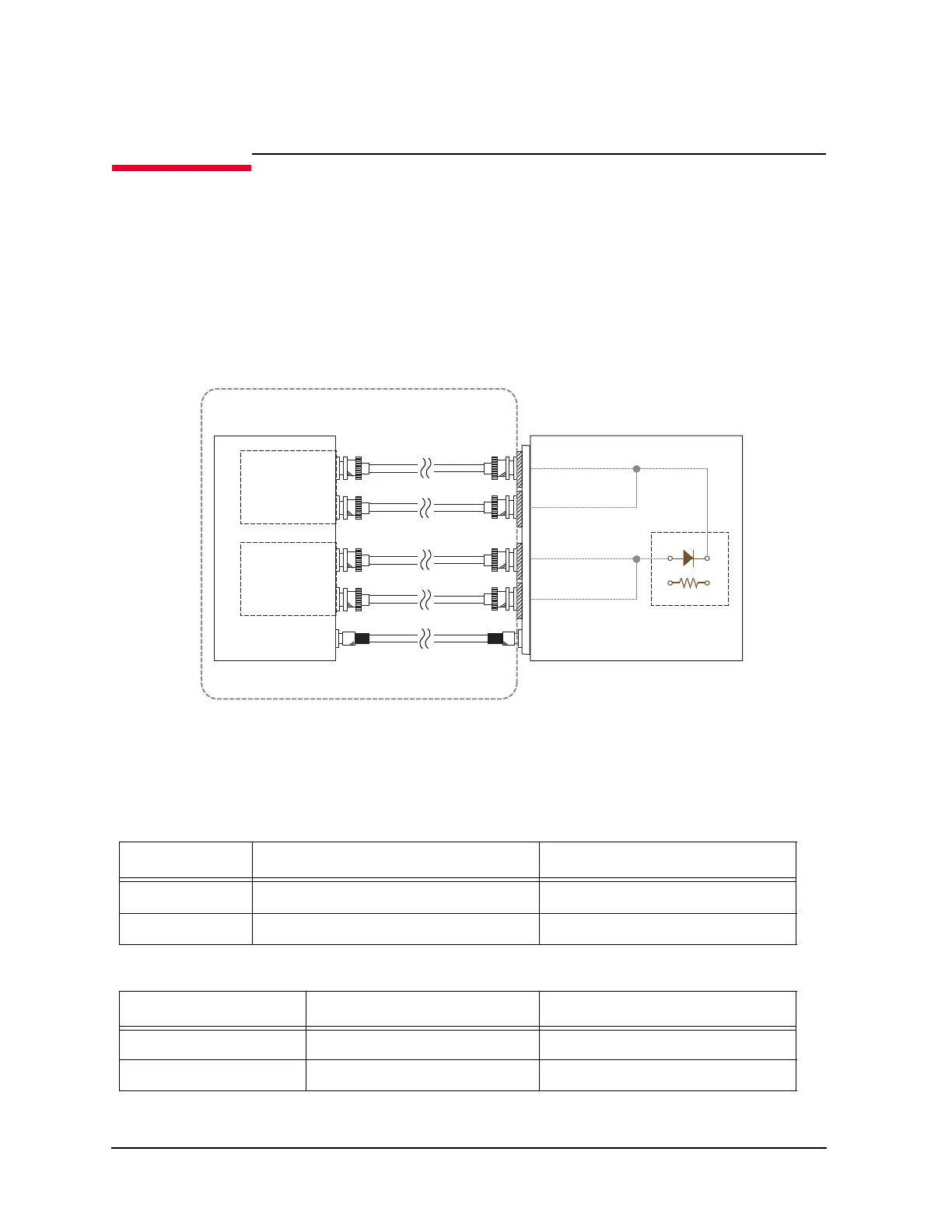

Figure 4-1 General IV configuration
Table 4-1 Target device and application
Table 4-2 Key specification
Device Application Note
Diode I
F
-V
F
, I
R
-V
R
, Breakdown
Resister R-I, R-V 2-wire or 4-wire
Item Range Note
Maximum I/V range 100 mA / 100 V
Minimum I/V resolution 10 fA / 0.5 μV
MPSMU
Triaxial cable
Sense
Force
B1500A
MPSMU
Sense
Force
Interlock cable
Connector plate
Fixture/Prober
DUT
AC
Interlock
Coverage of Configuration Example
