2-6
Keysight B1500A Configuration and Connection Guide
B1500A Accessories
Accessories for the B1500A
2.1.3 HVSPGU accessories
• SPGU cables - have co-axial type (SMA to coaxial) cables.
• SPGU synchronous cables - have co-axial (SMA to SMA) type cables. If multip
le
SPGUs
have been installed, connect the SPGUs by this cable. This
connection makes it
possib
le to perform the synchronous output by the multiple SPGU channels. Th
e
mast
er SPGU is the module which outputs the reference signal and the slave SPGU
s
are th
e modules which follow to the reference signal.
• SMU/PGU selector - Used to switch the measurement resource connected to the DUT
.
The measurement resource
can be SPGU or SMU. Needs the 16445A adapter to use
the
selector
. One selector provides two switching channels.
• Digital I/O cables - General digital I/O connection cable. This cable can
connect
betw
een digital I/O port on the B1500A and 16445A SMU/PGU selector adapter.

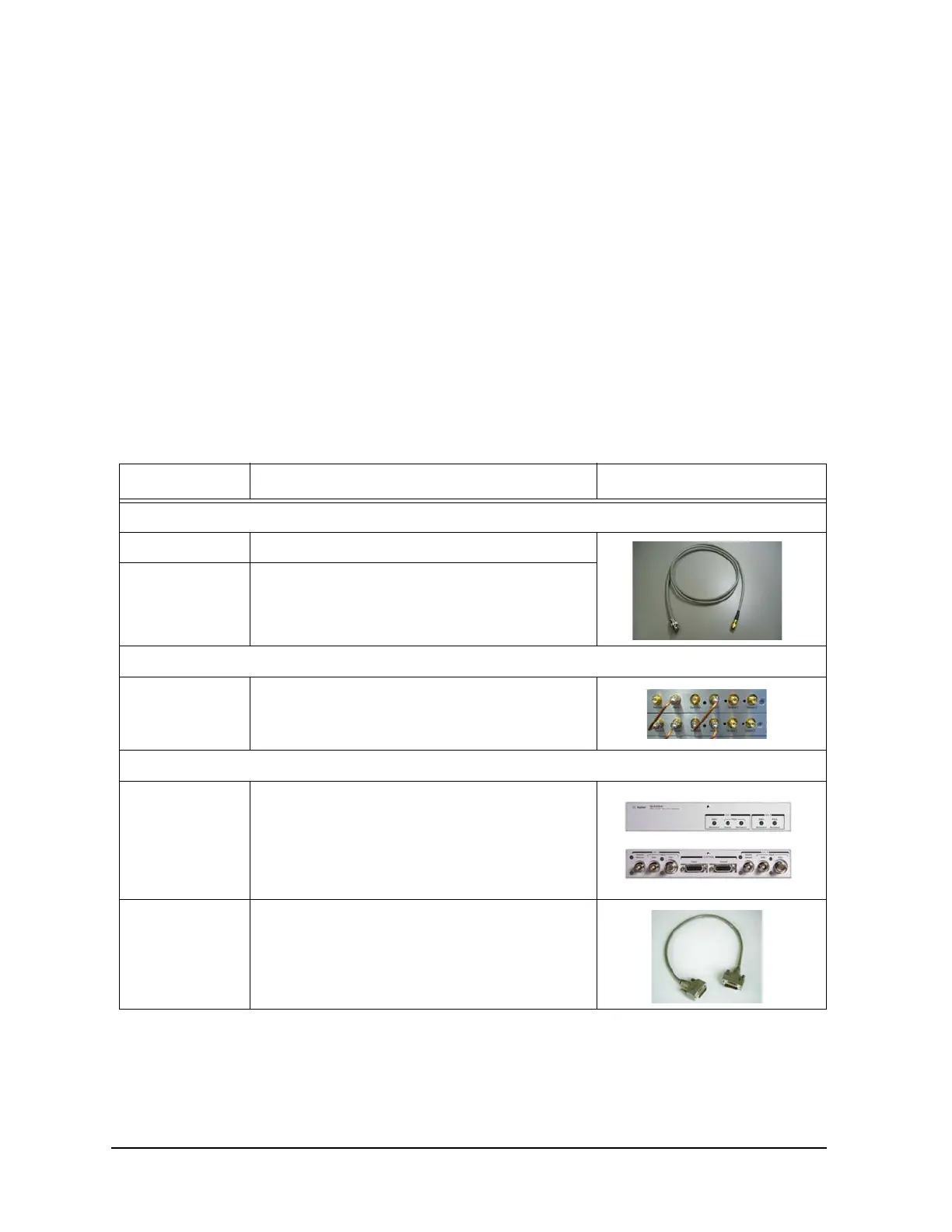

Table 2-3 HVSPGU accessories for B1500A semiconductor device analyzer
Model/Option Description Additional Information
SPGU cable
16493P-001 SPGU cable (SMA to BNC), 1.5 m
16493P-002 SPGU cable (SMA to BNC), 3 m
SPGU synchronous cable
16493Q-001 SPGU synchronous cable (SMA to SMA), 8 cm
SMU/PGU selector
16440A SMU PGU selector
One 16440A has 2 channels and each channel can
switch an SMU and a pulse generator.
16440A-003 Control cable, 40 cm
Connect between 16440A and 16445A
