Keysight B1500A Configuration and Connection Guide
2-5
B1500A Accessories
Accessories for the B1500A
NOTE Before connecting accessories to MFCMU
Turn the B1500A off before connecting the SCUU, the SCUU cable, or the CMU cable to
the MFCMU.
NOTE For the installation of the SCUU/GSWU and the connection to the DUT interface (probe
card, manipulators, and so on), contact your favorite prober vender. The prober vender will
have the solutions. Dimensions of the SCUU are 148 mm (W) × 75 mm (H) × 70 mm (D).
Dimensions of the GSWU are 33.2 mm (W) × 41.5 mm (H) × 32.8 mm (D).
NOTE About SCUU output cables
To perform capacitance measurements accurately, the cable length between DUT and the
SCUU output must be as short as possible.

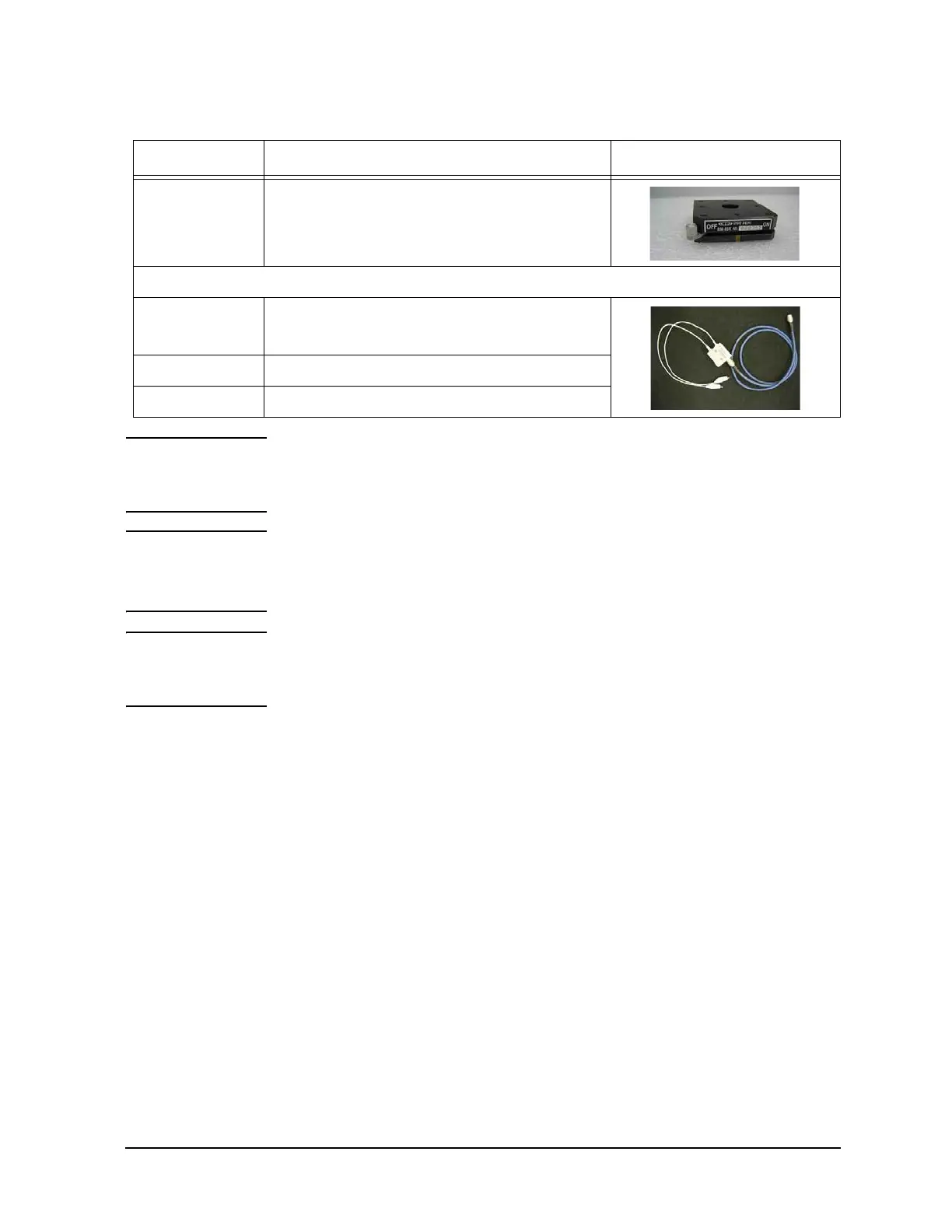

N1301A-110 SMU CMU unify unit (SCUU) magnet stand
GSWU (Guard switch unit)
N1301A-200 Guard switch unit (GSWU)
Two pin cables are furnished with GSWU
N1301A-201 Guard switch unit (GSWU) cable, 1 m
N1301A-202 Guard switch unit (GSWU) cable, 3 m
