Keysight B1500A Configuration and Connection Guide
2-13
B1500A Accessories
Accessories for the B1500A

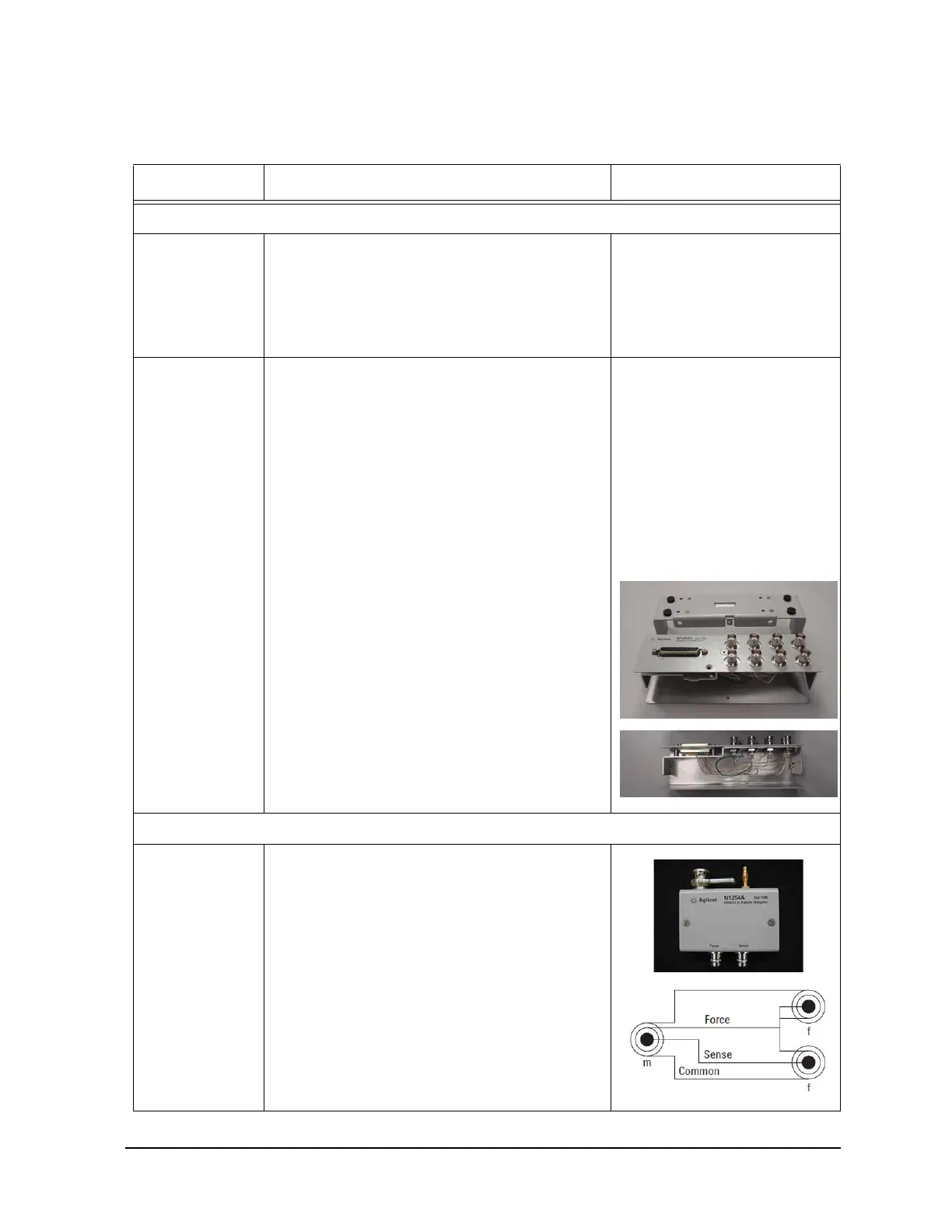

Table 2-7 Adapter and connectors
Model/Option Description Additional Information
Digital I/O accessories
N1253A-100 Digital I/O T-cable Digital I/O T-cable has 2 male
and 1 female connectors in order
to connect more than two units. In
order to connect three units, order
one N1253A-100 and one
16493G cable.
N1253A-200 Digital I/O BNC box Adapter for connecting Digital
I/O port with BNC trigger port of
other instruments. Box which has
8 BNC connectors for connecting
with BNC trigger port of other
instruments and 25 pin D-sub
connector for connecting this box
to B1500A. In order to use this
box for connection, need D-sub
25 pin straight cable (16493G)
and BNC cable.
Adapters/Accessories for DC parametric measurement instrument
N1254A-100 GNDU to Kelvin adapter
Adapter for converting GNDU connector to Kelvin
connector used only for B1500A and E5270 series.
The adapter which converts the GNDU connector to
2 triaxial connectors like connectors of SMU output.
This adapter can be used with only B1500A / E5270
Series. It does not fit with GNDU of 41501A/B.
