Keysight B1500A Configuration and Connection Guide
Connection Guide for Wafer Prober
WGFMU and RSU
• Magnet stand (16493R-802), 1 ea. per one RSU, optional
The magnet stand is useful for fixing RSU. See Figure x-x for dimensions.
• Triaxial cable (SMU to RSU), 1ea. per one RSU, optional
1.5 m, 3 m, cable (16494A-001 or 002)
The 16495H-001 or 16495J-001 connector plate is required and mounted on a shieldi
ng
box
to make connection to the RSU in the shielding box. Then the 80 cm or 40 cm
cable (16494A-003 or 004) is additionally required.
• 16495K-001 plate with cable holder, optional
Instead of using both 16493R-801 and 16495H/J-001.
NOTE Keysight 16493R-801 adapter
The 16493R-801 is used to connect the cable from WGFMU and the cable from RSU. See
Keysight B1530A Waveform Generator/Fast Measurement Unit User’s Guide for the
dimensions of adapter and for the opening and screw holes which are required to mount the
adapter on the shield box.

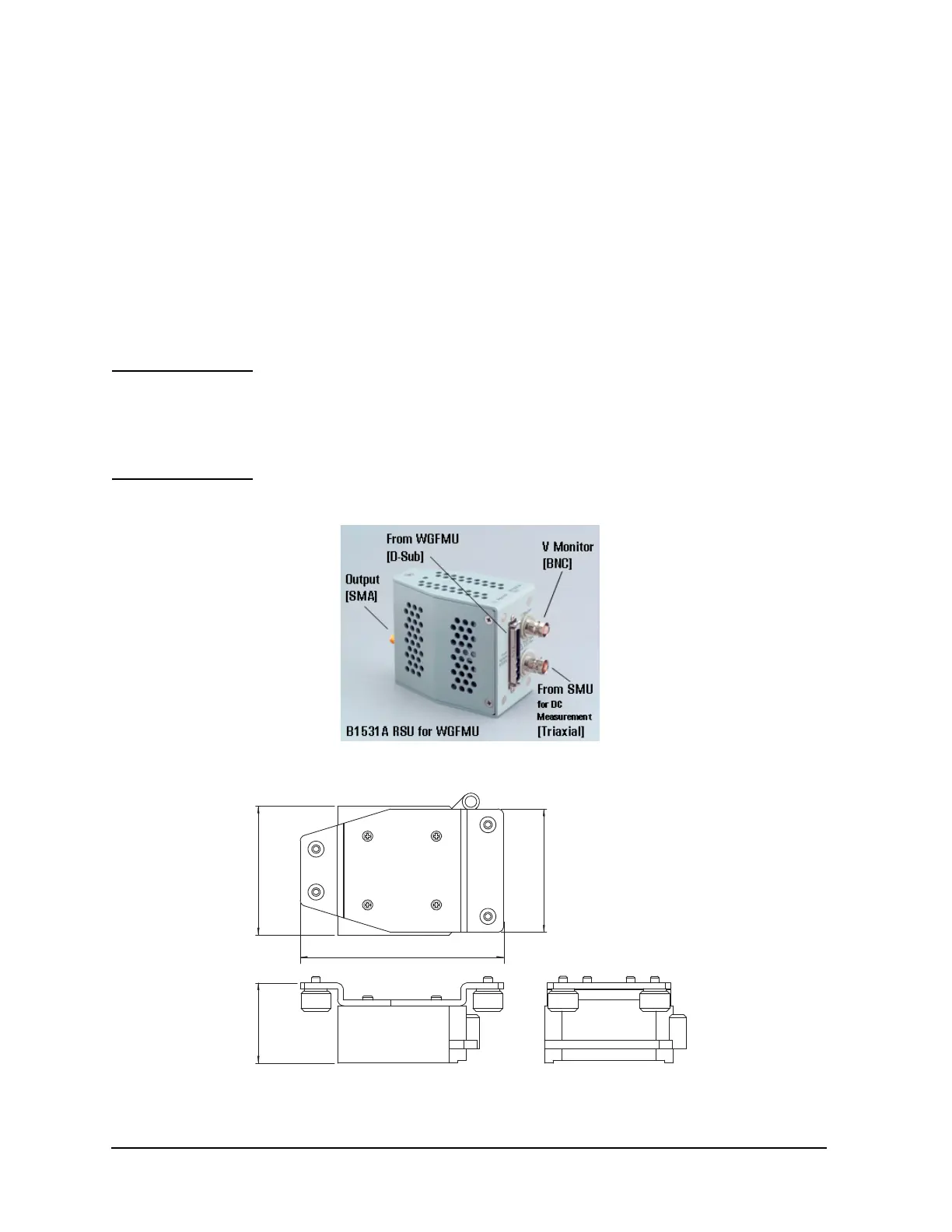

Figure 3-20 RSU terminal
Figure 3-21 16493R-802 Magnet Stand
