Keysight Technologies B1500A

3- 20 Keysight B1500A User’s Guide, Edition 14
Installation
Installing Accessories

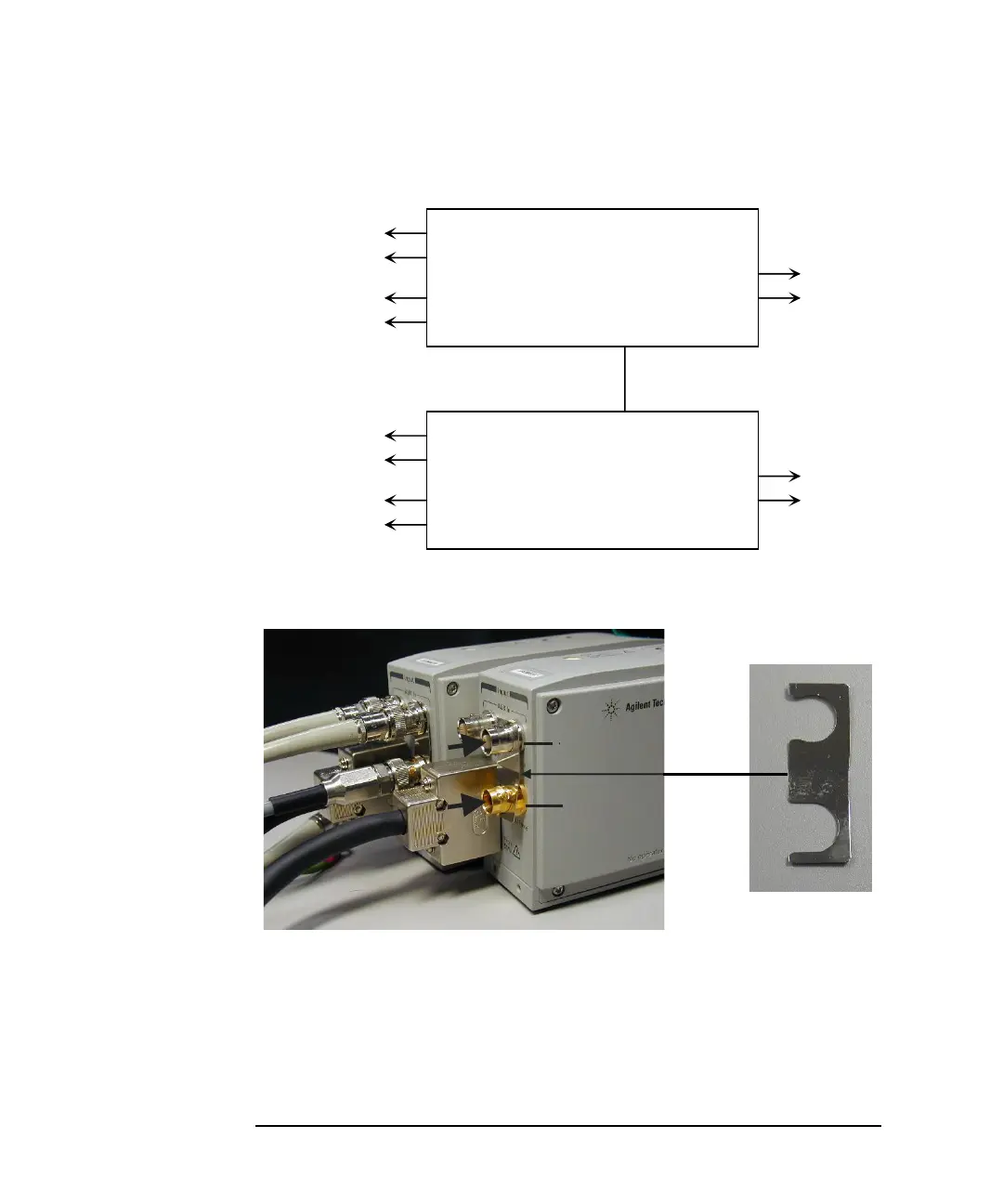

Figure 3-2 To Connect ASU
Figure 3-3 To Set Shorting Bar
To connect other
instrument to AUX
To connect the instrument other than the MFCMU or the 4284A/E4980A:
1. Turn the instrument off.
2. Connect the BNC cable from the ASU CMU-cur/AUX In terminal to the
instrument. Prepare an adapter if the instrument’s input/output connector is not
BNC.
CMU Return/AUX Common
To DUT
To CMU
Force
Hp
Hc
D-sub
To SMU
To CMU
Force
Lp
Lc
D-sub
To SMU
To DUT
CMU Return/AUX Common
Force/CMU/AUX
Sense
CMU-cur/AUX In
CMU-pot
Force
From SMU
ASU #1
CMU-cur/AUX In
CMU-pot
Force
From SMU
ASU #2
Force/CMU/AUX
Sense
CMU-cur/AUX In
SMU Force
Shorting bar
AUX
SMU Force
b / c
5 / 8
6 / 9
