Keysight M8040A High-Performance BERT Getting Started Guide 63
Using the M8040A High-Performance BERT 3
15 Enable the global outputs by clicking on the Output button present on
the Status Bar as shown in Figure 28 on page -63.

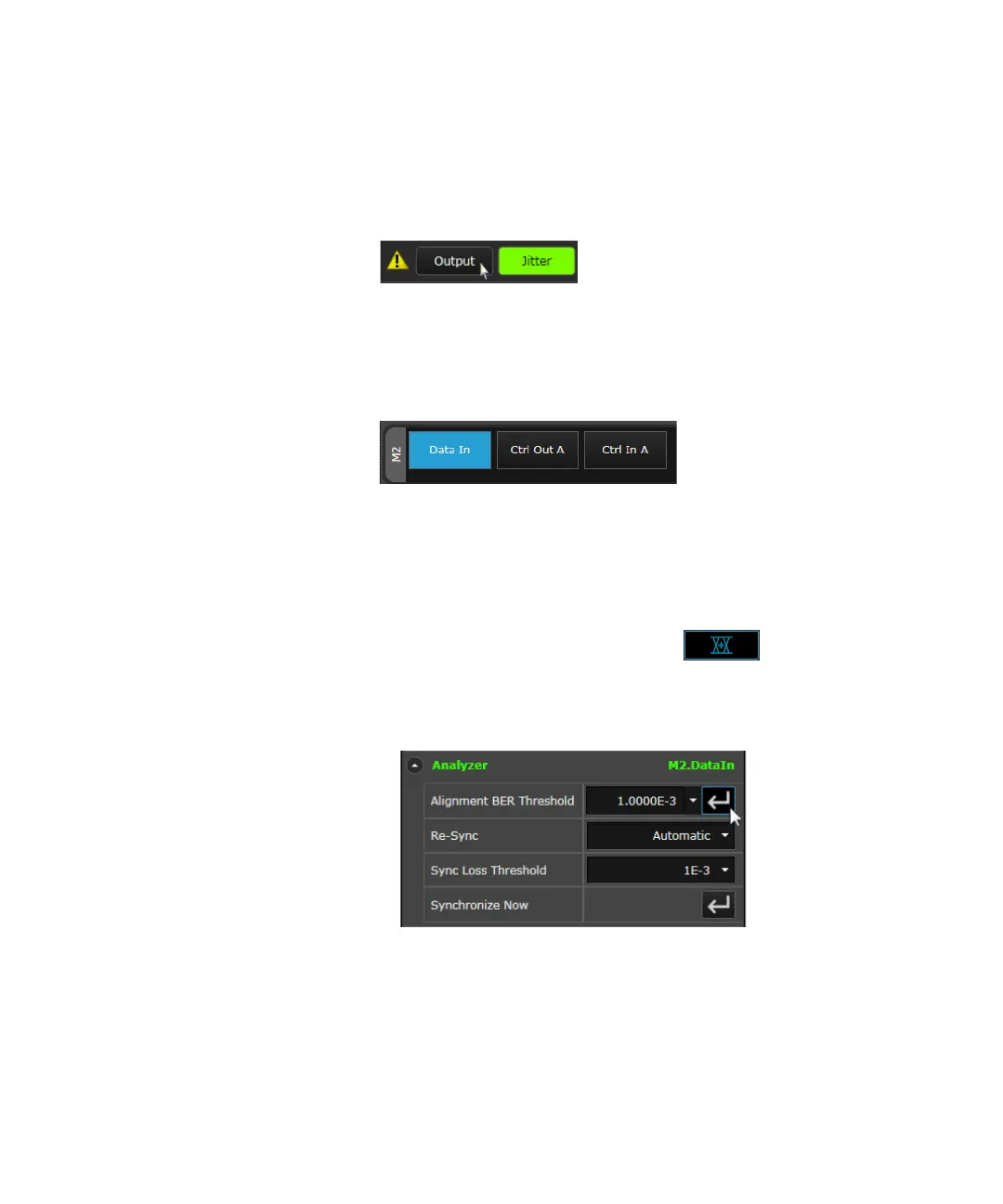

Figure 28 Enable global outputs
16 Click on Data In corresponding to the M8046A(M2) as shown in Figure
29 on page -63.
Figure 29 Select M8046A DataIn
17 On the Properties Window, expand Analyzer.
18 Click on the Alignment BER Threshold button to synchronize and align
the error analyzer as shown in Figure 30 on page -63.
Alternatively, you can also click on the Start BER
Threshold Auto Alignment button present on the Status Indicator to
synchronize and align the error analyzer.
Figure 30 Alignment BER Threshold
19 At any time you can click on the Hide Status Indicators Window icon
(bottom-left of display) to view/hide the module status including BER.
