198 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

14 Measurements

4 Press the Settings softkey to select the second analog channel source for the

phase measurement.

The default Phase settings measure from channel 1 to channel 2.

5 Press the Back/Up key to return to the Measurement Menu.

6 Press the Add Measurement softkey to make the measurement.

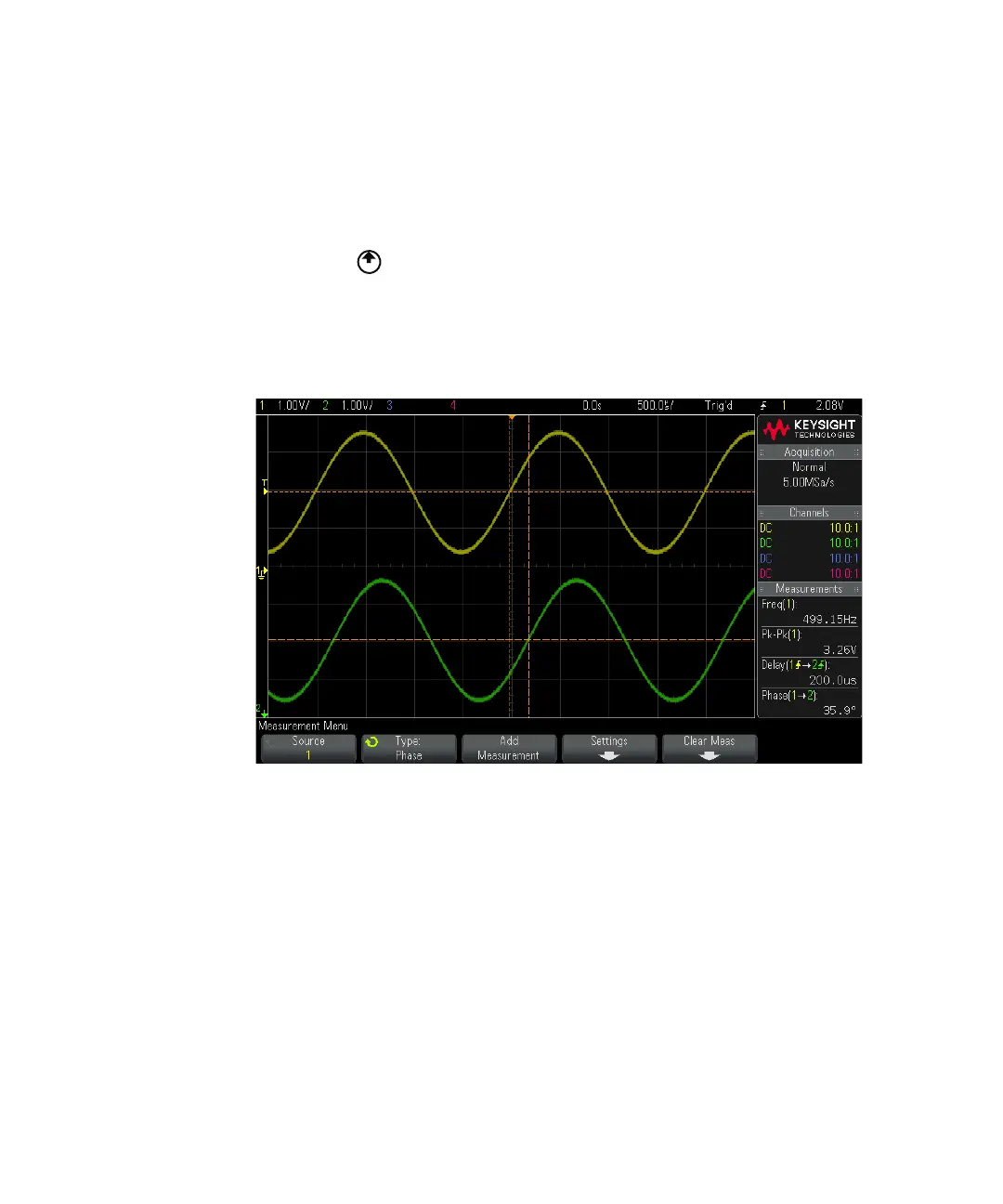

The example below shows a phase measurement between the channel 1 and the

math d/dt function on channel 1.

Measurement Thresholds

Setting measurement thresholds defines the vertical levels where measurements

will be taken on an analog channel or math waveform.
