26 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
1 Getting Started

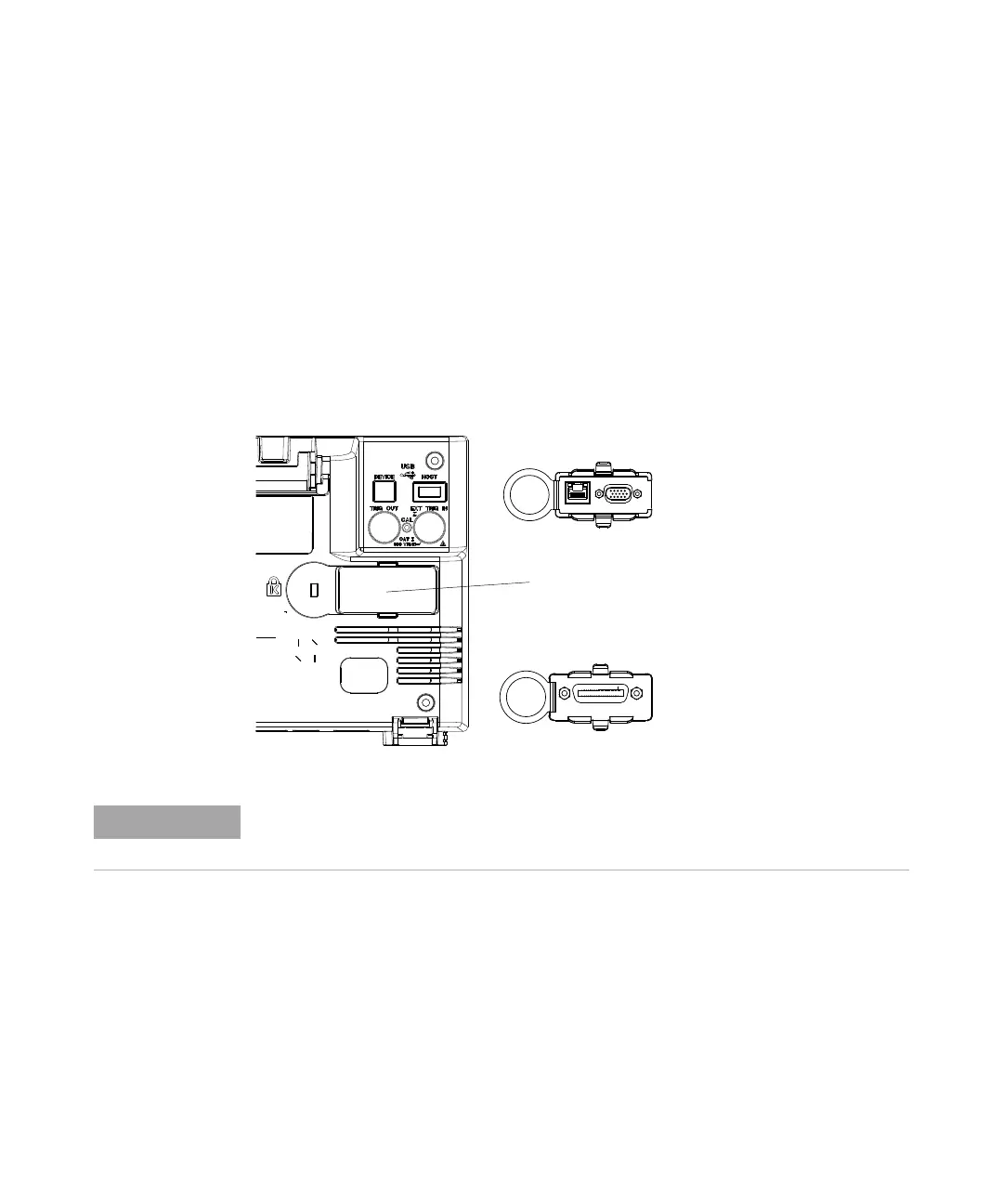

Install the Optional LAN/VGA or GPIB Module
If you need to install a DSOXLAN LAN/VGA module or a DSOXGPIB GPIB module,
perform this installation before you power on the oscilloscope.
1 If you need to remove a module before installing a different module, pinch the
module's spring tabs, and gently remove the module from the slot.
2 To install a module, slide the module into the slot on the back until it is fully
seated.
The module's spring tabs will latch into the slot, keeping the module in place.
Tilt the Oscilloscope for Easy Viewing
There are tabs under the oscilloscope's front feet that can be flipped out to tilt the
oscilloscope.
~
~
100 Watts MAX
100-240V, 50/60Hz
100-120V, 50/60/400Hz
WARNING: MAIN TAIN
GROUND TO A VOID
ELECTRIC SHOCK
LAN/VGA Module
GPIB Module
Module Slot
The LAN/VGA or GPIB module must be installed before powering on the oscilloscope.
