Getting Started 1

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 27

Power-On the Oscilloscope

Power

Requirements

Line voltage, frequency, and power:

• ~Line 100-120 Vac, 50/60/400 Hz

• 100-240 Vac, 50/60 Hz

• 100 W max

Ventilation

Requirements

The air intake and exhaust areas must be free from obstructions. Unrestricted air

flow is required for proper cooling. Always ensure that the air intake and exhaust

areas are free from obstructions.

The fan draws air in from the left side and bottom of the oscilloscope and pushes it

out behind the oscilloscope.

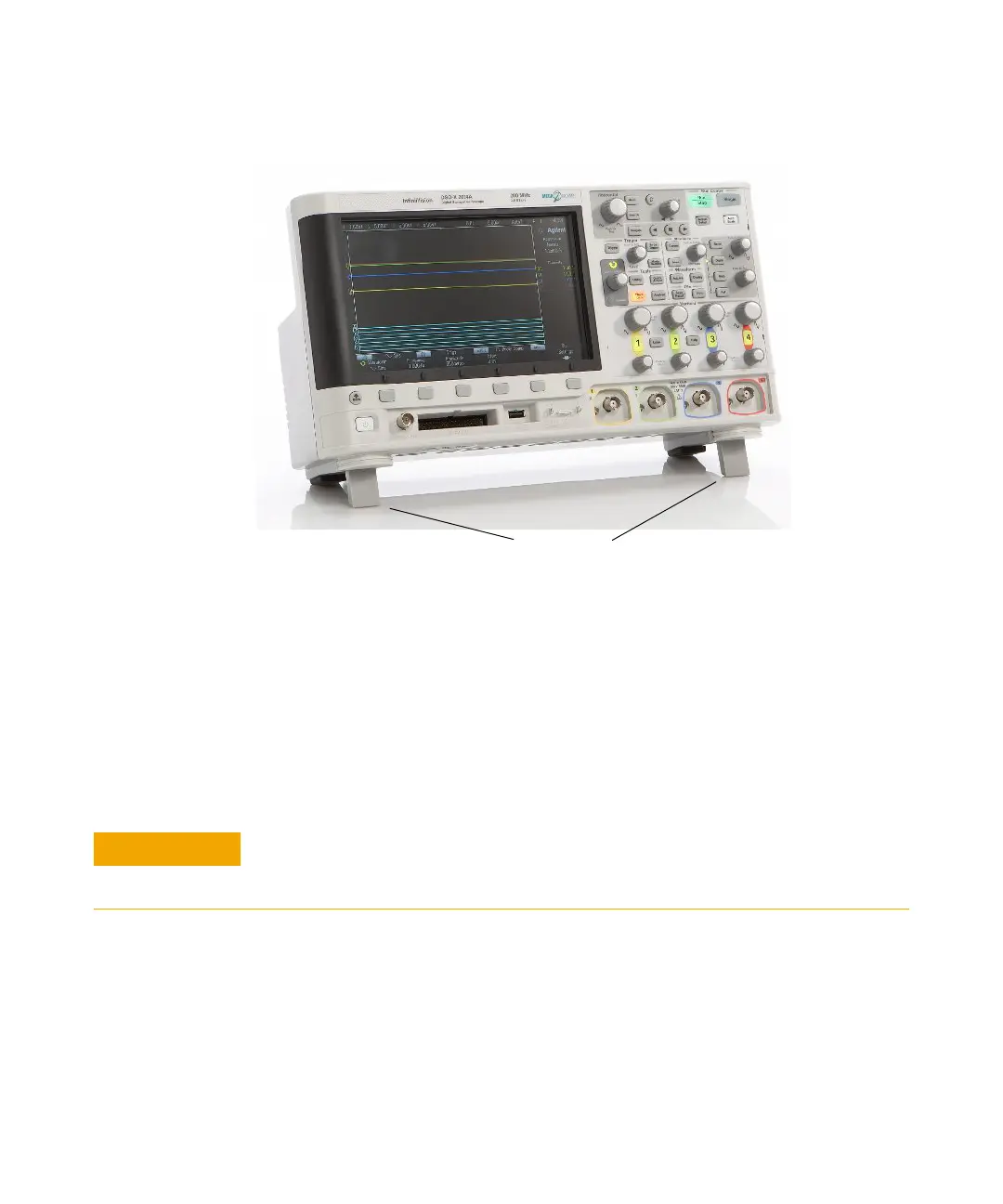

Flip-Out Tabs

CAUTION

This instrument has auto-ranging line voltage input. Be sure the supply voltage is within

the specified range and voltage fluctuations do not to exceed 10 percent of the nominal

supply voltage.
