CAN/LIN Triggering and Serial Decode 23
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 305
CAN Serial Decode
To set up the oscilloscope to capture CAN signals, see “Setup for CAN Signals" on
page 301.
To set up CAN serial decode:

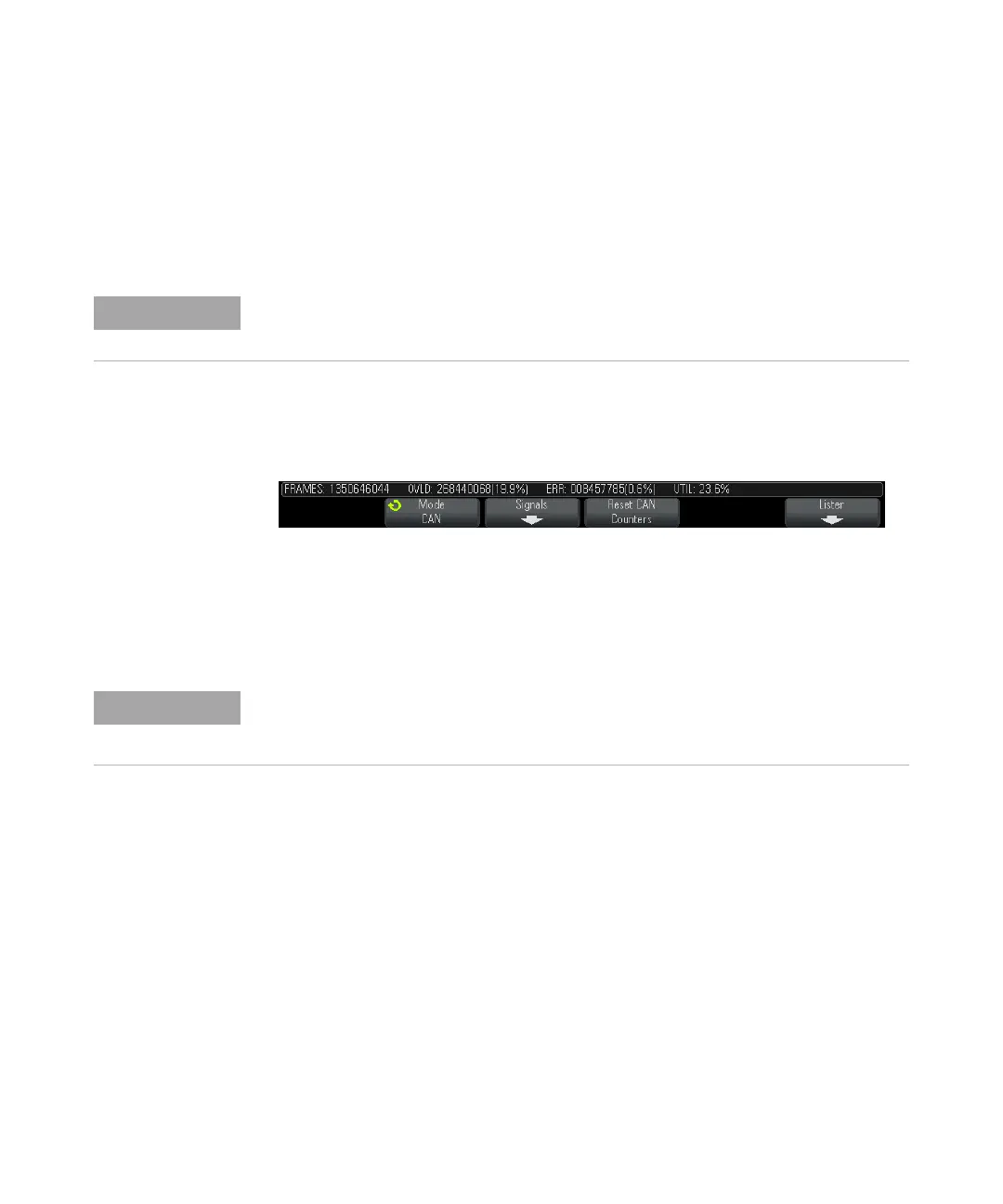

1 Press [Serial] to display the Serial Decode Menu.
2 If the decode line does not appear on the display, press the [Serial] key to turn it
on.
3 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode
data.
You can use the horizontal Zoom window for easier navigation of the decoded data.
See Also • “Interpreting CAN Decode" on page 306
• “CAN Totalizer" on page 307
• “Interpreting CAN Lister Data" on page 308
• “Searching for CAN Data in the Lister" on page 309
For CAN triggering set up see “CAN Triggering" on page 303.
If the setup does not produce a stable trigger, the CAN signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode softkey
to set the trigger mode from Auto to Normal.
