220 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
17 Waveform Generator

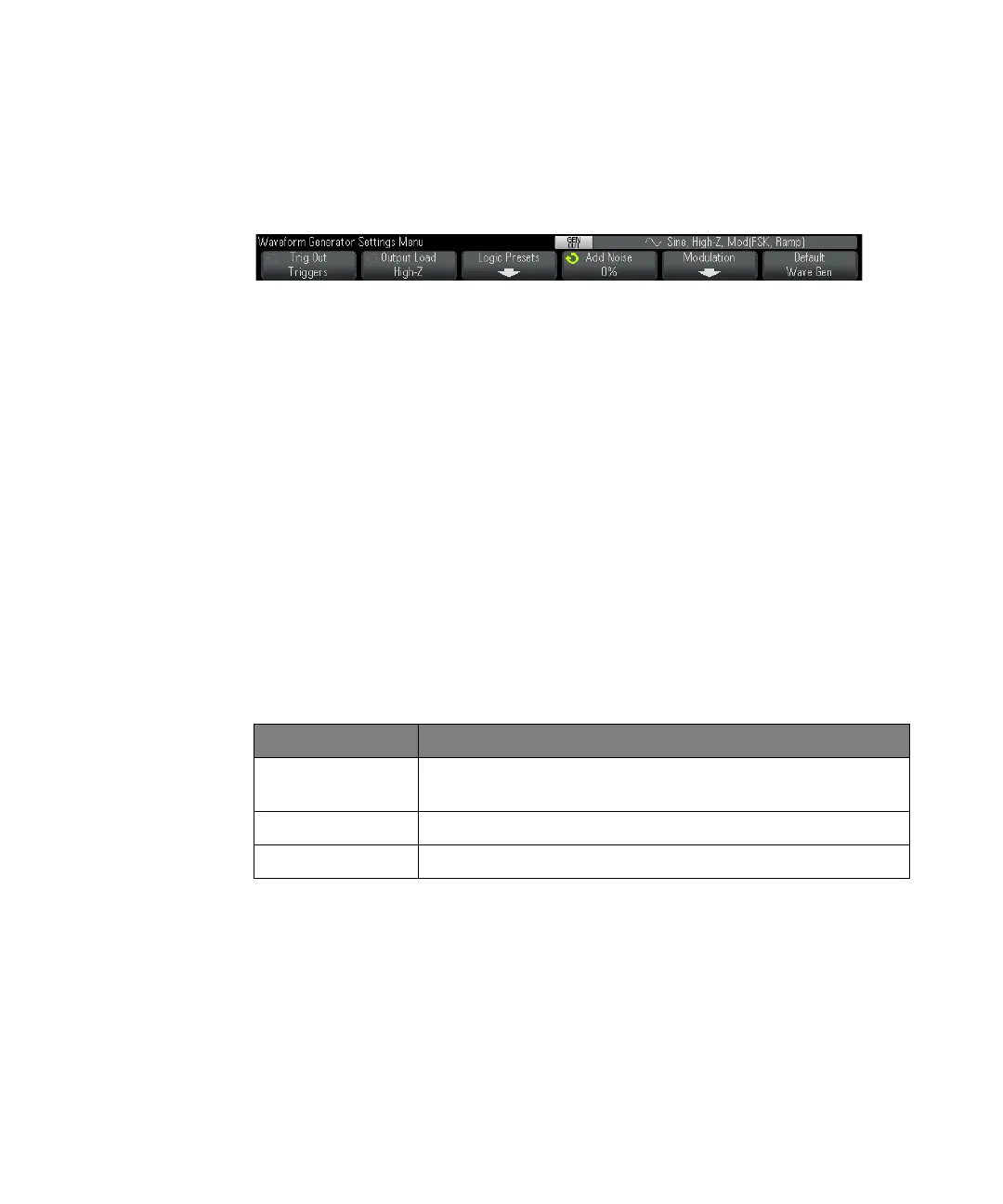

The Settings softkey opens the Waveform Generator Settings Menu which lets you
make other settings related to the waveform generator.
See:
• “To output the waveform generator sync pulse" on page 220
• “To specify the expected output load" on page 220
• “To use waveform generator logic presets" on page 221
• “To restore waveform generator defaults" on page 227
To output the waveform generator sync pulse
1 If the Waveform Generator Menu is not currently displayed on the
oscilloscope's softkeys, press the [Wave Gen] key.
2 In the Waveform Generator Menu, press the Settings softkey.
3 In the Waveform Generator Settings Menu, press the Trig Out softkey and turn
the Entry knob to select Waveform Generator Sync Pulse.
To specify the expected output load
1 If the Waveform Generator Menu is not currently displayed on the
oscilloscope's softkeys, press the [Wave Gen] key.
2 In the Waveform Generator Menu, press the Settings softkey.
Waveform Type Sync Signal Characteristics
All waveforms except
DC and Noise
The Sync signal is a TTL positive pulse that occurs when the waveform
rises above zero volts (or the DC offset value).
DC N/A
Noise N/A
