98 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
6 Digital Channels
To display digital channels as a bus
Digital channels may be grouped and displayed as a bus, with each bus value
displayed at the bottom of the display in hex or binary. You can create up to two

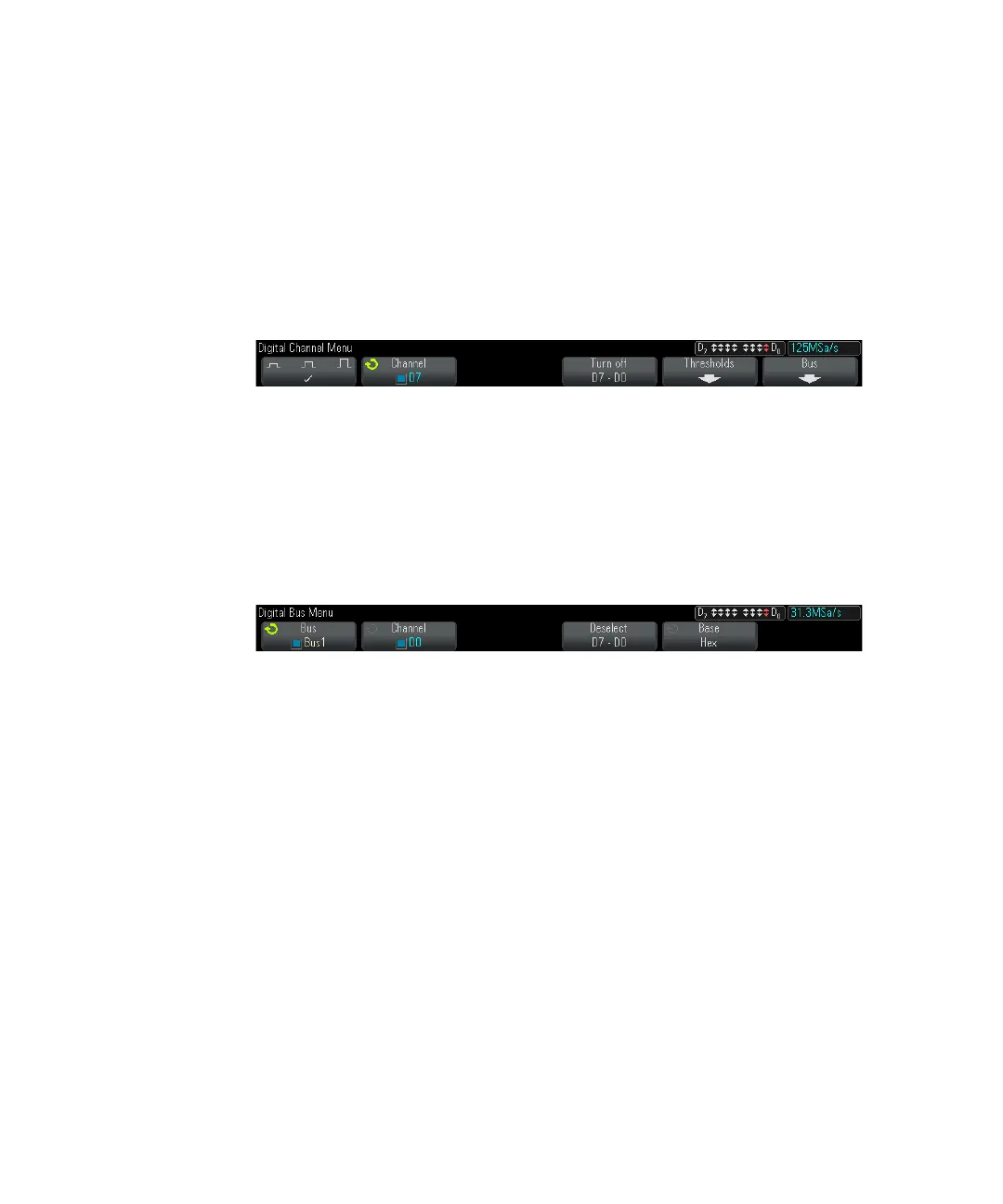

buses. To configure and display each bus, press the [Digital] key on the front panel.
Then press the Bus softkey.
Next, select a bus. Rotate the Entry knob, then press the Entry knob or the
Bus1/Bus2 softkey to switch it on.
Use the Channel softkey and the Entry knob to select individual channels to be
included in the bus. You can rotate the Entry knob and push it or push the softkey
to select channels. You can also press the Select/Deselect D7-D0 softkey to include
or exclude groups of eight channels in each bus.
If the bus display is blank, completely white, or if the display includes "...", you
need to expand the horizontal scale to allow space for the data to be shown, or
use the cursors to display the values (see “Using cursors to read bus values" on
page 99).
The Base softkey lets you choose to display the bus values in hex or binary.
The buses are shown at the bottom of the display.
