• Use the Clear softkey to delete all annotation characters.

• Press OK to save the annotation edits.

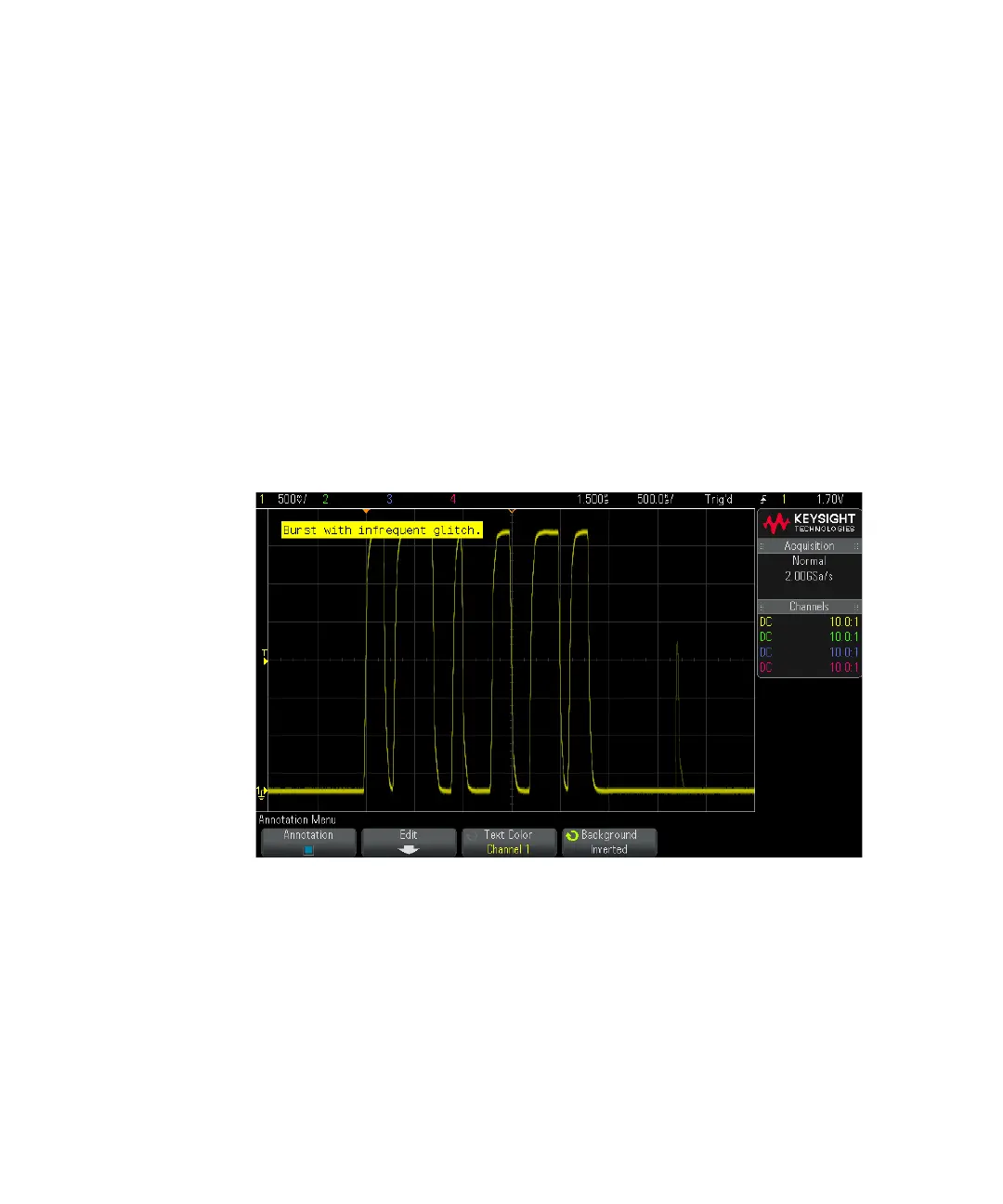

6 Press the Text Color softkey and turn the Entry knob to select the annotation

color.

You can choose white, red, or colors that match analog channels, digital

channels, math waveforms, reference waveforms, or markers.

7 Press the Background softkey and turn the Entry knob to select the annotation

background:

• Opaque — the annotation has a solid background.

• Inverted — the annotation's foreground and background colors are switched.

• Transparent — the annotation has a transparent background.

See Also • “To save BMP or PNG image files" on page 231

• “To print the oscilloscope's display" on page 241
