282 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

21 Web Interface

When accessing the password protected oscilloscope, the user name is the IP

address of the oscilloscope.

To reset the

password

Do one of these things to reset the password:

• Using the keys on the front panel of the oscilloscope, press [Utility] > I/O > LAN

Reset.

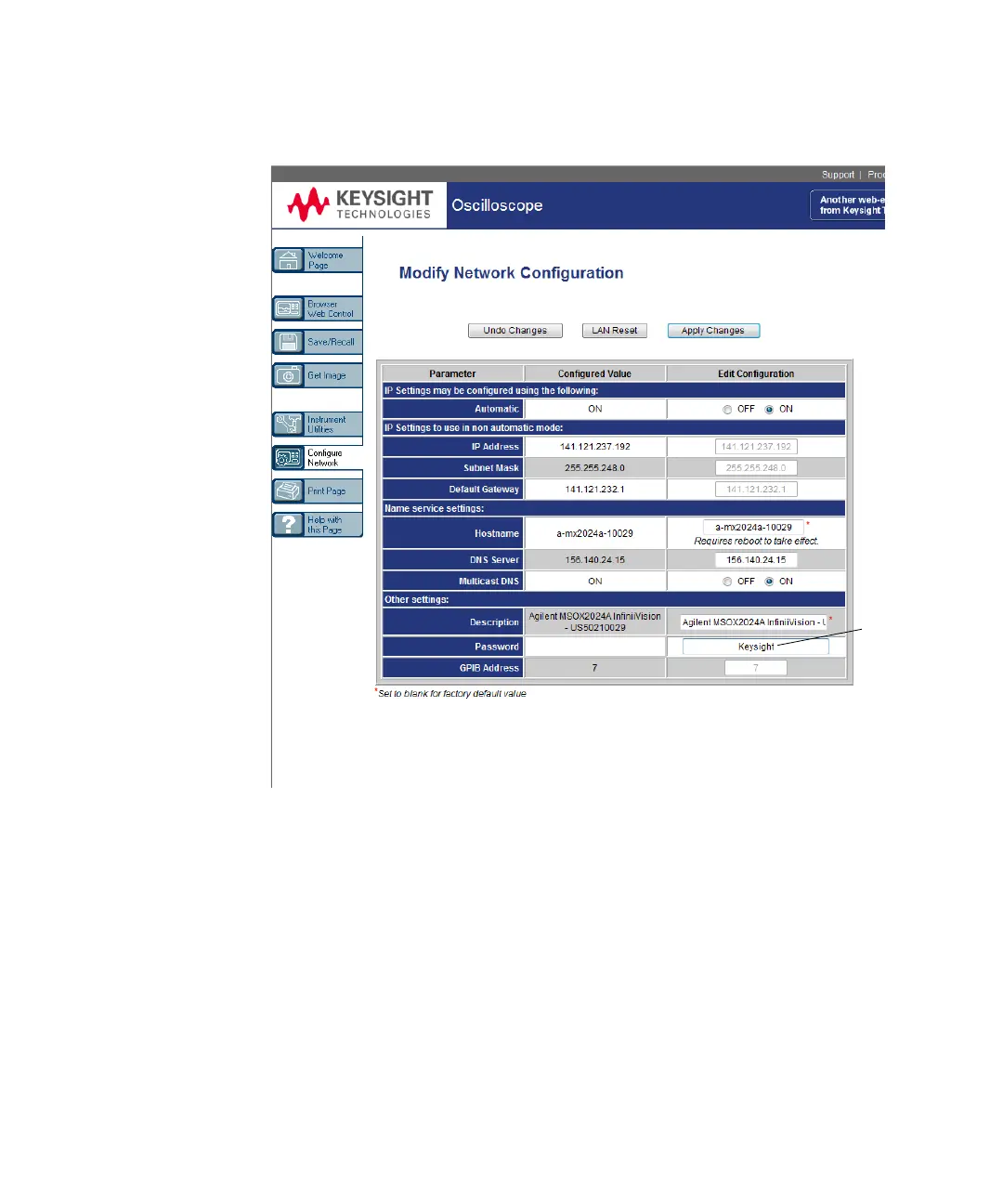

• Using the web browser select the Configure Network tab, select Modify

Configuration, erase the Password, and select Apply Changes.

Enter

password
