Measurement Triggering
l Capture pre-trigger data, if desired
l Select the trigger source
l Initiate the acquisition system
l Trigger the measurement
l Fetch the measurement
l Multiple trigger events per measurement
Use the acquisition trigger system to synchronize measurements with a trigger signal from the
selected trigger source. Use FETCh commands to return measurement information from the acquired
data.

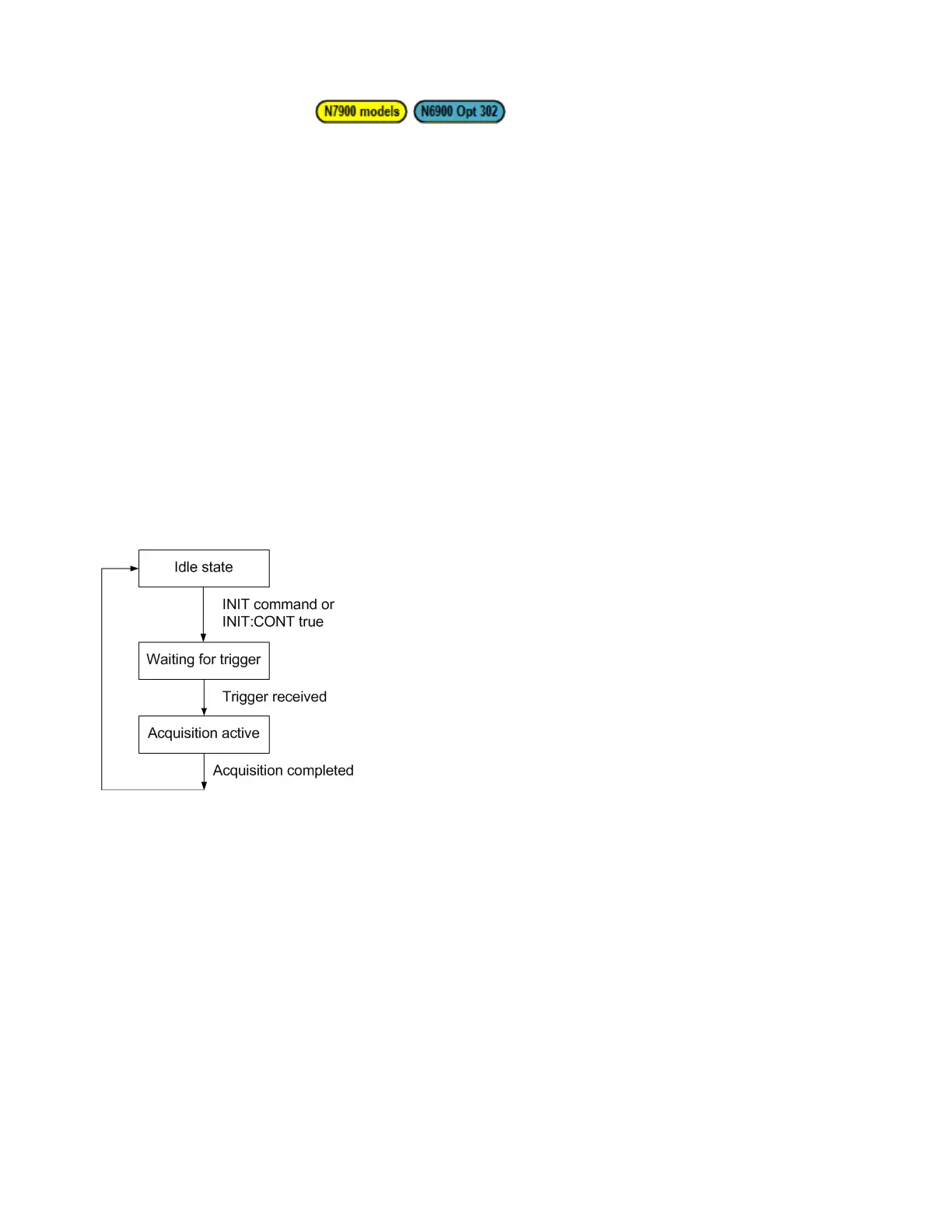

The following figure illustrates the measurement acquisition process. This process applies to both
measurement triggers and external data logging. For an overview of the trigger system, refer to
Trigger Overview.
Capture pre-trigger data, if desired
The measurement system lets you capture data before, after, or at the trigger signal. As shown in the
following figure, you can move the block of data being read into the acquisition buffer with reference to
the trigger. This allows pre- or post-trigger data sampling.
Keysight N6900/N7900 Series Operating and Service Guide 137
4 Using the Advanced Power System
