Interface Connections
GPIB Connections
USB Connections
LAN Connections - site and private
Digital Port Connections
This section describes how to connect to the various communication interfaces on your APS. For
further information about configuring the remote interfaces, refer to Remote Interface Configuration.
If you have not already done so, install the Keysight IO Libraries Suite from the Automation-Ready CD
that is shipped with your instrument.
For detailed information about interface connections, refer to the Keysight
USB/LAN/GPIB Interfaces Connectivity Guide, located on the Automation-Ready
CD.
GPIB Connections

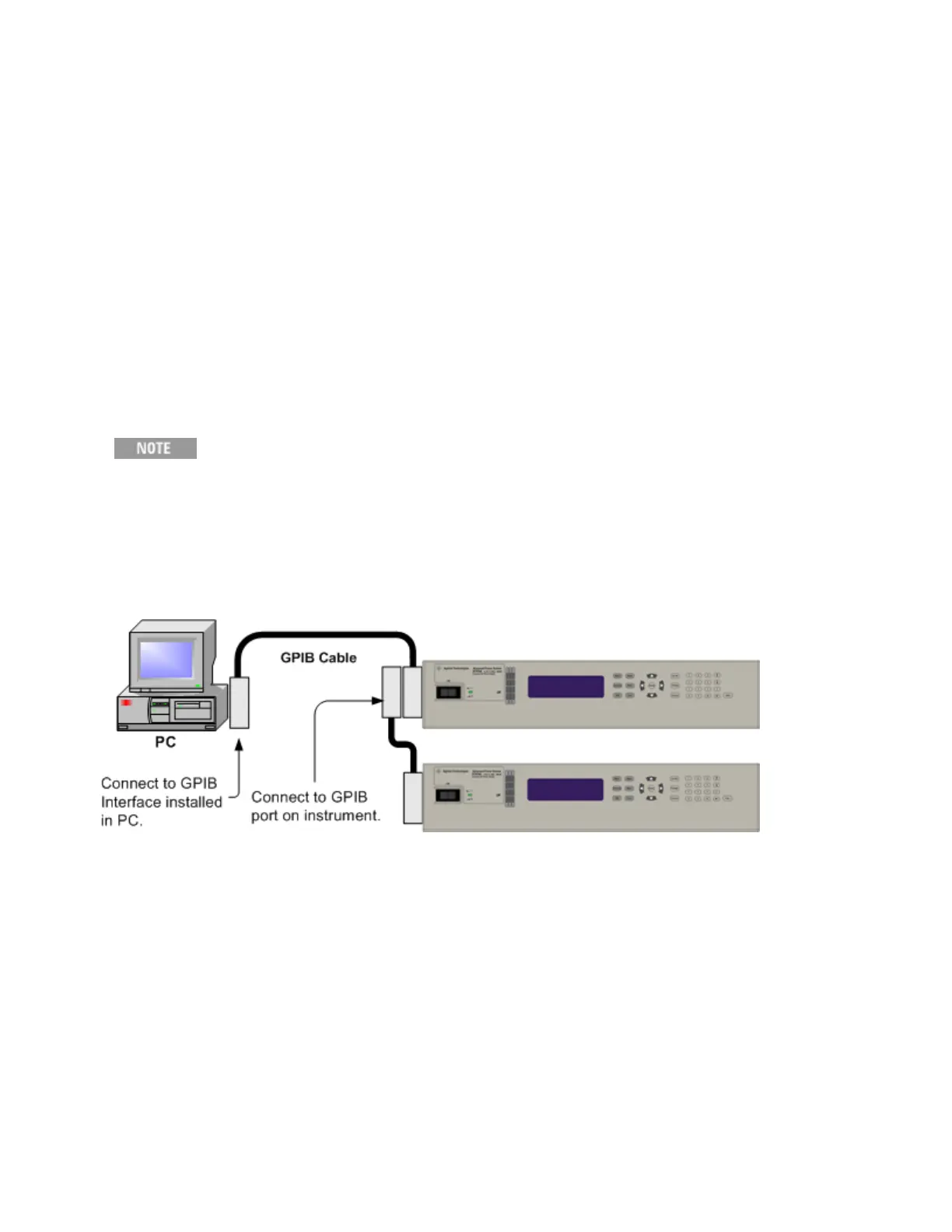

The following figure illustrates a typical GPIB interface system.
1. Connect your instrument to the GPIB interface card using a GPIB interface cable.
2. Use the Connection Expert utility of the Keysight IO Libraries Suite to configure the GPIB card’s
parameters.
3. You can now use Interactive IO within the Connection Expert to communicate with your instru-
ment, or you can program your instrument using the various programming environments.
USB Connections
The following figure illustrates a typical USB interface system.
2 Installing the Instrument
86 Keysight N6900/N7900 Series Operating and Service Guide
