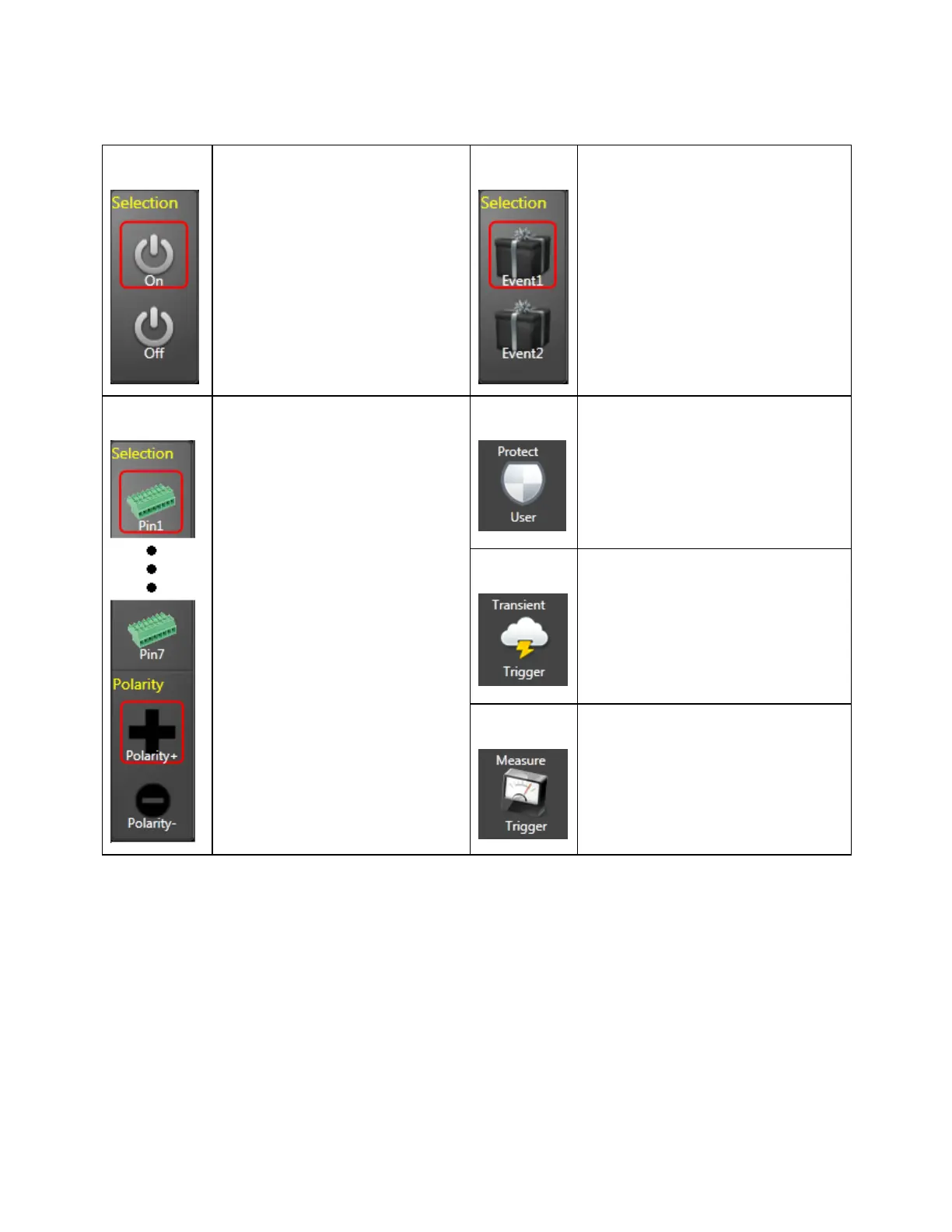

Target Icon Descriptions
Output
Icons
When the signal is true
Turns the output state on
Turns the output state off
User
Icons
When the signal is true
Selects the User1 status bit
Selects the User2 status bit
Digital
Icons
Digital output pins can gen-
erate a true signal
A digital port pin (from 1 to 7)
Specifies a positive transition of the
signal
Specifies a negative transition of
the signal
Protection
Icon
When the signal is true
Generates User-defined protection
Transient
Icon
When the signal is true
Generates a transient trigger (for a
step, list, or Arb )
Measure
Icon
When the signal is true
Generates a measurement trigger
Signal Routing Examples
The following examples illustrate some simple signal routings.
Example 1 Create a digital signal on pin1 of the digital port that is true whenever the output is in
positive or negative current limit:
1. Select the Status icon from the Source list to place it onto the work area. Select CL- from the
Status dropdown list.
2. Select another Status icon from the Source list to place it onto the work area. Select CL+ from the
Status dropdown list.
