Common Characteristic All Models
Typical Weight RP7931A, RP7932A, RP7941A, RP7942A: 60 lbs. (27.3 kg)
RP7933A, RP7935A, RP7936A, RP7943A, RP7945A, RP7946A: 70 lbs. (31.8 kg)
Output Impedance Graphs

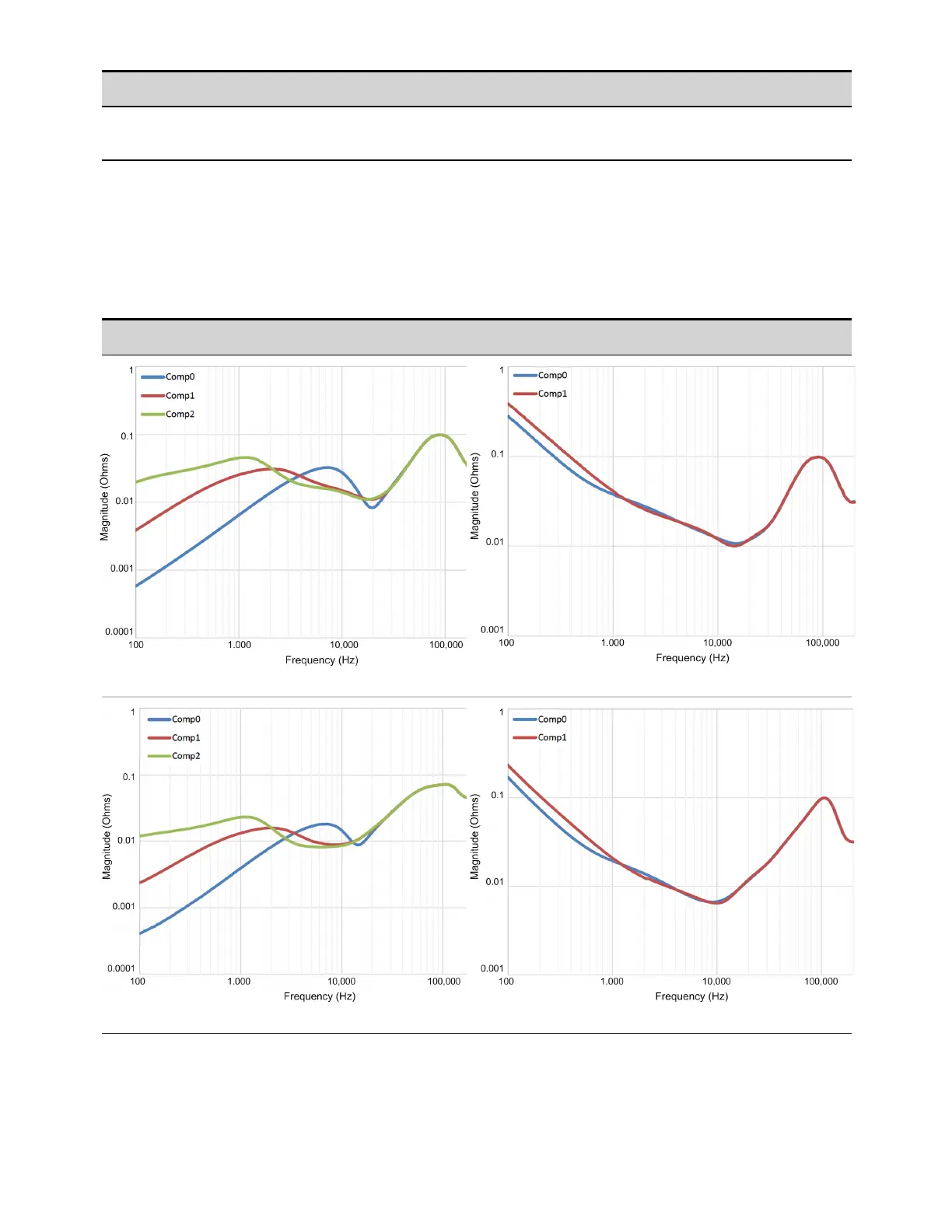

The following graphs show the small signal output impedance of the compensation modes for voltage
priority and current priority modes. Impedances are captured when measuring at the load leads 6
inches away from the bus bars.
Voltage Priority Mode (20 V units) Current Priority Mode (20 V units)
20 V, 5 kW unit (@ 10 V, 200 A 6" leads, local sense)
20 V, 5 kW unit (@ 10 V, 200 A,6"leads)
20 V, 10 kW unit (@ 10 V, 400 A, 6" leads, local sense) 20 V, 10 kW unit (@ 10 V, 400 A, 6" leads)
