NPLC @60Hz Number of averaged points Voltage Measurement
% of range added to spec.
Current Measurement
% of range added to spec.
1 3255 0 0
0.6 1953 0.00013% 0.0005%
0.1 325 0.0005% 0.004%
0.06 195 0.0009% 0.005%
0.031 100 0.0015% 0.008%
0.010 33 0.0025% 0.0015%
0.006 20 0.004% 0.020%
0.003 10 0.006% 0.03%
0.0003 1 0.02% 0.10%
Excessive Dynamic Protection
For the high current models, EDP does not limit the allowable programmable waveform amplitude or
frequency. You can program a full scale square wave at a maximum frequency of 97.6 kHz indefinitely.

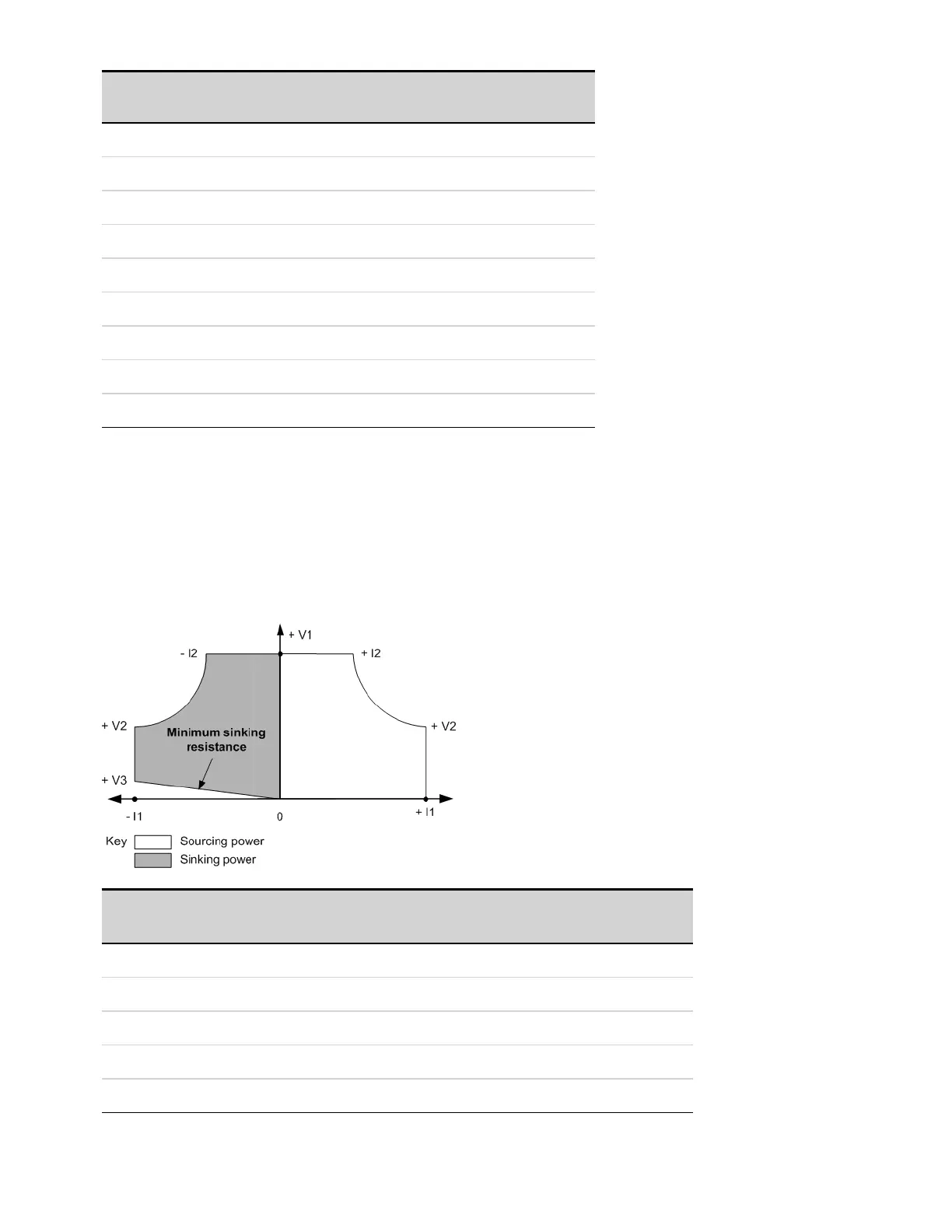

Output Quadrants
Model + V1 + V2 + V3 +/- I1 +/- I2 Minimum sink
resistance
RP7931A /RP7941A 20 V 12.5 V 0.5 V 400 A 250 A 1.25 mΩ
RP7933A /RP7943A 20 V 12.5 V 0.5 V 800 A 500 A 625 µΩ
RP7932A /RP7942A 80 V 40 V 0.75 V 125 A 62.5 A 6 mΩ
RP7935A /RP7945A 80 V 40 V 0.75 V 250 A 125 A 3 mΩ
RP7936A /RP7946A 160 V 80 V 1.5 V 125 A 62.5 A 12 mΩ
1 Quick Reference
50 Keysight RP7900 Series Operating and Service Guide
