l Disconnect one of the 3-pin connector plugs.

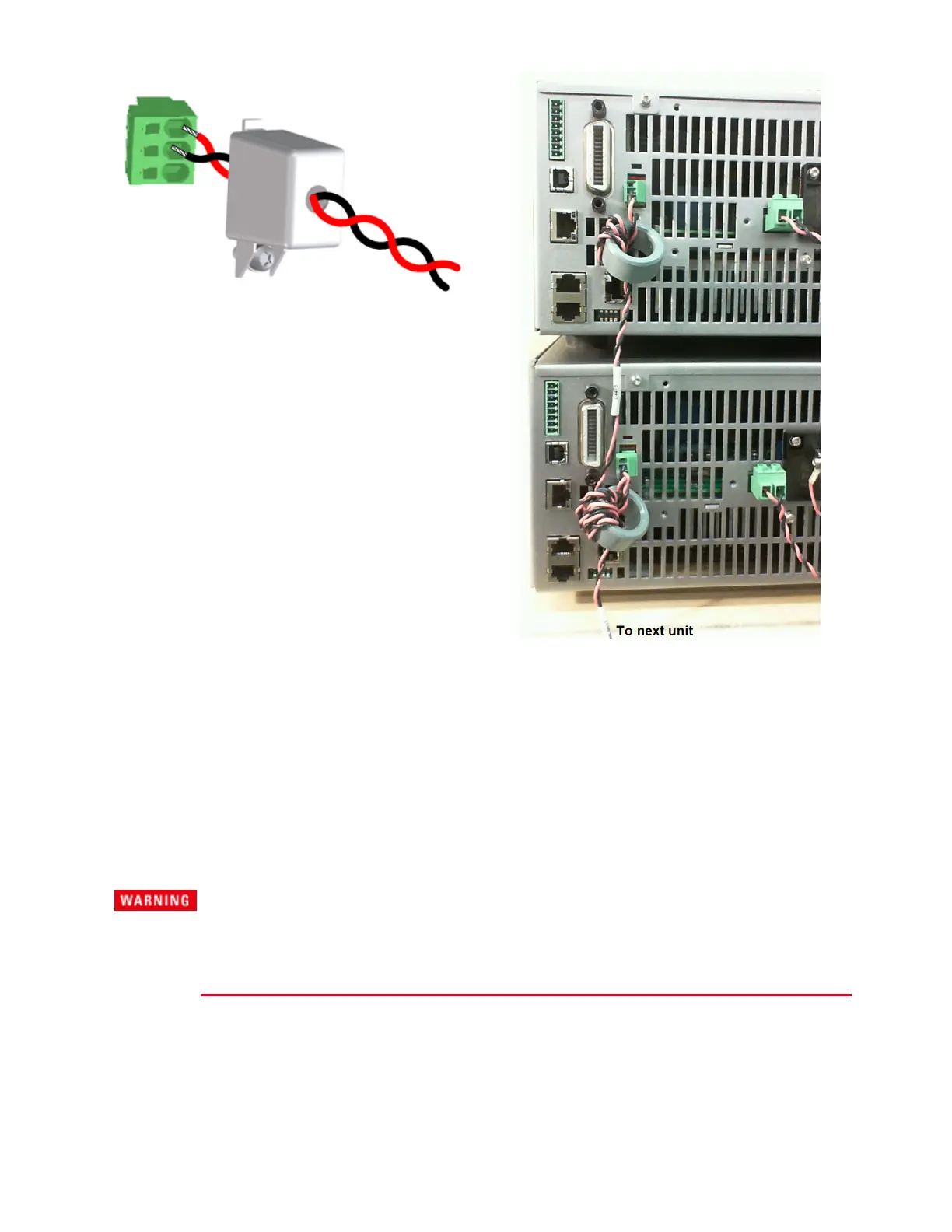

l For EMI reduction, loop the sharing cable through
the ferrite 4 times (referenced from the inside of
the core). Each end of the sharing cable must
have a core installed.
l When using multiple sharing cables, both sharing
cables must loop through the core. Refer to the
second core in the figure.
l Install the safety covers over the sharing cable as
shown above.
l Re-connect the connector plug that you removed.
l Plug the sharing cable connector into the back of
the unit.
l Connect the safety cover to the unit.
Cables are shown without covers for clarity.
Refer to Interface Connections for information about connecting the ESD cover.
Series Connections
Series connections are not permitted under any circumstances.
SHOCK HAZARD/LETHALVOLTAGES Series connections are not permitted for many
reasons. One of the primary reasons for models RP795xA and RP796xA, for example, is
that floating voltages cannot exceed the isolation ratings given in the RP795xA,
RP796xA characteristics tables.
2 Installing the Instrument
82 Keysight RP7900 Series Operating and Service Guide
