Connecting Over LAN
Selecting the LAN network type
You can connect and configure your 34980A for Site LAN or Isolated (non-site)
LAN operation.
–A Site LAN network is defined as a local area network (LAN) in which
computers and LAN-enabled instruments are connected to a site LAN
(workgroup LAN, Intranet, or enterprise LAN) via optional routers, hubs, and/or
switches.
–An Isolated LAN network is defined as a local area network (LAN) in which
computers and LAN-enabled instruments are not
connected to a site LAN. Use
the crossover cable provided with the 34980A to make a direct connection
between the 34980A and your computer. Crossover cables are also supported
by many newer LAN switches or routers.
Example
Switch
Connection
PC
Ethernet Hub or Switch
Example
Direct
Connection
PC
To Site LAN
To Site LAN

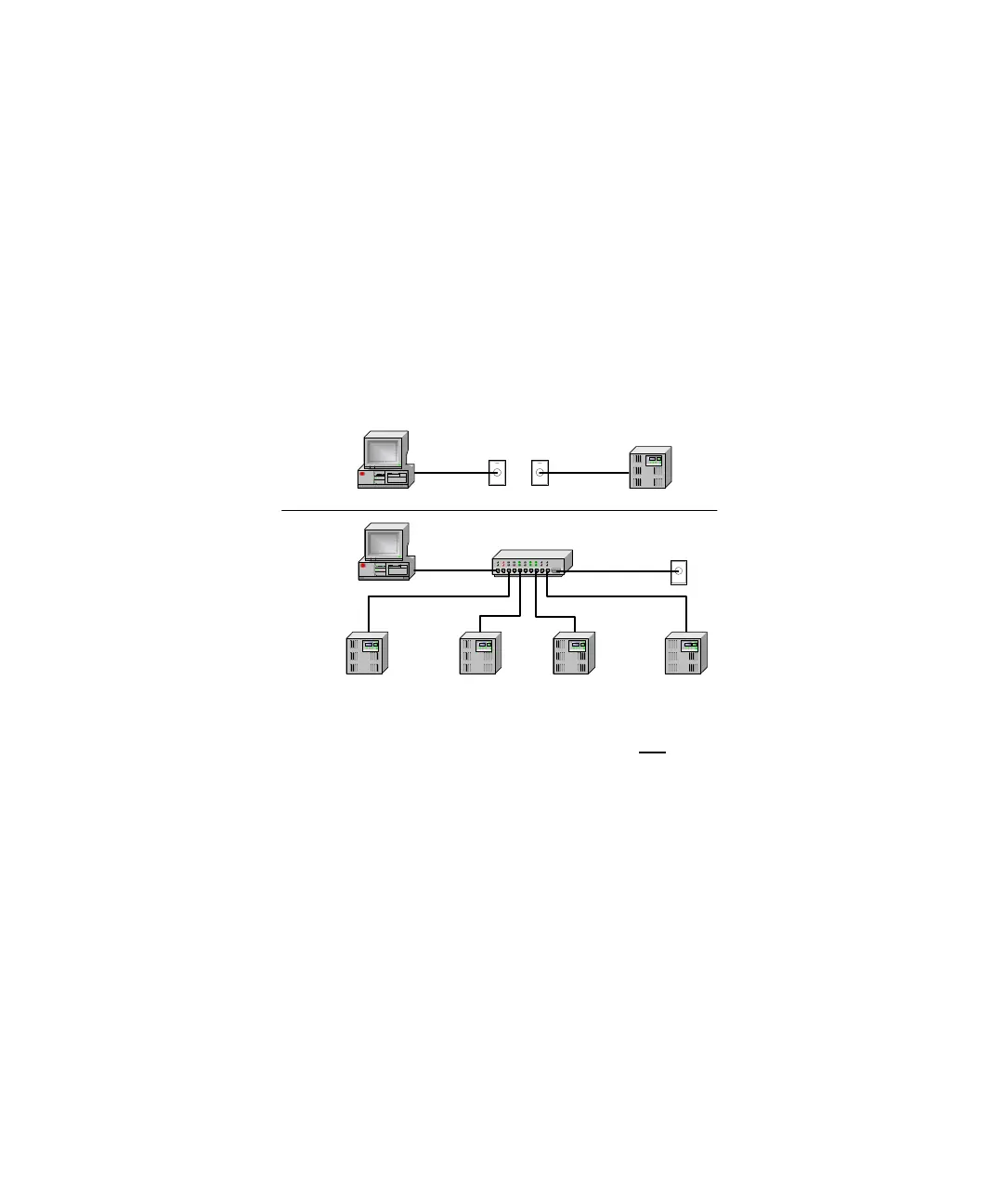

Typical Site LAN Networks
Instrument
Instrument Instrument Instrument Instrument
To Next Page
