2 Getting Started
90 Keysight 34980A Mainframe User’s Guide

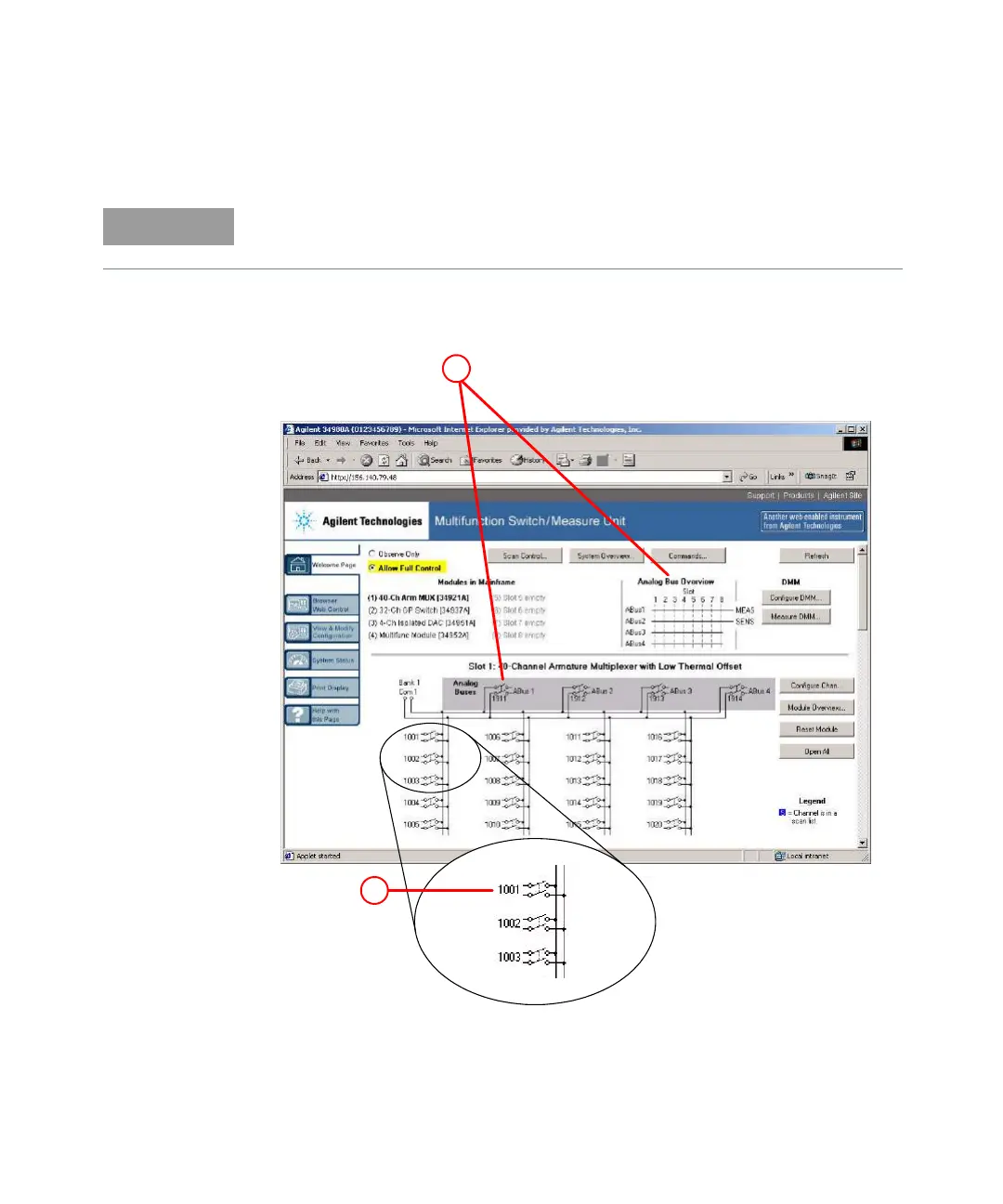

Closing and Opening Channel Relays
1 To close a channel, left-click directly on the graphic of the desired relay.
To open a closed channel, click again on the relay graphic.
2 You can also open and close the four Analog Bus relays by left-clicking the
graphics of these relays. The Analog Bus Overview display located near the
top of the window shows the slot-by-slot status of the four Analog Buses.
You must be in the Allow Full Control mode to close and open channels.
