Ramp
Back to ARB Commands
[SOURce:]ARB:CURRent:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:CURRent:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:POWer:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:POWer:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:RESISTANCE:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:RESISTANCE:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)

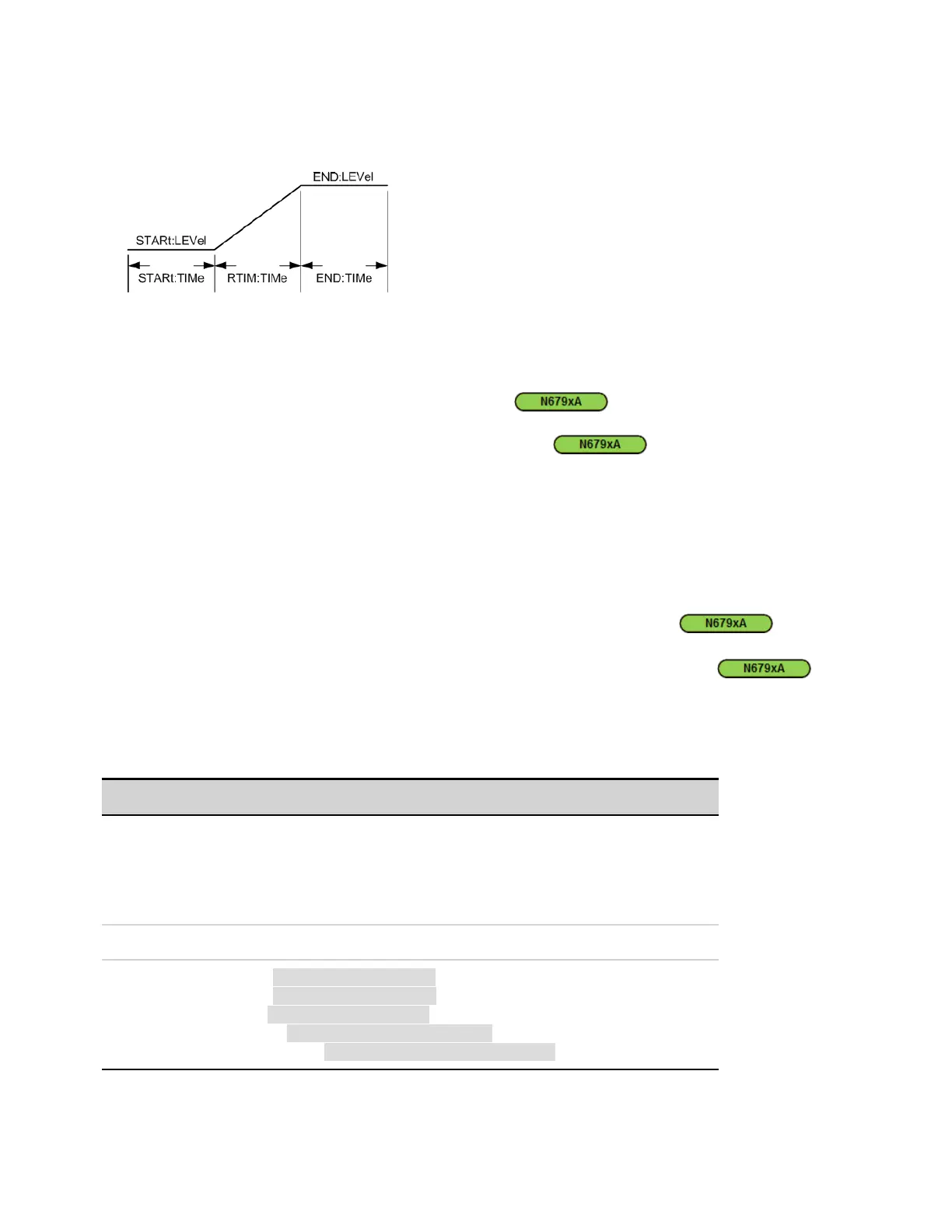

Specifies the ending current, voltage, power, or resistance level after the ramp occurs.
[SOURce:]ARB:SEQuence:STEP:CURRent:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:CURRent:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:POWer:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:POWer:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:RESISTANCE:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:RESISTANCE:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
Specifies the ending current, voltage, power, or resistance level level after the ramp occurs for Arb
sequence steps.
Parameter Typical Return
Current: 0 - maximum|MIN|MAX, *RST MIN
Voltage: 0 - maximum|MIN|MAX, *RST MIN
Power: 0 - maximum|MIN|MAX, *RST MIN
Resistance: 0 - maximum|MIN|MAX, *RST MIN
Values are range and module-rating dependent.
<end value>
Step 0 - 99, *RST 0 (none)
Programs an end level current: ARB:CURR:RAMP:END 2,(@1)
Programs an end level voltage: ARB:VOLT:RAMP:END 20,(@1)
Programs an end level power: ARB:POW:RAMP:END 20,(@1)
Programs an end level resistance: ARB:RESISTANCE:RAMP:END 50,(@1)
Programs an end level current for step 0: ARB:SEQ:STEP:CURR:RAMP:END 2, 0,(@1)
