28 Chapter 2
Test Descriptions
Input VSWR

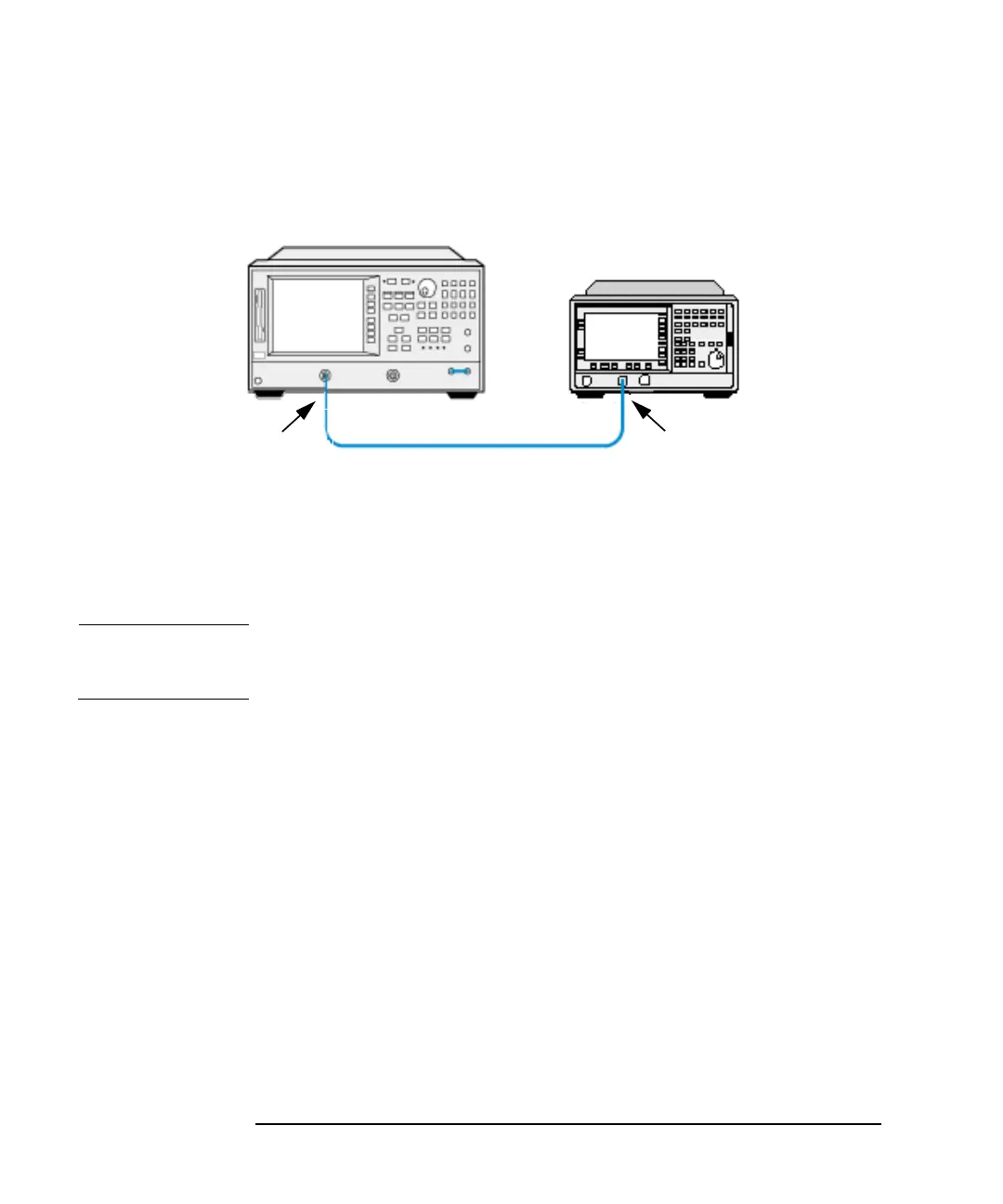

Figure 2-4 Input VSWR Test Setup 1
Step 9. Select the relevant calibration kit in use from the Cal menu, as the
calibration kit selection is dependant on the NFA being tested (press the
Cal key, Calibration Kit selection and Return).
NOTE The connector type applies to the test port or adaptor if fitted and not the
NFA under test.
Step 10. Select an S11 port calibration (press the
Cal key, then Calibrate Menu and
Reflection 1-port).
Step 11. Connect the Open to the test port or, if fitted, the adapter and perform
the open calibration (press
Opens and then select the relevant menu
key).
Step 12. Connect the Short to the test port or, if fitted, the adapter and perform
the open calibration (press
Shorts and then select the relevant menu
key).
Step 13. Connect the Load to the test port or, if fitted, the adapter and perform
the open calibration (press
Load, select the relevant menu key and then
done 1-port CAL
).
Step 14. Save the calibration (press the
Save/recall key and then Save State).
VECTOR NETWORK
ANALYZER 1
Cable 1
Port 1
Adapter 2
(if Applicable)
Input
NOISE FIGURE
ANALYZER
Adapter 1
(if Applicable)
To Next Page
