Tributaire™ Collection - Lecterns
Assembly Instructions
nylon
ganging
block
#10-16 x /”
5
8
Phillips truss
head screws
#10-16 x /”
5
8
Phillips truss
head screws
nylon
ganging
block
Tributaire
post-leg table
Detail T - (underside view)
nylon
ganging
block
#10-16 x /”
5
8
Phillips truss
head screws
tabletop
(underside)
Tributaire
post-leg table
storage
bag hook
Tributaire
lectern
nylon
ganging
block
Detail U - (underside view)
nylon
ganging
block
tabletop
(underside)
storage
bag hook
Tributaire
lectern

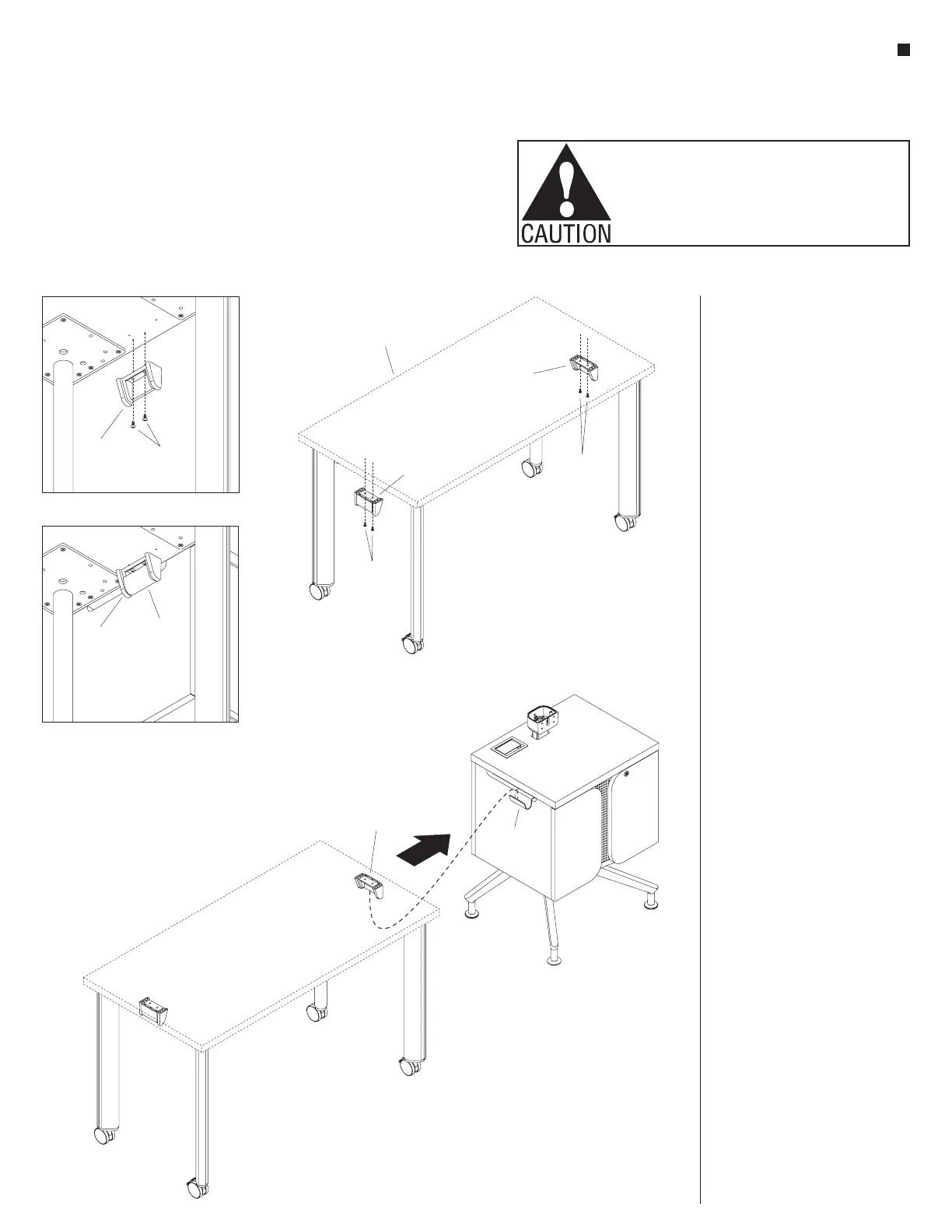

4. At the underside of the Tributaire
post-leg table, position a nylon
ganging block as illustrated, with
the notched-out portion of the block
facing towards the inside of the table.
Align the mounting holes on the
block with the mounting holes on
the underside of the table and secure
using two #10-16 x
5
/
8
” Phillips
truss head screws. Repeat this step
to secure the second nylon ganging
block to the opposite side of the table
(Figure 17 & Detail T).
5. Move the table’s ganging side near
the ganging side of the lectern
(Figure 18).
6. Lift the ganging side of the table up
and over the storage bag hook on the
lectern, then lower the table until the
nylon ganging block rests ontop of
the hook as illustrated (Figure 18 &
Detail U).
To Next Page
