12
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

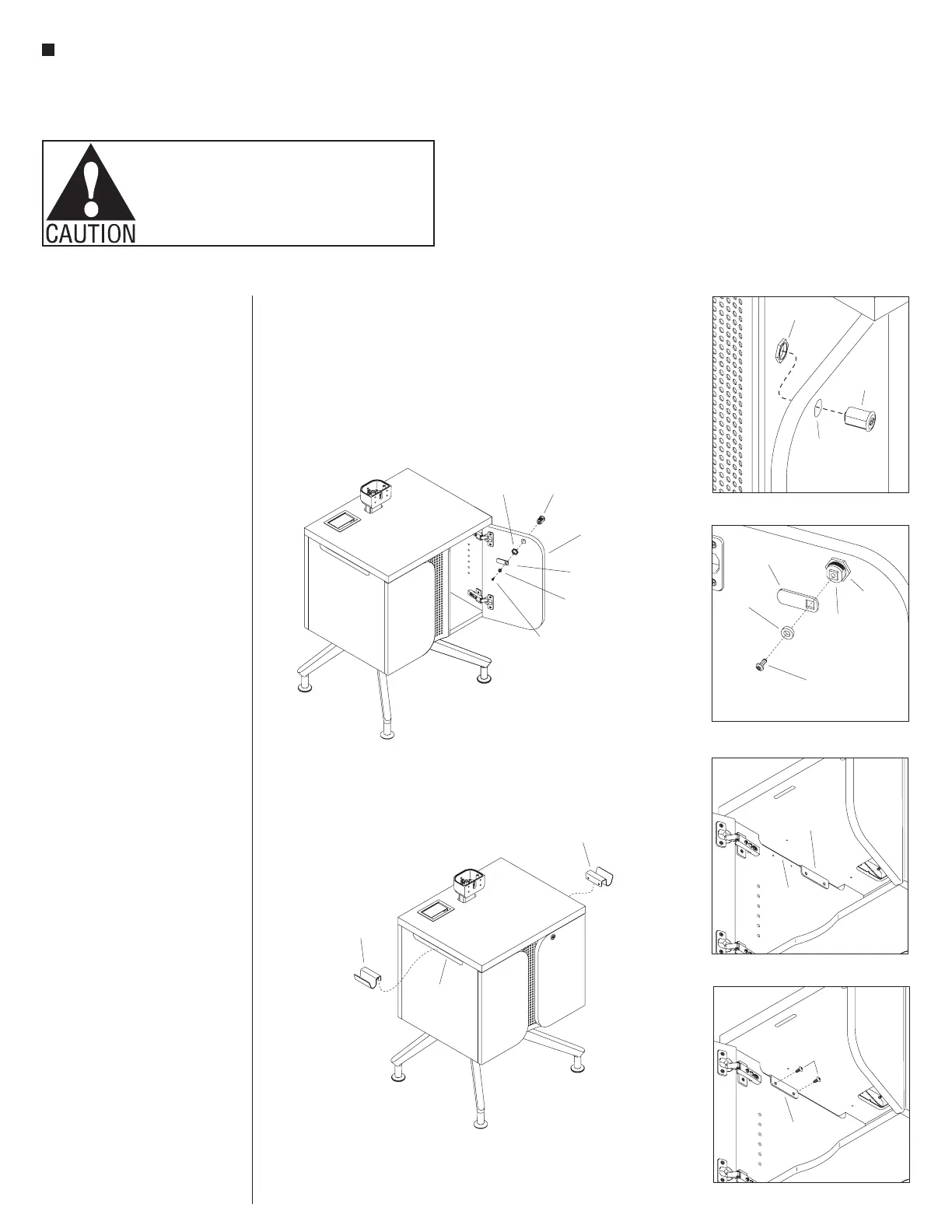

Tributaire™ Collection - Lecterns
Assembly Instructions
Figure 16
bag hook
storage
cabinet
opening
storage
bag hook
storage
cabinet
Detail - (underside view)R
storage
bag hook
storage
cabinet
opening
storage
bag hook
- (underside view)S
#10-16 x /”
5
8
Phillips truss
head screws
Lock Installation (optional)
1. With the door open on the storage
cabinet, insert the lock housing into
the lock hole on the outside of the
door (Figure 15 & Detail P).
2. On the back of the door, secure
the lock housing to the door by
threading the lock nut onto the back
of the lock housing (Figure 15 &
Detail P).
3. Align the square mounting hole on
the cam lock with the square boss
on the back of the lock housing,
orienting the lock cam horizontal and
in the 9 o’clock position. Secure the
cam lock to the lock housing using a
washer and #10 x
3
/
16
” Phillips screw
(Figure 15 & Detail Q).
lock
housing
cam
lock
washer
#10 x /”
3
16
Phillips pan head
screw
cabinet
door
lock
nut
storage
cabinet
cabinet door
housing
nut
cam lock
washer
#10 x /”Phillips
3
16
pan head screw
lock
housing
lock nut
cabinet
door
lock
hole
Storage Ganger Kit & Storage Bag
Hook Installation (optional)
1. Hook a storage bag hook onto the
opening on the top side of the lectern
storage cabinet (Figure 16 &
Detail R).
2. Open the doors of the storage
cabinet. Inside the cabinet, align
the mounting holes on the storage
bag hook with the mounting holes
below the storage cabinet opening.
Secure the hook to the cabinet using
two #10-16 x
5
/
8
” Phillips pan head
screws (Details R & S).
3. Repeat steps 1 and 2 above to secure
the second storage bag hook to
the opposite side storage cabinet
opening.
To Next Page
