Tributaire™ Collection - Lecterns
Assembly Instructions
Perforated Steel Panel Installation
1. Open the doors of the storage cabinet
and identify the left-hand door which
has five mounting holes. Align the
mounting holes on the perforated
steel panel with the mounting holes
on the door and secure using five
#8 x
5
/
8
” Phillips pan head screws
(Figure 12 & Detail N).
Storage Cabinet Assembly
Overview
Note: Lecterns with a storage
cabinet always come requiring
installation of a grommet, perforated
steel panel, and adjustable-height
shelf. Optional components include
lock, storage bag hook, and Mini-Tap
power module, per storage cabinet
assembly. Your configuration may
vary.
Detail
- (underside view)N
#8 x /”
5
8
Phillips pan head
screw
perforated
steel panel
storage
cabinet
door
Figure 12
#8 x /”
5
8
Phillips pan head
screw
perforated
steel panel
cabinet
door
storage
cabinet
cabinet door
(with mounting holes)

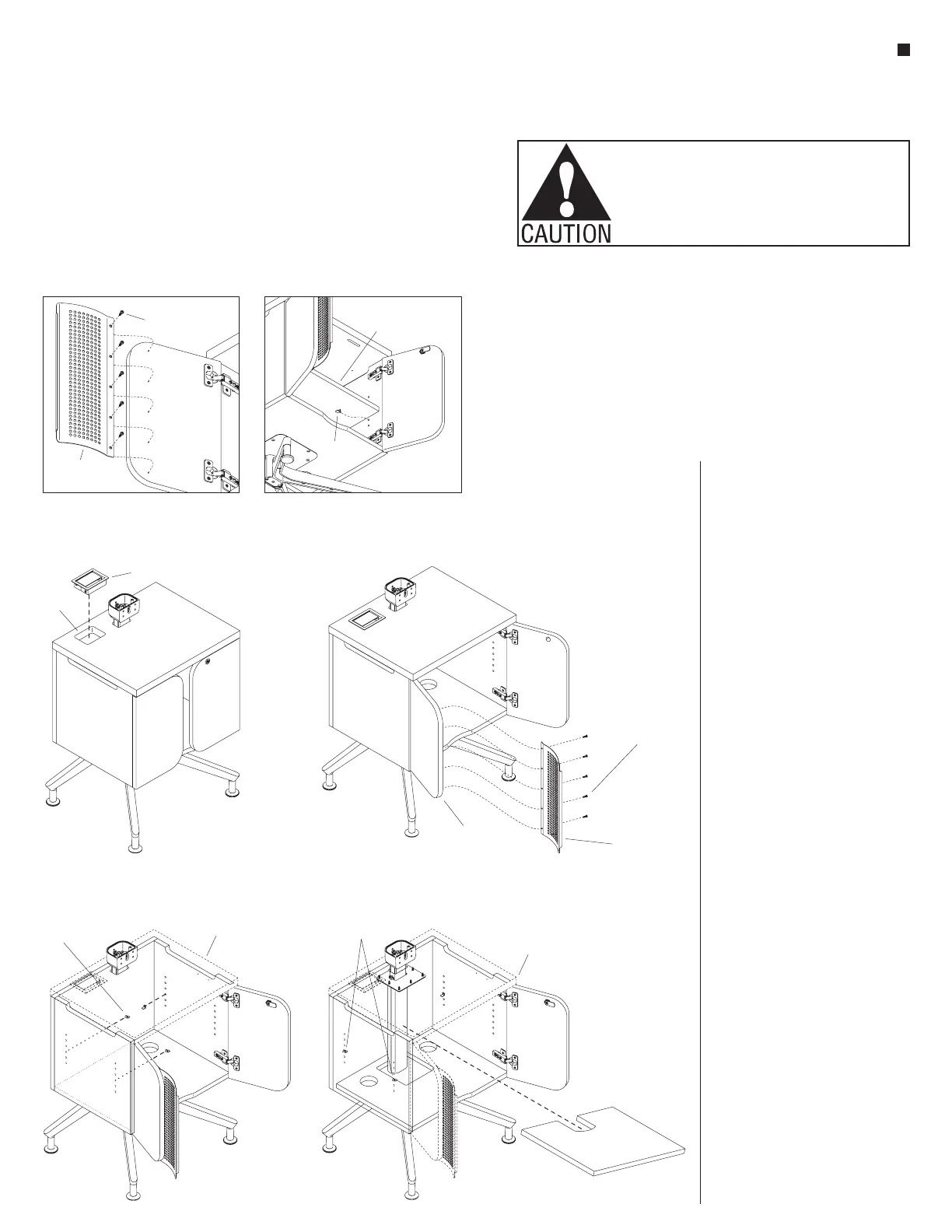

Figure
11
grommet
cutout
storage
cabinet
Grommet Installation
1. Position the grommet above the
cabinet cutout with the lid opening
towards the user side (Figure 11).
2. Push the grommet into the storage
cabinet cutout as illustrated,
tapping lightly with a rubber mallet
if required. Use caution to avoid
scratching the grommet (Figure 11).
Adjustable Shelf Installation
1. Open the doors on the storage
cabinet and determine the desired
height of the adjustable shelf
(Figure 13).
Note: When inserting the shelf pins
into the mounting holes inside the
storage cabinet, only insert two pins
at the back and one in the front. The
forth pin will be installed once the
shelf is in the designated location.
2. Insert three shelf pins, in the
mounting hole locations inside the
storage cabinet, at the desired height
(Figure 13).
3. Tilt the adjustable shelf diagonally,
with the tilted-up side of the shelf at
the side of the cabinet with the two
shelf pins. Insert the shelf into the
cabinet, then rotate the shelf down
onto the three pins (Figure 14).
4. Lift the adjustable shelf up slightly
to gain access to the remaining front
shelf mounting hole, then insert the
remaining shelf pin at the correct
height (Detail O).
Figure 14
adjustable
shelf
cabinet
door
storage
cabinet
shelf pins
Detail O - (underside view)
shelf
pin
adjustable
shelf
Figure 13
storage
cabinet
cabinet
door
shelf pin
