Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tributaire™ Collection - Lecterns
Assembly Instructions
Figure 9
#8-32 x /”
3
8
Torx at head
screw
mounting
head cover
mounting
head
Detail R
#8-32 x /”
3
8
Torx at head
screw
mounting
head
mounting
head cover
Figure 8
worktop
worktop
support
bracket
worktop
support
platfor
m

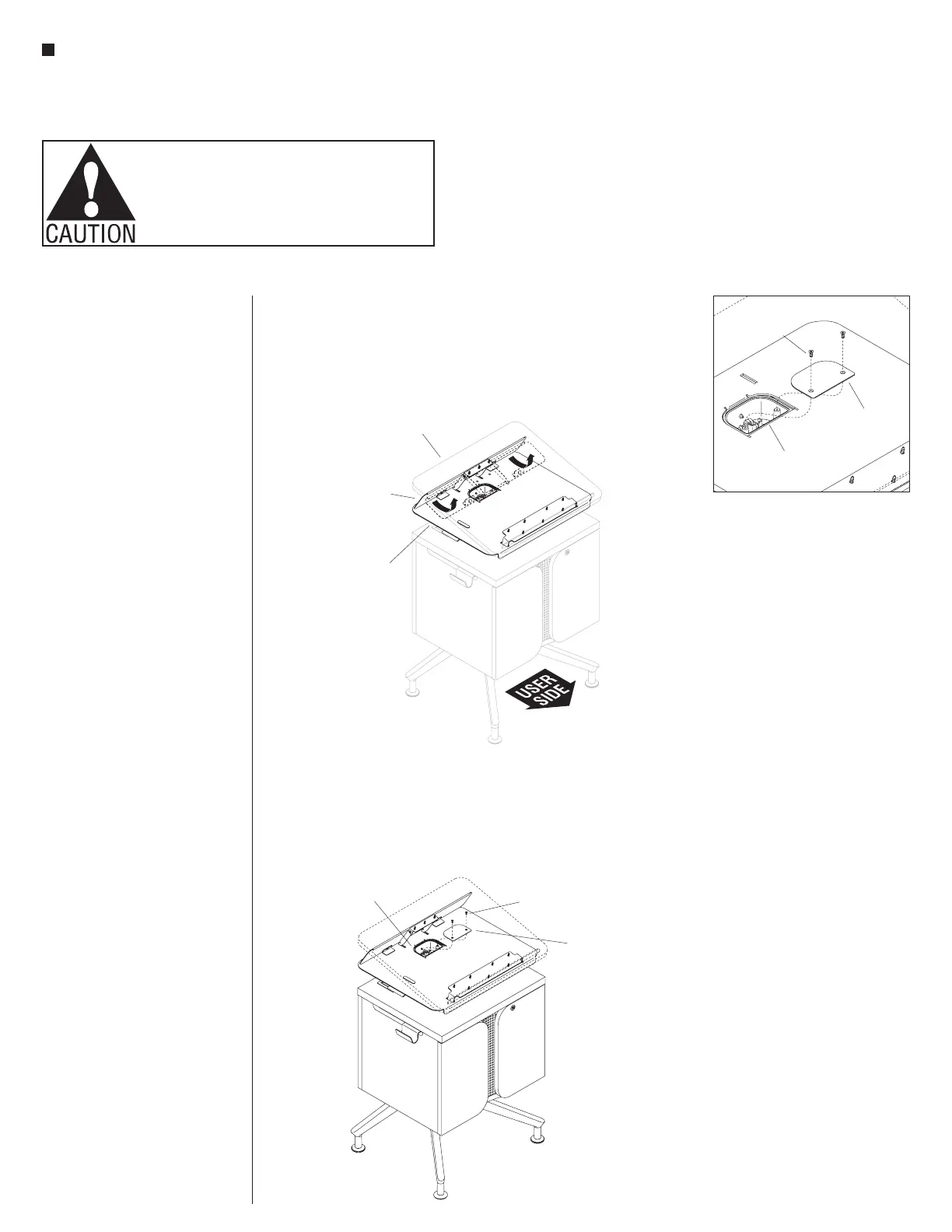

Mounting Head Cover Installation
1. Begin mounting head cover
installation at the back, non-user
side of the lectern. While facing
the back, lift the worktop up to
disengage the worktop support
bracket from the worktop support
platform. Next, flip the worktop
support bracket up against the
underside of the worktop and
continue to hold it up to gain
access to the top of the mounting
head (Figure 8).
2. While holding the worktop support
bracket against the worktop from
the non-user side of the lectern,
place a mounting head cover onto
the mounting head and align the
two mounting holes. Secure the
cover to the head using two
#8-32 x
3
/
8
” Torx flat head screws
(Figure 9 & Detail R).
3. At this time, the worktop support
bracket can be lowered back into
place and re-engaged to prop the
worktop up.
