Tributaire™ Collection - Lecterns - Adjustments
Assembly Instructions
11
/ -20 x /”
42
socket head
cap screw

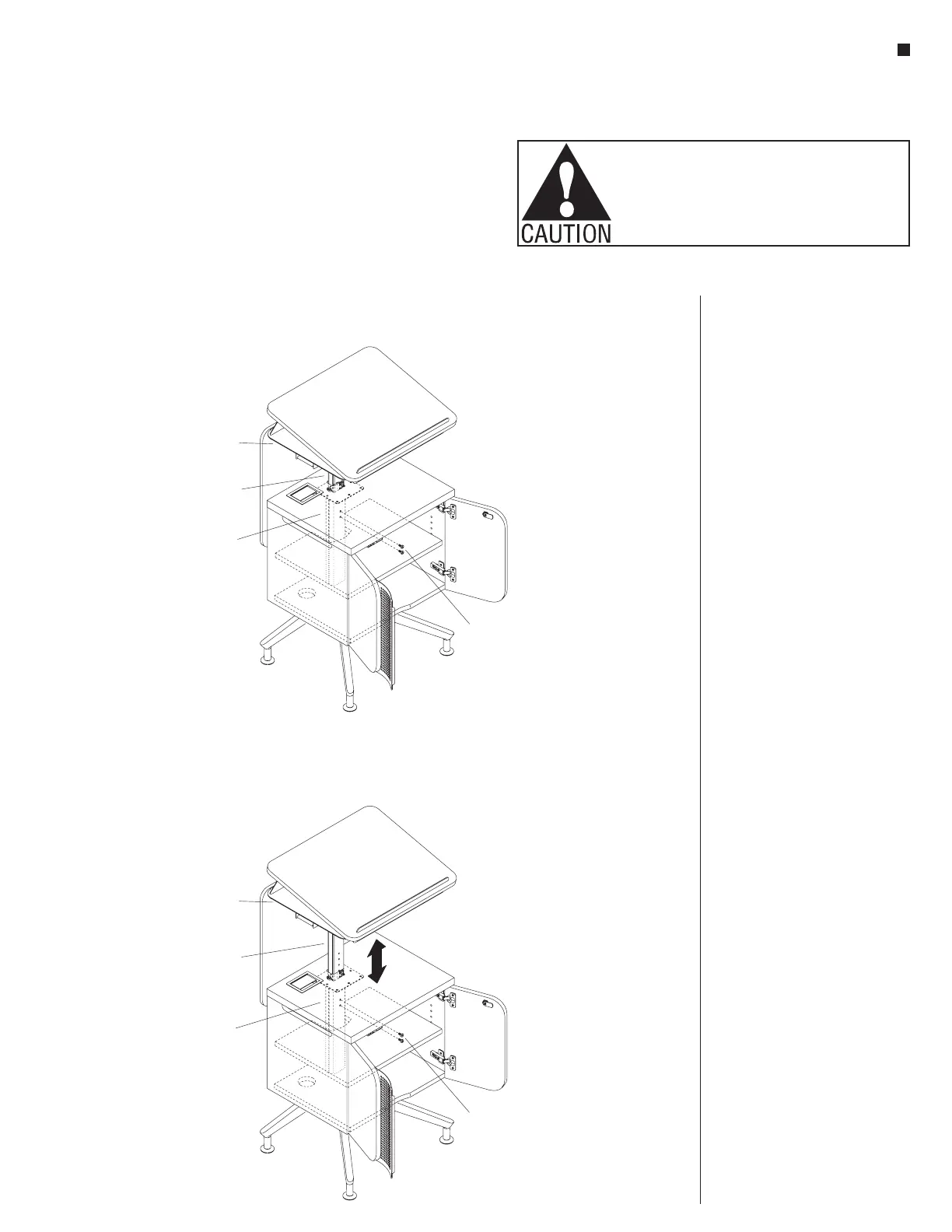

Figure 1
base
assembly
upright
worktop
support
platform
11
/ -20 x
/”
42
socket head
cap screw
Figure 2
base
assembly
upright
worktop
support
platform
Screw-Adjustable Height Lectern
Adjustments
Note: Although the figures
throughout this “Screw-Adjustable
Height Lectern Adjustment”
instructions illustrate a Tributaire
screw-adjustable height lectern
with storage, the instructions apply
to all Tributaire screw-adjustable
height lecterns. Your configuration
may vary.
1. If the lectern being adjusted has a
storage cabinet, open the cabinet
doors to gain access to the two
1
/
4
-20 x
1
/
2
” Allen cap screws on the
base assembly (Figure 1).
2. Hold the worktop support platform
with upright and remove the two
1
/
4
-20 x
1
/
2
” Allen cap screws from
the base assembly so the upright
height can be adjusted (Figure 1).
3. Move the upright up or down to
the desired height (1” increments).
Align the two adjustment holes on
the upright with two holes on the
base assembly and secure with
two
1
/
4
-20 x
1
/
2
” Allen cap screws
(Figure 2).
