4
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tributaire™ Collection - Lecterns
Assembly Instructions
Caster & Telescopic Glide
Overview
Note: If casters are to be installed
on the lectern, proceed to “Caster
Installation” instructions on this page,
otherwise proceed to “Telescopic
Glide Installation” instructions on
this page.
Caster Installation
Note: Casters are designed as
locking, and non-locking. Each type
must be installed to the appropriate
side of the base assembly, as it
corresponds to either the user,
or non-user side of the lectern.
If casters are not installed to the
proper locations, users will not be
able to properly access the locks
on the casters from the user side of
the lectern, and disassembly and
reassembly will be required.

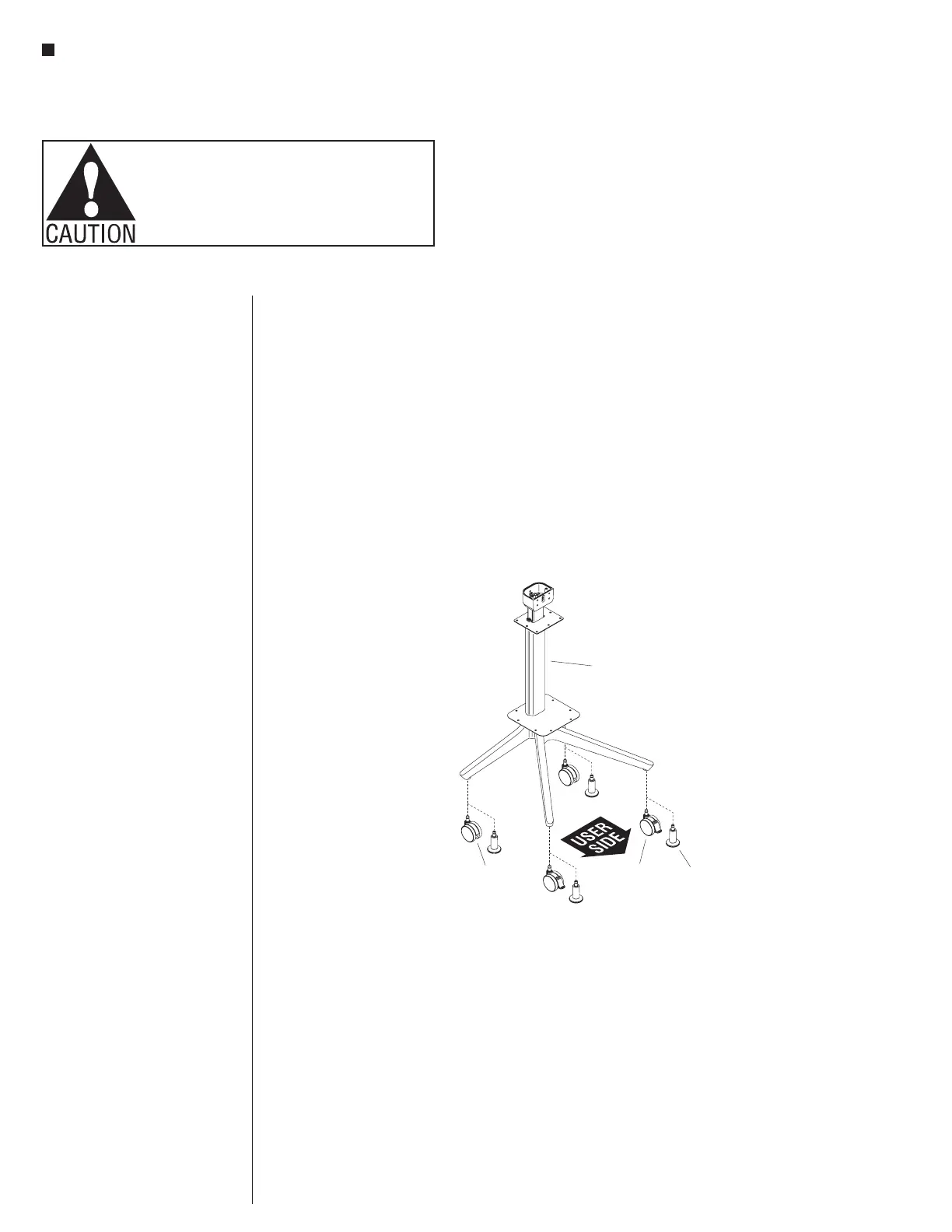

1. Locate the locking and non-locking
casters. Locking casters are to be
installed to the front, user side of the
base, and non-locking casters are to
be installed to the rear of each base.
One caster type at a time and at the
correct base location as illustrated,
Press in fully to install the stem of
each caster into a caster mounting
hole at the underside of each leg
(Figure 1).
2. Proceed to “Base Assembly
Overview” instructions on the next
page.
Telescopic Glide Installation
3. Insert the stem of each telescopic
glide unit into the hole under each
leg and press in until snug to the
bottom of the leg (Figure 1).
4. Proceed to “Base Assembly
Overview” instructions on the next
page.
caster
glide
locking
caster
base
assembly
