8
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tributaire™ Collection - Lecterns
Assembly Instructions
base
lectern upright
(screw-adjustable
height)
storage
cabinet
storage
cabinet cutout
11
/ -20 x /”
42
socket head
cap screws
Detail I - (underside view)
storage
cabinet
11
/ -20 x /”
42
socket head
cap screws
base
assembly
Screw-Adjustable Height Lectern -
Storage Cabinet Installation
(cont.)

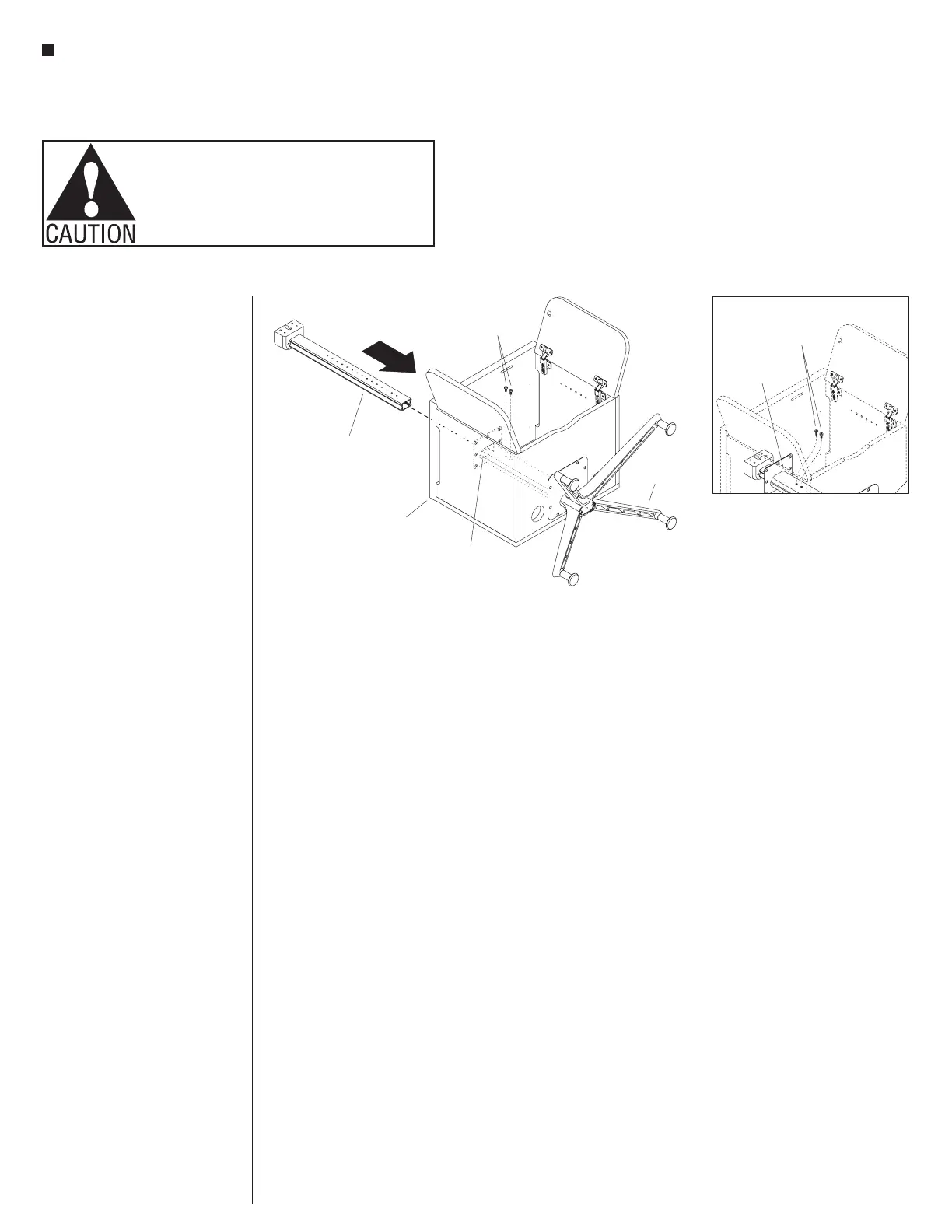

7. Position the previously removed
lectern upright next to the storage
cabinet cutout as illustrated with
the height-adjustment holes of the
upright facing the same direction as
the base assembly adjustment holes.
Insert the upright into the cutout.
Move the upright up or down to
the desired height (1” increments).
Align the two adjustment holes on
the upright with the desired height
adjustment holes on the base
assembly and secure with two
1
/
4
-20 x
1
/
2
” Allen cap screws
(Figure 7 & Detail I).
8. Carefully turn the X-base assembly
to the upright position on the floor.
9. Proceed to “Perforated Steel Panel
Installation” instructions on page 11.
