PEGAsys
Intelligent Suppression Control/Fire Alarm System
TITLE

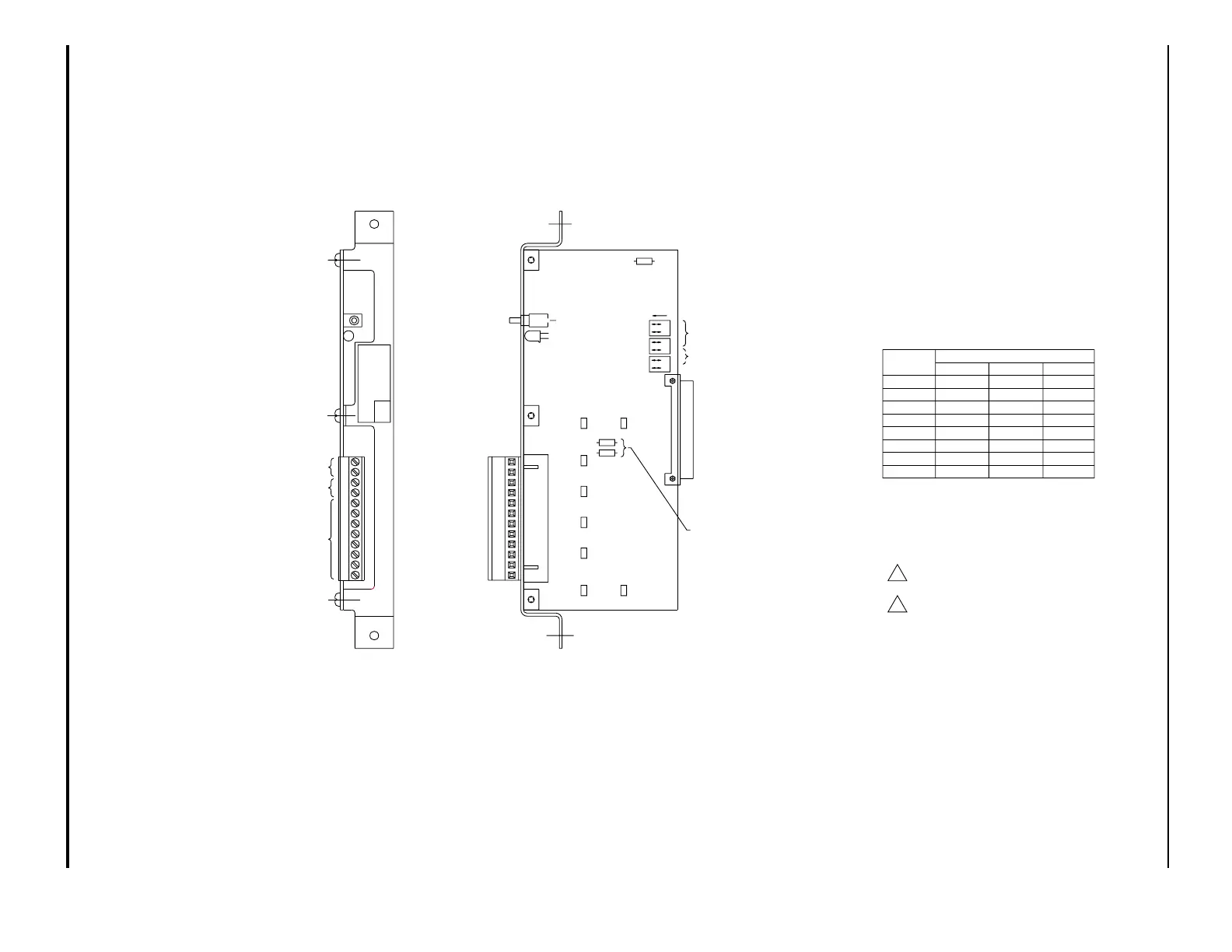

Installation Wiring Diagram
Signal Audible Module
(PEGAsys)
DRAWING No.
06-235443-006
REVISION
AC
SHEET
1 of 3
NOTES:
3. SIGNAL OUTPUT REQUIRE THE USE OF END OF LINE
2. NOMINAL VOLTAGE 24.0 VDC
1. MAXIMUM OUTPUT CURRENTS:
4. MODULE ADDRESS ASSIGNMENT
76-100003-001
12
TB1
1
ONLY POLARIZED SIGNALLING DEVICES TO BE USED.
- FOR POWER LIMITED CIRCUITS
7. - FOR SUPERVISED CIRCUITS
REFER TO FENWAL DATA SHEETS 75.XXX
6. FOR SPECIFIC SIGNAL DEVICE INFORMATION
S
SW1,2
OFF
ON
OFF
ON
OFF
ON
OFF
ONONON1
8
7
5
3
4
2
6
OFF
OFF
ON
OFF
OFF
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
MODULE
ADDRESS SW2,2 SW1,1
L
RESISTOR (EOR) - 10K, 0.5W; NOT SUPPLIED WITH
SUPERVISORY CURRENT - 2.4 mA/CIRCUIT
SIGNAL CIRCUIT - 2.0 A
3456789101112
12
AUXILIARY
POWER
SOUNDER
CIRCUITS
RESET SWITCH
TROUBLE LED
8. JUMPERS W9 & W10 MUST BE CUT OUT
WHEN AUXILIARY POWER INPUT IS USED.
NOT USED
SWITCH POSITION
9. MAXIMUM OF 8 MODULES PER SYSTEM.
5. EITHER SOUNDER OUTPUT (2) MAY BE CONFIGURED
FOR EITHER 2 STYLE "Y" OR 1 STYLE "Z", USING
JUMPER AND DIP SWITCH SETTINGS SHOWN ON SHEETS2&3.
1
12
KIDDE-FENWAL, INC.
06-129569-001
ASHLAND, MA 01721
SIGNAL AUDIBLE MODULE
ON
21
MODULE ADDRESS ASSIGNMENT
SEE NOTE 4
1212
SEE NOTE 8
1-4
PANEL. AVAILABLE AS PART NO. 06-129520-001
(KIT OF 50).
10. MAXIMUM OF ONE #12 AWG WIRE PER TERMINAL.
SEE NOTE 5
SIG. AUD.
