August 1999 76-100016-001

PEGAsys

Intelligent Suppression Control/Fire Alarm System

7-12

A simple connection cable is all that is needed to connect the

serial printer to the RS-232 port of the CCM. The following dia-

gram represents the cable.

CCM PIN PRINTER

TX 1. RX (receive data)

Sig. Gnd. 2. Sig. Gnd.

RTS 3.

CTS* 4. DTR*

N/C 5.

RX 6.

* +8 to +12 VDC signal needed for supervision if using a graphic

annunciator.

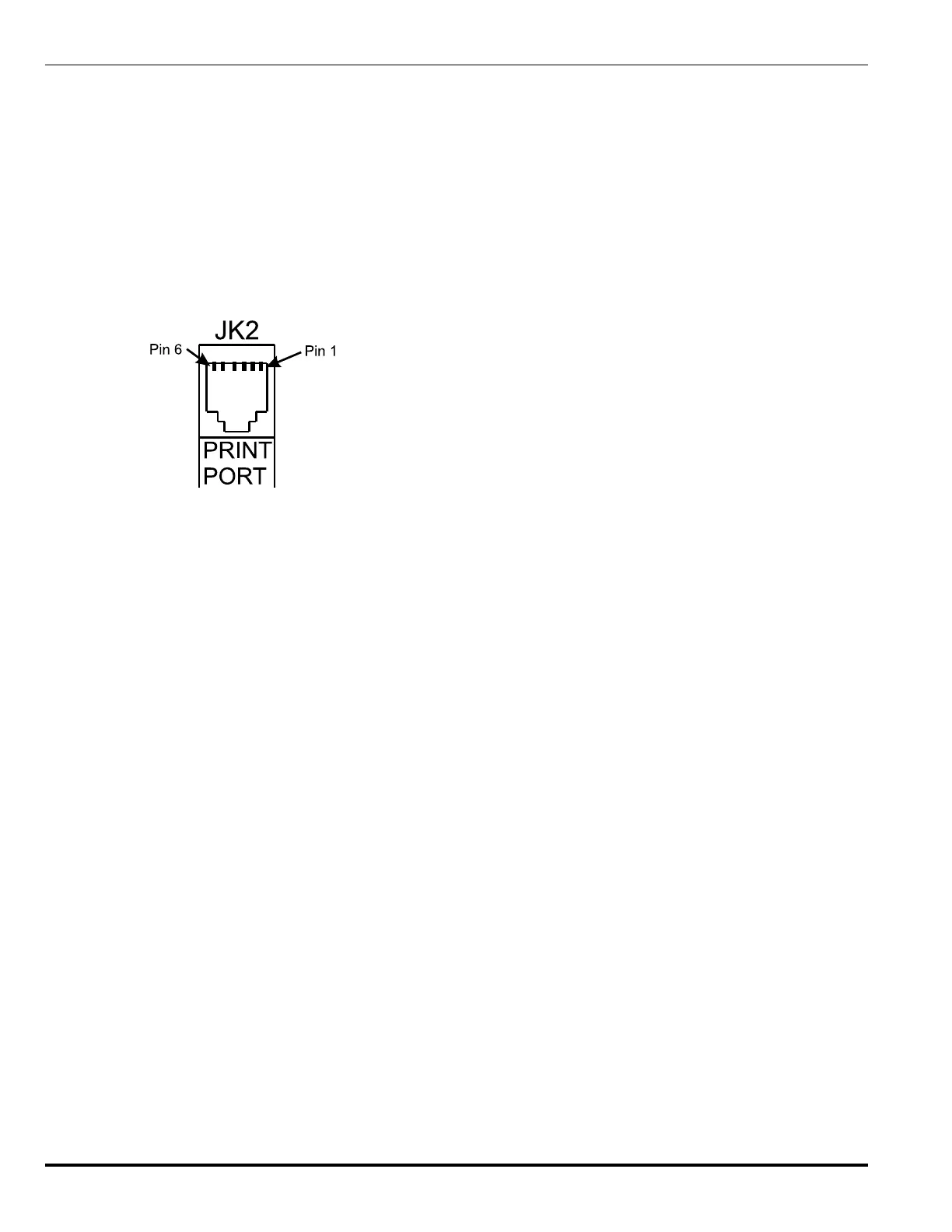

Figure 7-17. CCM Printer Port
