O-1 August 199976-100016-001
Intelligent Suppression Control/Fire Alarm System
PEGAsys
APPENDIX O
CENTRAL STATION OPERATION
O-1 CENTRAL STATION OPERATION
For central station operation, the PEGAsys control panel must
be configured for central station use through PCS menu (Net-
work Settings). A Silent Knight DACT Model 5104 must be wired
to the PEGAsys control panel as shown in Figure O-1. See Model
5104 Installation Manual for information regarding connection
of the DACT to the telephone line for alarm and trouble
transmission(s).
8
9
10
11
12
13
14
15
16
17
18
Silent Knight DACT Model 5104 PCB
PegaSYS CCM PCB
NO NC C
Fault Relay
NO NC C
Volt Free
Relay 2
Zone 3 Alarm
Zone 4 Trouble
4.7k
4.7k

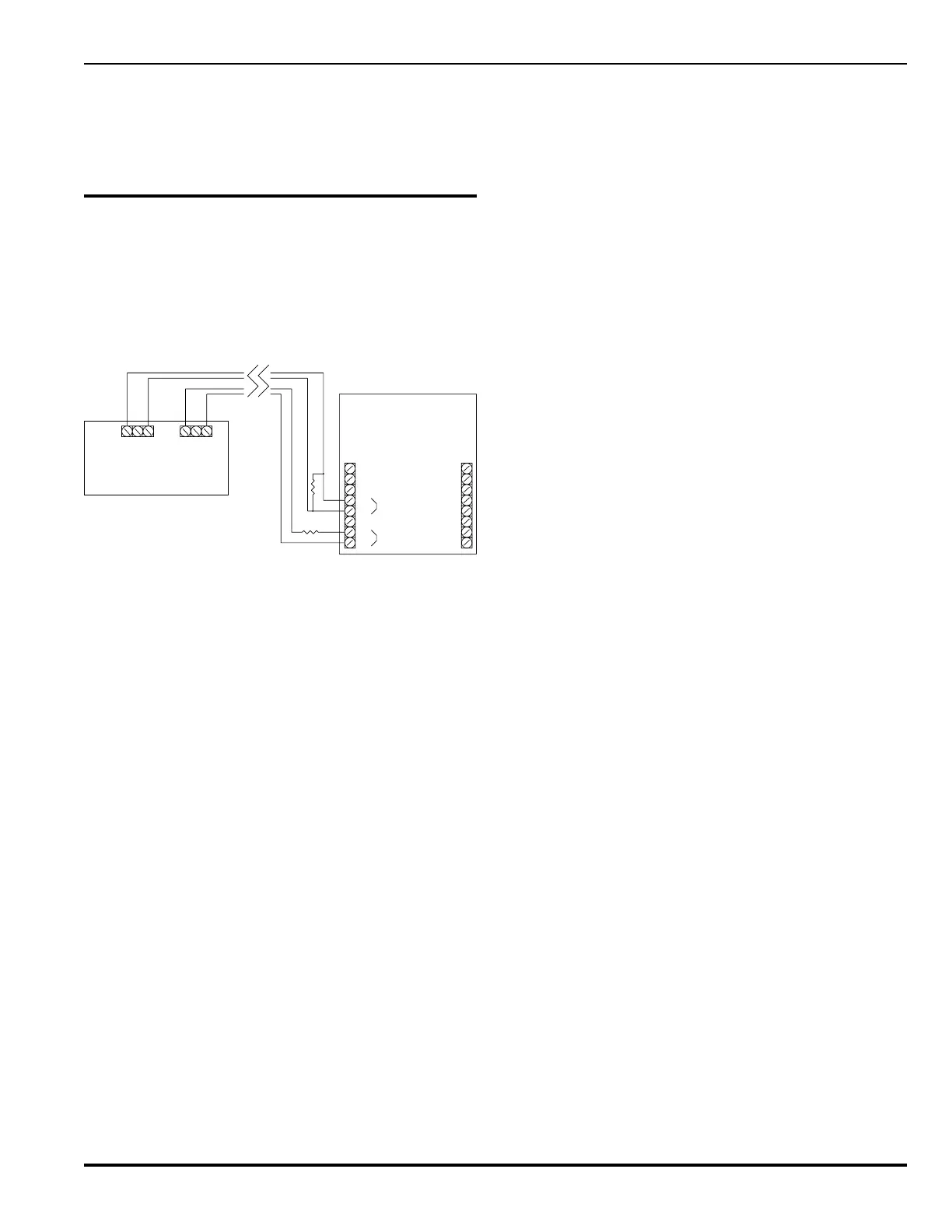

Figure O-1. Wiring for DACT
