1-4August 1999 76-100016-001
PEGAsys
Intelligent Suppression Control/Fire Alarm System

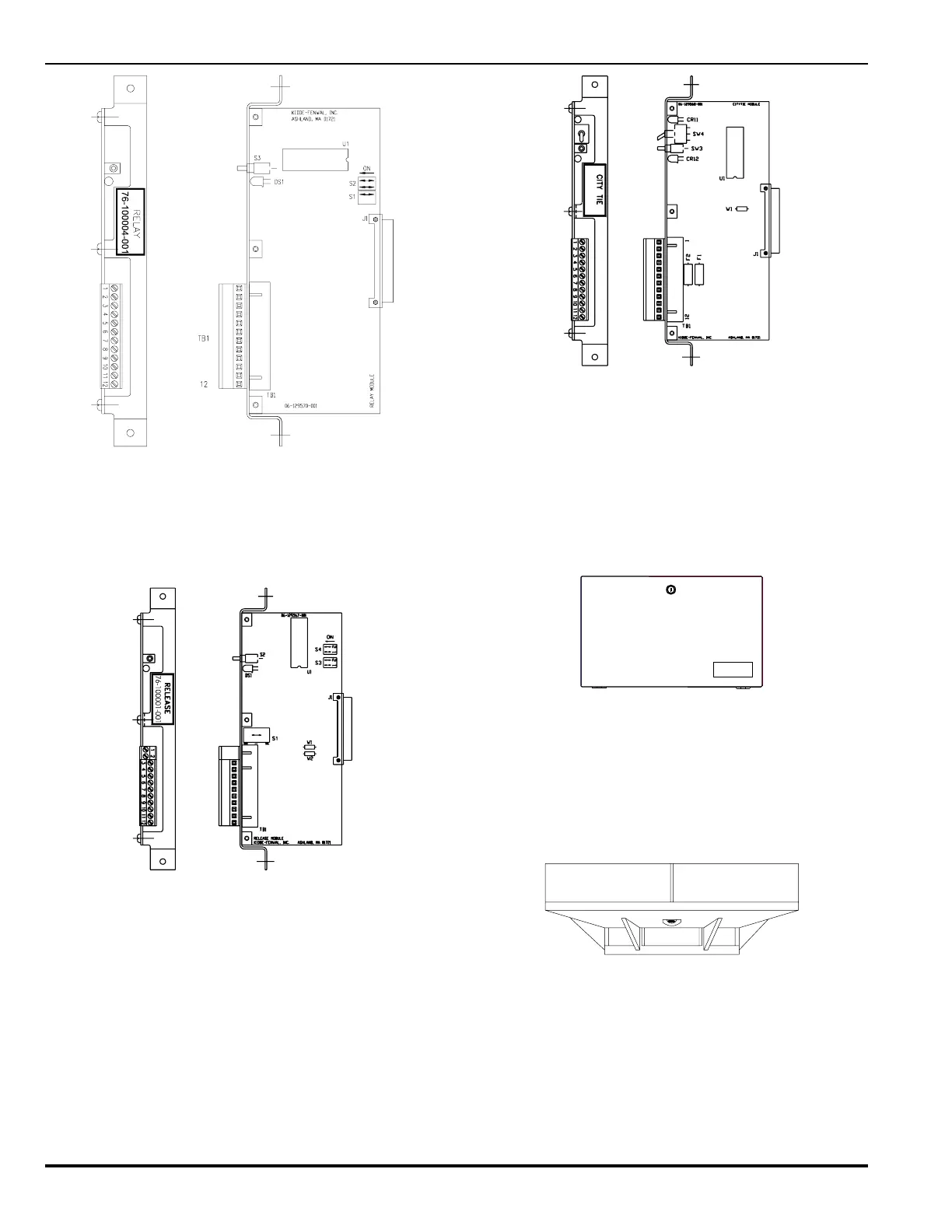

Figure 1-9. Relay Output Module
1-2.7.3 AGENT RELEASE OUTPUT MODULE
The PEGAsys panel has the capacity for a maximum of 8 agent
release output modules, providing up to 8 release circuits and
24 maximum signal outputs on those modules.
Figure 1-10. Agent Release Output Module
1-2.7.4 CITY-TIE MODULE
The City-Tie (Notification) Module will provide connection and
operation for local energy, shunt type master box and reverse
polarity styles of output.
76-100002-001
Figure 1-11. City Tie Module
1-2.8 Standby Batteries
Space is provided within the central control panel enclosure for
up to two (2) 12-V, 17 Amp Hour, sealed lead-acid batteries
used for 24, 60 or 90 hour standby operation. If additional bat-
teries are required, an optional battery enclosure is available.
The enclosure (Figure 1-12) is a heavy duty steel cabinet which
can house up to two 40AH batteries. For installation informa-
tion see Paragraph 7-9.1.
STANDBY BATTERIES
FIRE ALARM SYSTEM
KIDDE
Figure 1-12. Battery Enclosure
1-2.9 Intelligent Loop Devices
The SmartOne
TM
Series of Intelligent Fire Alarm devices pro-
vide the PEGAsys control system with smoke and heat detec-
tion and necessary monitoring and control functions required
by today’s advanced fire alarm systems. The following para-
graphs describe each available intelligent detection device.
Figure 1-13. SmartOne Detection Device
1-2.9.1 SmartOne IONIZATION DETECTORS
The SmartOne Ionization smoke detectors provide true distrib-
uted-intelligence, addressable microprocessor-based smoke
detection to the PEGAsys system.
