I-20August 1999 76-100016-001
PEGAsys
Intelligent Suppression Control/Fire Alarm System
NOTE:
1). TB1 BRINGS 24VDC POWER FROM POWER SUPPLY
TB5 OR TB6 TERMINAL BLOCKS.
2). 24VDC POWER TO RX/TX MODULES (J1) FROM TB5 OR TB6 ON POWER SUPPLY.
3). TERMINAL TB1 CAN BE USED TO BRING POWER TO I/O MODULES IN THE AUXILIARY BOX.
1. POWER CONNECTIONS:1.
2. COMMUNICATIONS:
1). J9 CONNECTS TO CCM PORT AND PROVIDES I/O MODULES WITH RS485 COMMUNICATIONS.
2). J1 THROUGH J8 TO BE USED TO PLUG IN I/O MODULES AND SUPPLY THEM WITH +24VDC
POWER AND RS485 COMMUNICATIONS.
3). RS232 COMMUNICATIONS FOR RX/TX MODULE TO BE PROVIDED THROUGH PHONE CABLE
PLUGGED INTO "RX/TX" PORT ON CCM.
1. USE RED WIRES FOR +24VDC AND BLACK FOR RET.
2. JUMPER JP1 SHOULD BE IN. MAKE SURE THAT JUMPER
W4 ON POWER SUPPLY CONTROL BOARD IS OUT.
4). TB2 TO BE USED TO INTERCONNECT TO AUXILIARY PANELS' MOTHER BOARD AND POWER
SUPPLIES TO PROVIDE RS485 COMMUNICATIONS.
J9
RS-485
+24V
485B
485A
SIG. GND
COM. ALM.
COM. TBL.
RET
I/O MOTHER BOARD
KIDDE-FENWAL, INC.
ASHLAND, MA 01721
C
J2
J1
J3
J6
J7 J8
J4
R1
J5
JP1
Tb2
Tb1
Rv2
Rv1
TITLE

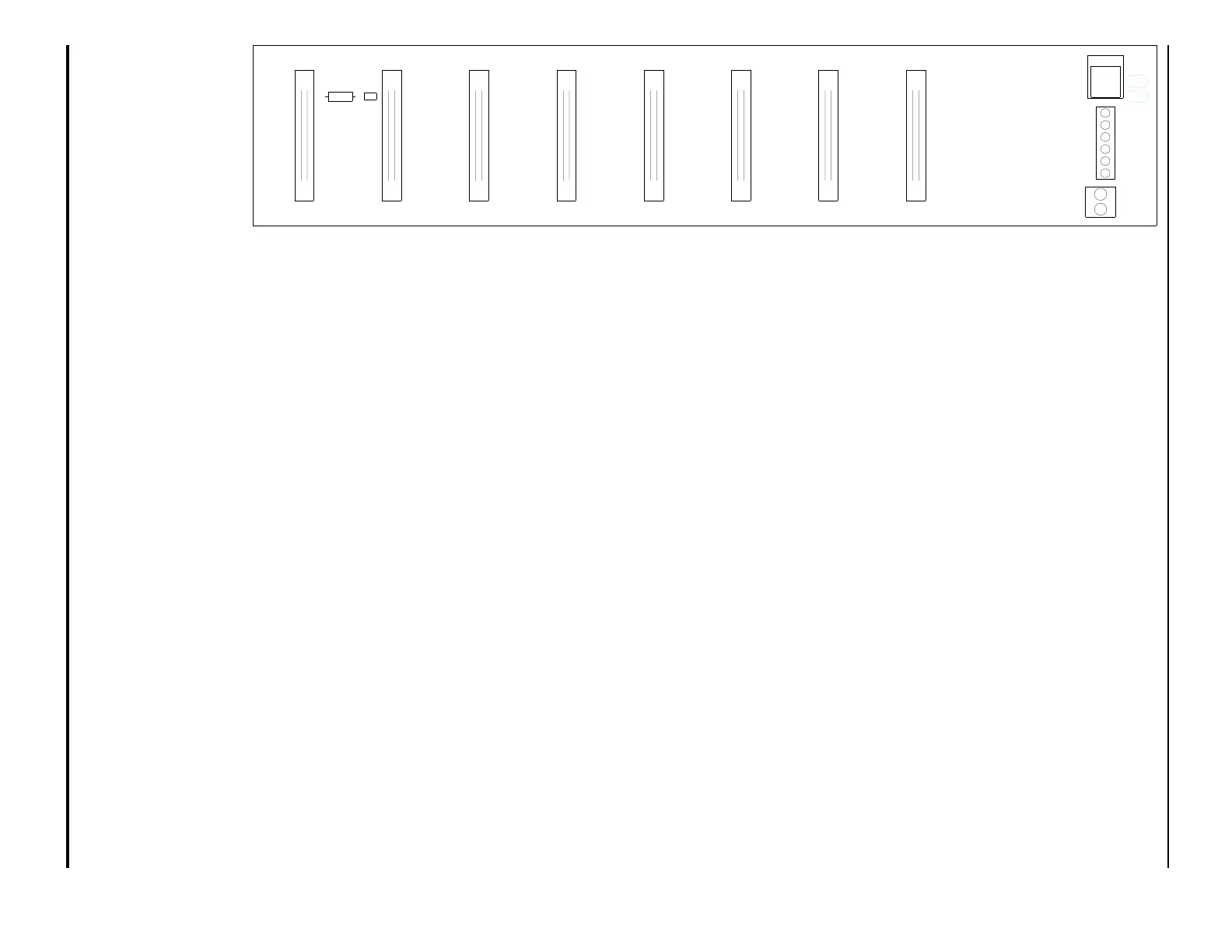

Installation Wiring Diagram
Basic I/0 Motherboard
(PEGAsys)
DRAWING No.
06-235443-011
REVISION
AB
SHEET
1 of 2
To Next Page
