C-2August 1999
76-100016-001
PEGAsys
Intelligent Suppression Control/Fire Alarm System
C-5 SPECIAL MODULE TYPES
The PEGAsys provides specific styles of devices which have
special releasing functions, these devices are:
C-5.1 Abort Switch
The abort switch is connected to an addressable contact moni-
tor (P/N 70-407008-001) which is programmed as an abort in-
put, with a selected abort style as explained in Table C-1. The
addressable contact monitor would be connected to a listed abort
station, such as the Kidde “Suppression System Abort” switch

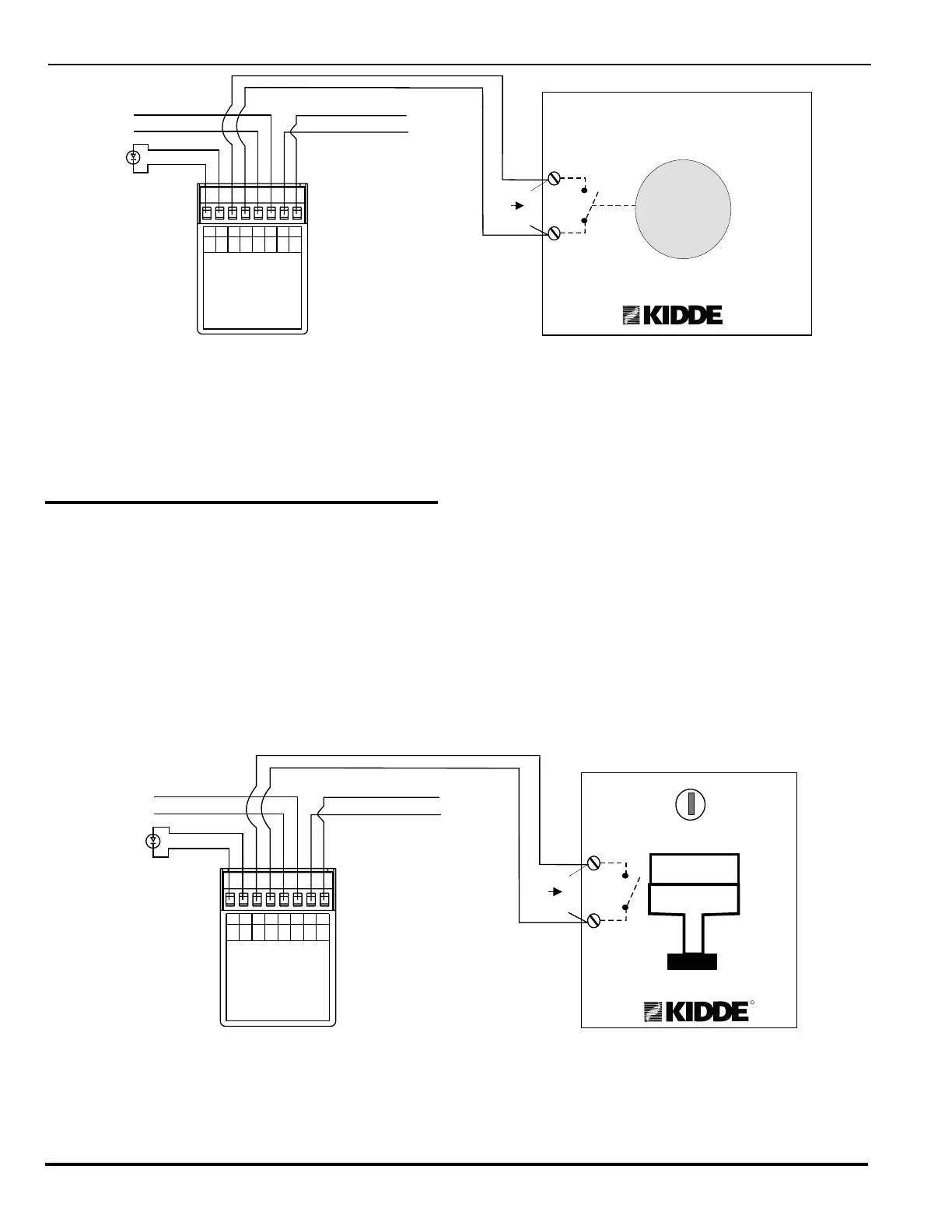

Figure C-1. Addressable Contact Monitor Interconnection
NOTE: The 10-K ohm resistor must be connected across the abort station contacts for supervision.
Failure to install this resistor will result in a "Trouble Open" message for that monitor.
Addressable Contact Monitor
P/N 70-407008-001
PUSH / HOLD
SUPPRESSION SYSTEM ABORT
.
10K ohms
P/N 06-129025-003
P/N 87875201
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120
°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
Remote LED
(Optional)
PC Line
In
(+)
(-)
(+)
(-)
PC Line
Out
ALL TERMINALS ARE POWER LIMITED
(P/N 87875201). Figure C-1 shows the interconnection of the
addressable contact monitor and the abort station switch.
C-5.2 Manual Release Switch
The manual release switch is an addressable contact monitor
(P/N 70-407008-001) which is programmed as an manual re-
lease input. The addressable contact monitor would be con-
nected to a listed manual release station such as the Kidde
Suppression Agent Release switch (P/N 84-100007-00X). Fig-
ure C-2 shows the interconnection of the addressable contact
monitor and the manual release switch.
Figure C-2. Manual Release Switch
NOTE: The 10-K ohm resistor must be connected across the manual poll station contacts for supervision.
Failure to install this resistor will result in a "Trouble Open" message for that contact monitor.
PUSH
PULL
R
P/N 84-100007-00X
Addressable Contact Monitor
P/N 70-407008-001
.
10K ohms
P/N 06-129025-003
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120
°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
Remote LED
(Optional)
PC Line
In
(+)
(-)
(+)
(-)
PC Line
Out
ALL TERMINALS ARE POWER LIMITED
FIRE
ALARM
FIRE
ALARM
