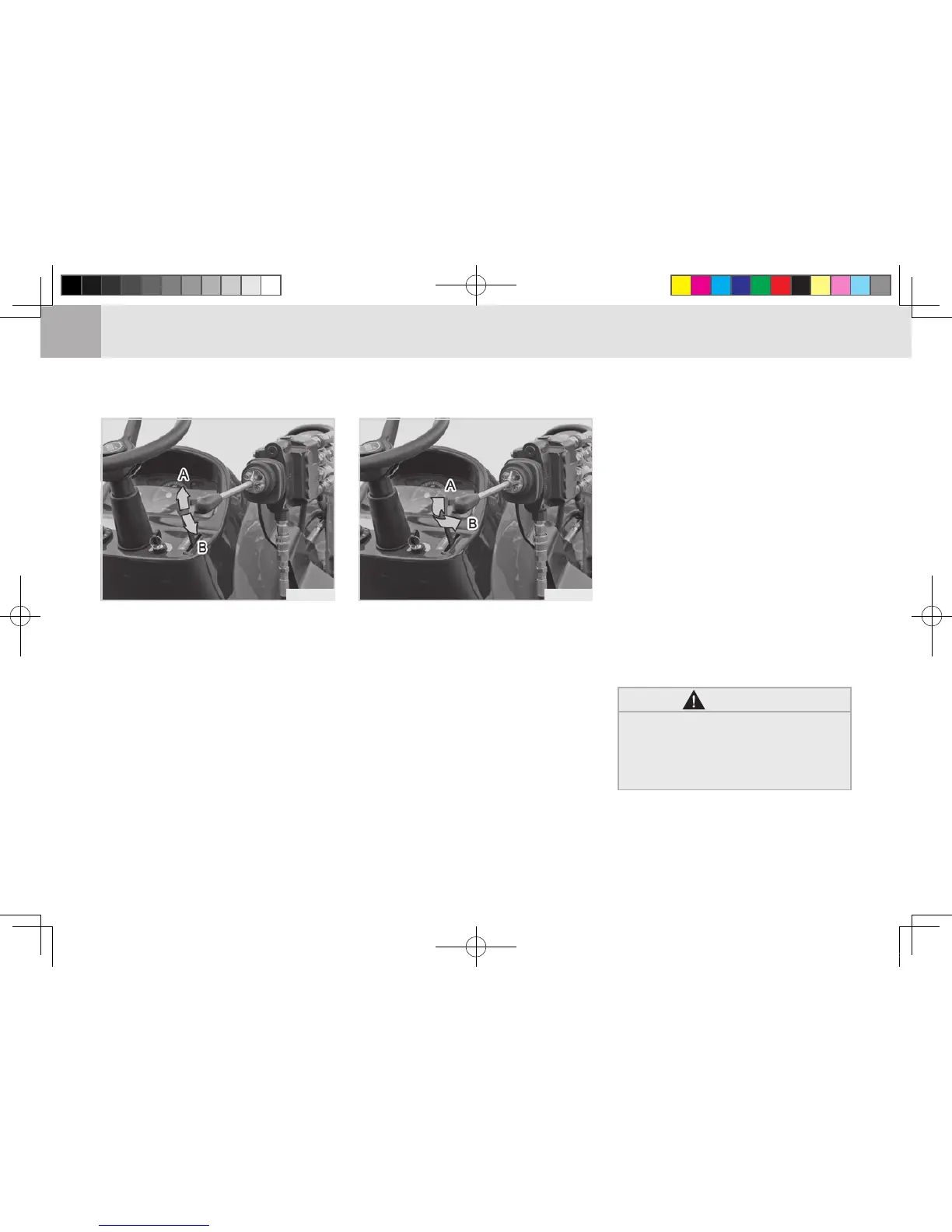

1. Up and down of boom
Pulling the joystick lever back (B)
lifts the boom of the loader while
pushing it forward (A) lowers the
loader boom.
(A) Boom Down (B) Boom Up
2. Roll back & dump
“Roll back” means that the bucket
scoops up. To operate this func-
tion, move the joystick lever to
the left (A). “Dump” means that
the bucket dumps. To operate this
function, move the joystick lever to
the right (B).
(A) Bucket Roll Back (B) Bucket Dump
3. Float
The floating function is activated
when the joystick lever is pushed
one position further from the down
position. When the lever is in this
position, the boom moves up and
down freely along the surface of
the ground as the hydraulic line is
opened from the valve to the boom
cylinder. This function is useful
when removing soft objects on
hard ground. (For example, when
removing snow or sand on an
paved road or removing night soil
on the ground in a stall)
If moving the lever to the oat-
ing position while the boom is
up in the air, the boom can fall
freely and lead to an accident.
WARNING
M46O608A M46O609A
