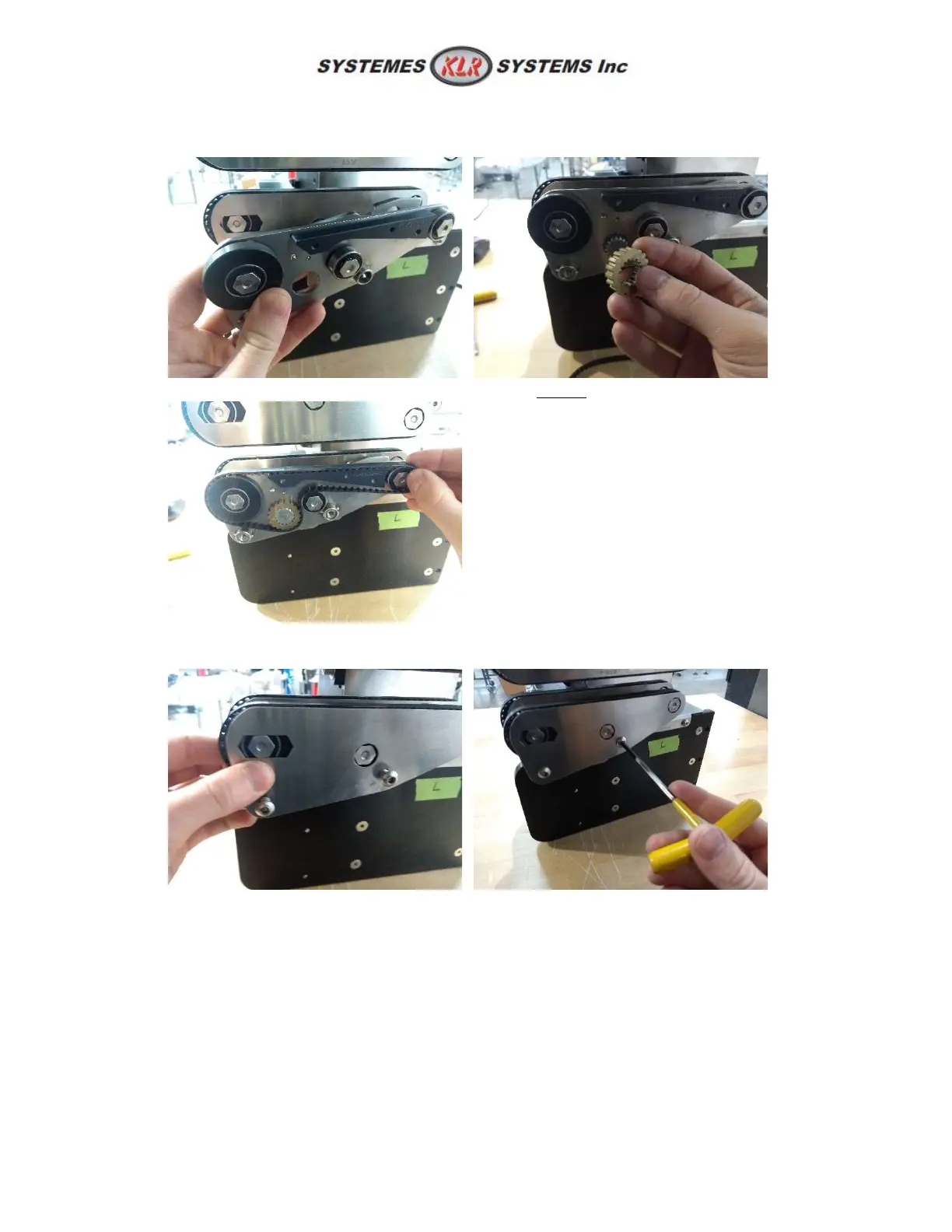

17. Continue with the next assembly. Like the other one, inspect the sprocket and the bearings.
Replace if needed;
18. Replace the front belt. Tensioning will be done later. Careful, there is two size of belt;
19. Put back the front plate, make sure the bearing nut is well engaged into the plate and tight it
with the screws;
