KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
33

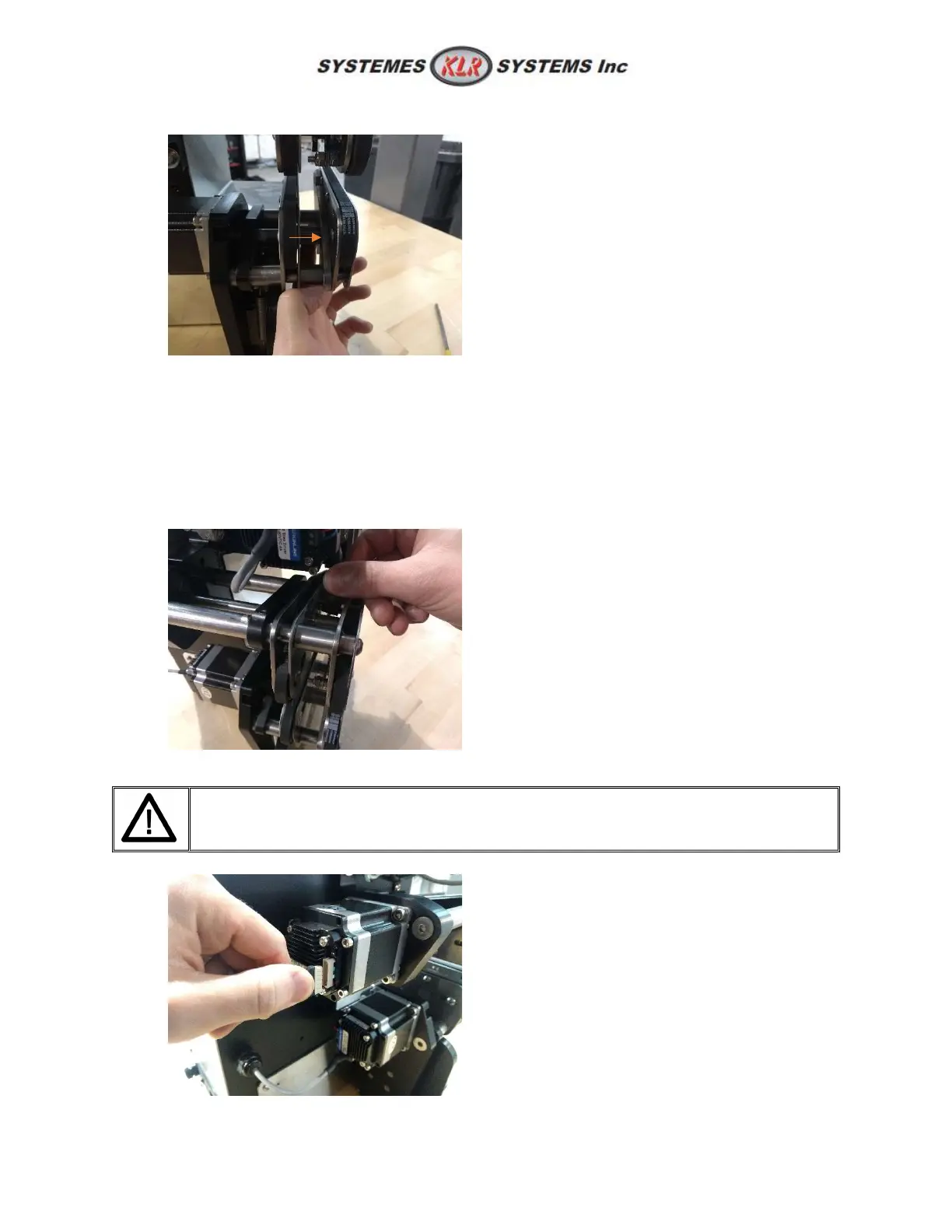

20. Now slide the bevel part against the front assembly and tight the set screws;
21. Now, check the tension of the new belts. If needed, tension it by the bottom head screws
behind each holder. An Allen key 1/8 90 degrees is required;
Top belts
The procedure is different from the bottom assembly:
1. Turn OFF the equipment and remove completely the power cord from the machine;
2. Remove carefully the connector from the finger sensor;
3. Remove carefully the connector from the top driving stepper motor;
NEVER remove a motor connector when power is ON. ALWAYS turn OFF the
equipment before. Go against this notice can result in material damage.
