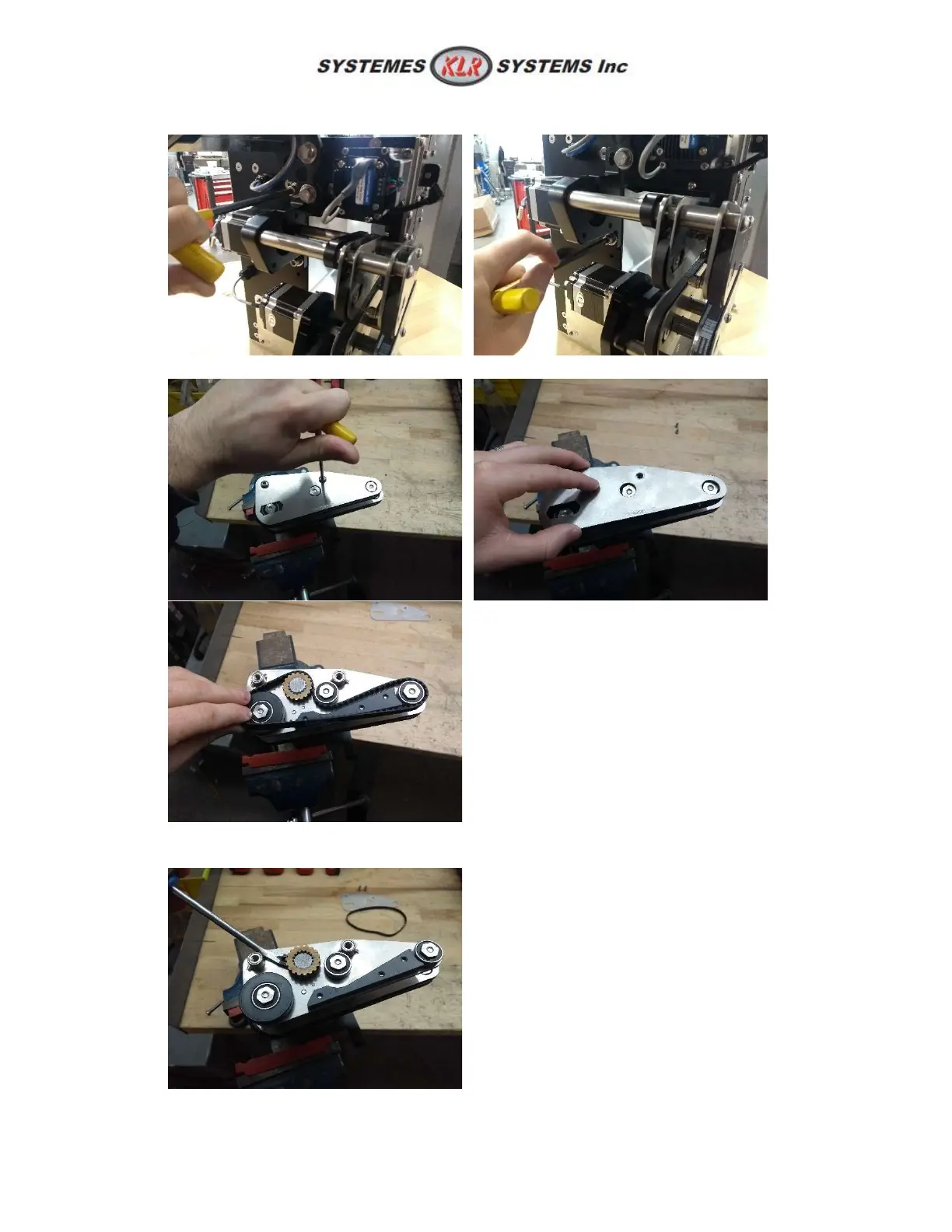

4. With an Allen key 1/4, remove completely the top assembly;
5. From now on, the procedure is close to the bottom assembly. Dissemble as shown:
6. When the sprocket is fairly new, it might be relatively tight onto the spline shaft. In that case,
use gently a flat screwdriver or a small crowbar as shown;
