KMT Streamline SL-IV User Manual

SECTION 3
OPERATION
July 2003
p 3-1
05132519
Section 3 OPERATION
3 Features
The SL-IV 11 kW (15hp) Waterjet Pump is composed of the following systems:
• Low Pressure Water System
• High Pressure Water System
• Hydraulic System
• Recirculation System
• Electrical System
3.1 Operation Overview
The I-R SL-IV Waterjet Pump can be started and stopped from either the pump-
mounted controls or from (optional) remote controls located at or near the cutting
system operator’s console.

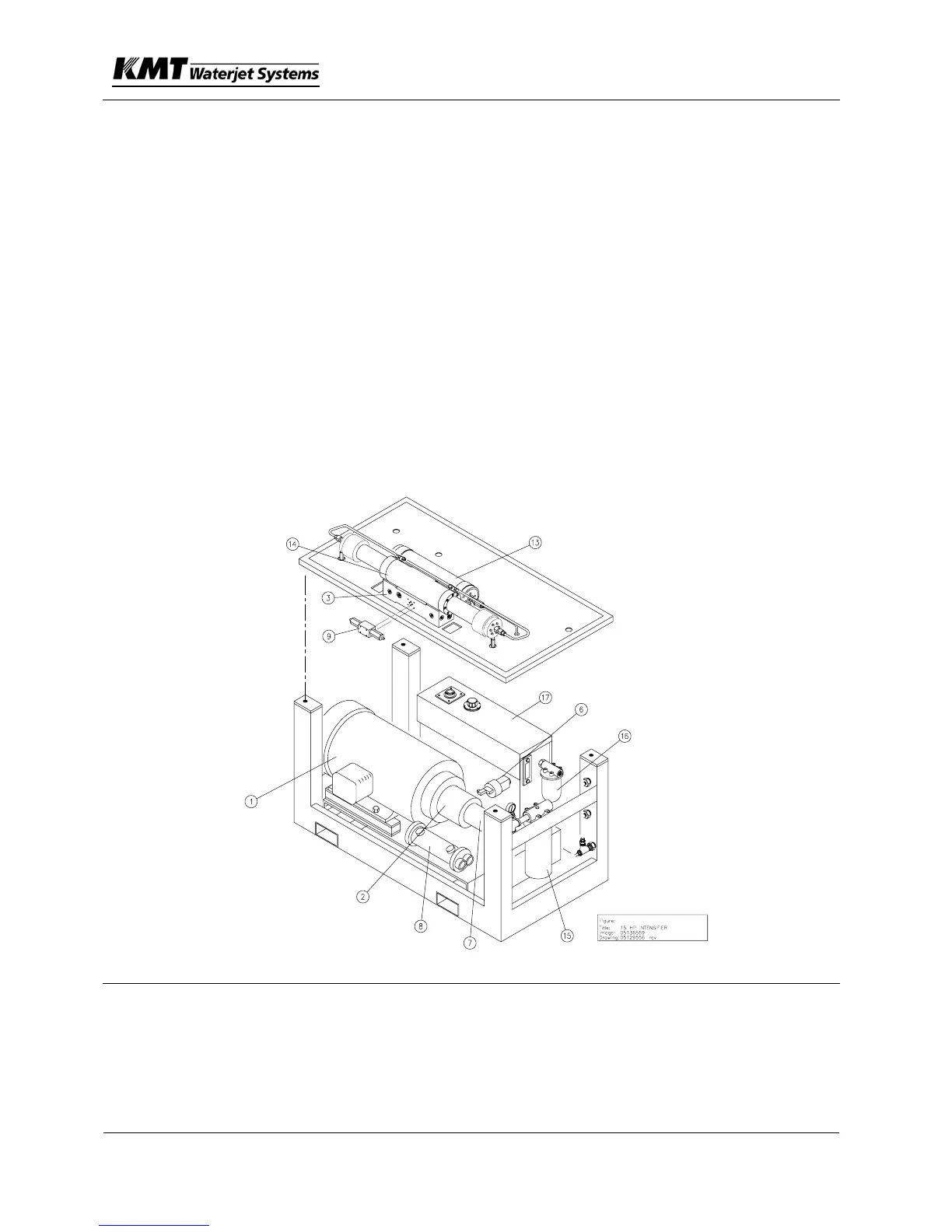

The following provides the component overview:
Item Description
1 Electric Motor
2 Hydraulic Pump
3 Manifold
6 Solenoid Shutoff
Valve
7 Hydraulic Gear
Pump
8 Heat Exchanger
9 Directional Control
Valve
13 HP Attenuator
14 Intensifier
15 LP Water Filter
16 Oil Filter
17 Reservoir
