SECTION 7
HIGH PRESSURE WATER
Nov 2002
p. 7-2
05126826
7.2 Intensifier Disassembly and Reassembly
Detailed instructions are provided on disassembly and reassembly of the
hydraulic intensifier, including HP seal maintenance. A discussion of
detailed inspection and repair for individual HP subassemblies is also
provided. The HP attenuator is discussed but no disassembly procedures
are included since attenuators are not serviceable by the customer.

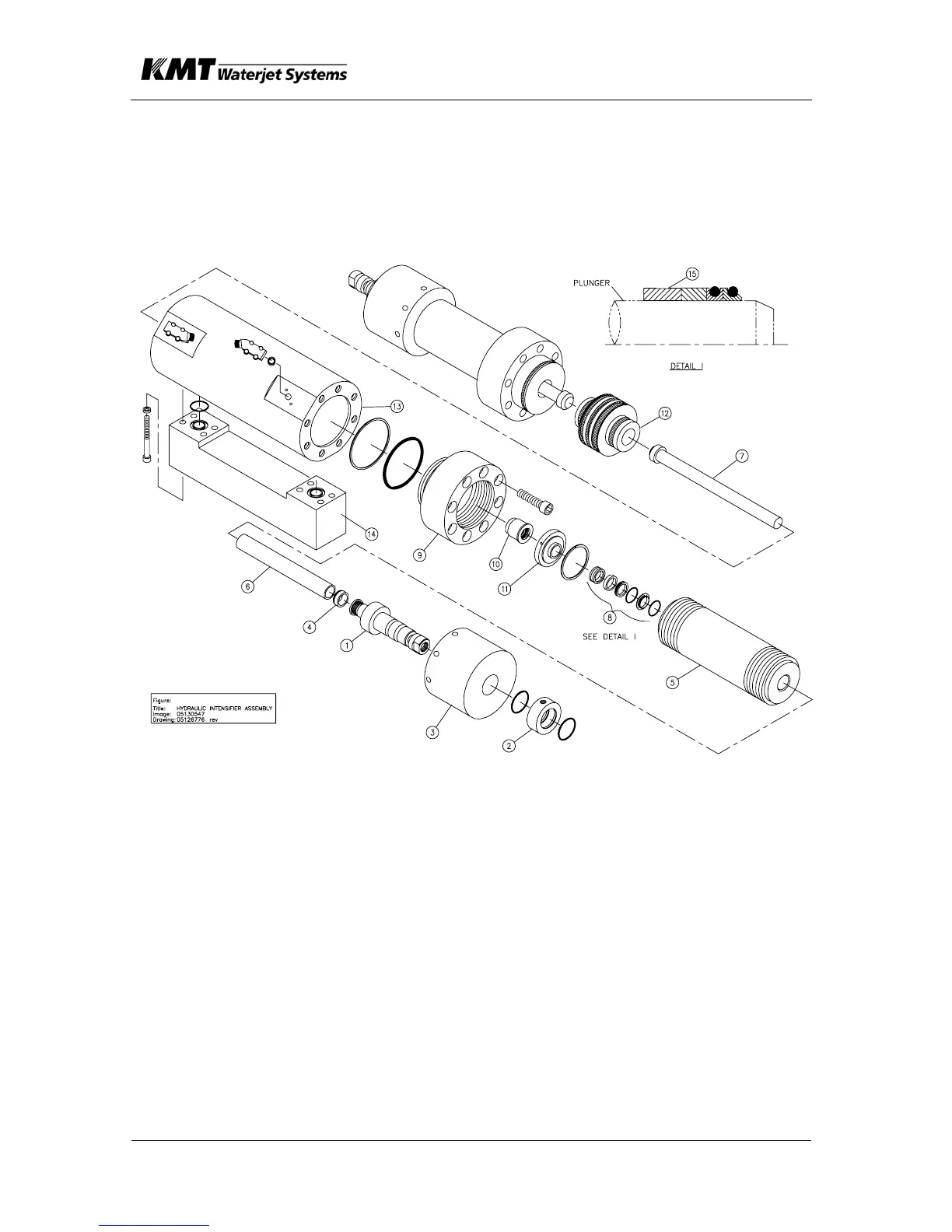

Item Description
(1) Sealing Head (2) Collar (3) Sealing Head Nut
(4) Head Seal (5) Cylinder Body (6) Cylinder Liner
(7) Plunger (8) Plunger Seal (9) Cylinder Head
(10) Hydraulic Cartridge Seal (11) Flange (12) Piston
(13) Cylinder (14) Manifold (15) Packing Follower
