SECTION 7
HIGH PRESSURE WATER
Nov 2002
p. 7-25
05126826
7.3.8 Hydraulic Cylinder
The inside diameter surface of the hydraulic cylinder should be inspected
for wear grooves and surface finish whenever the hydraulic cylinder
heads are removed. Excessive grooving on this bore is indicative of
piston seal wear.

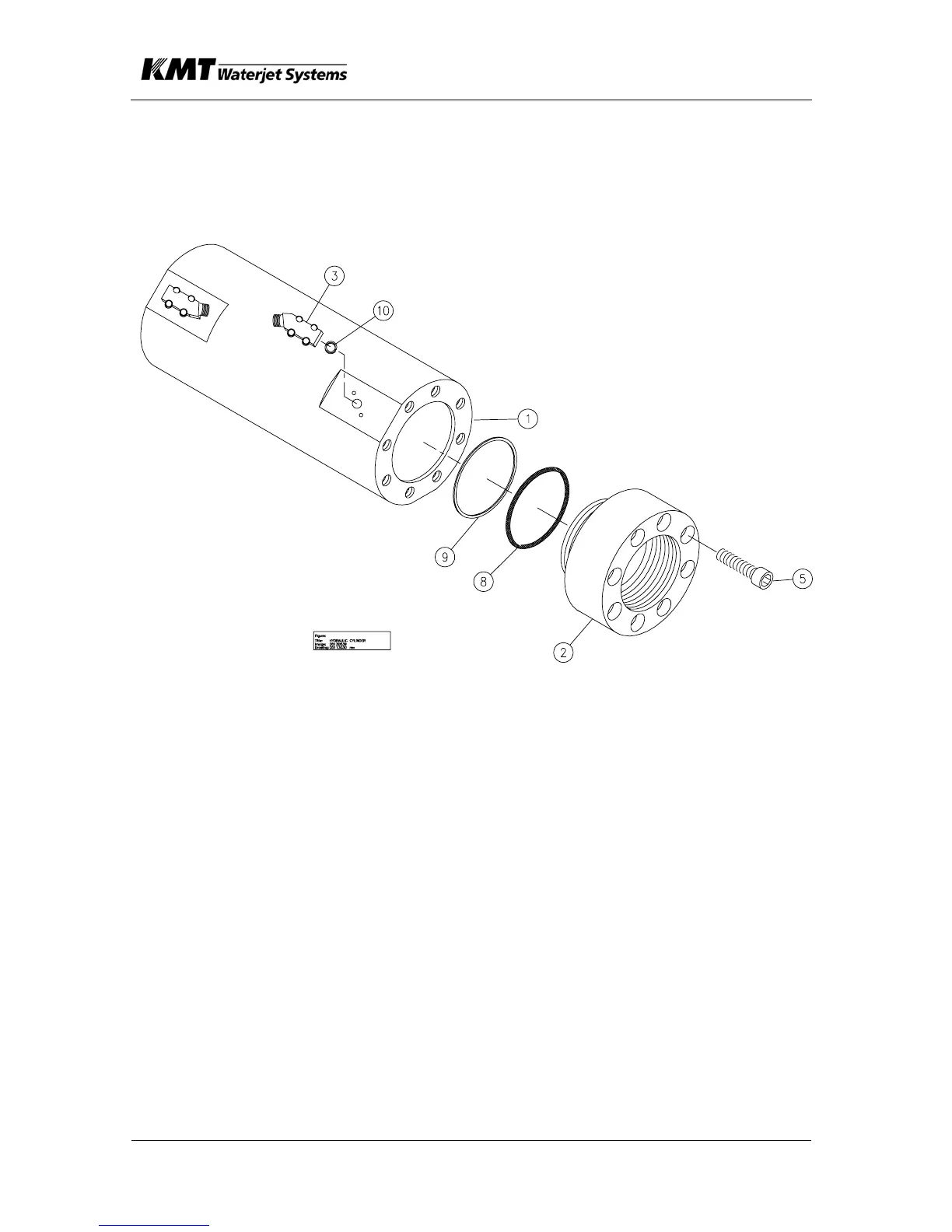

Item Description
(1) Hydraulic Cylinder (2) Cylinder Head (3) Proximity Switch
(5) Cap Screw (8) Back-up ring (9) O-ring
(10) Spacer
