SECTION 7
HIGH PRESSURE WATER
Nov 2002
p. 7-24
05126826

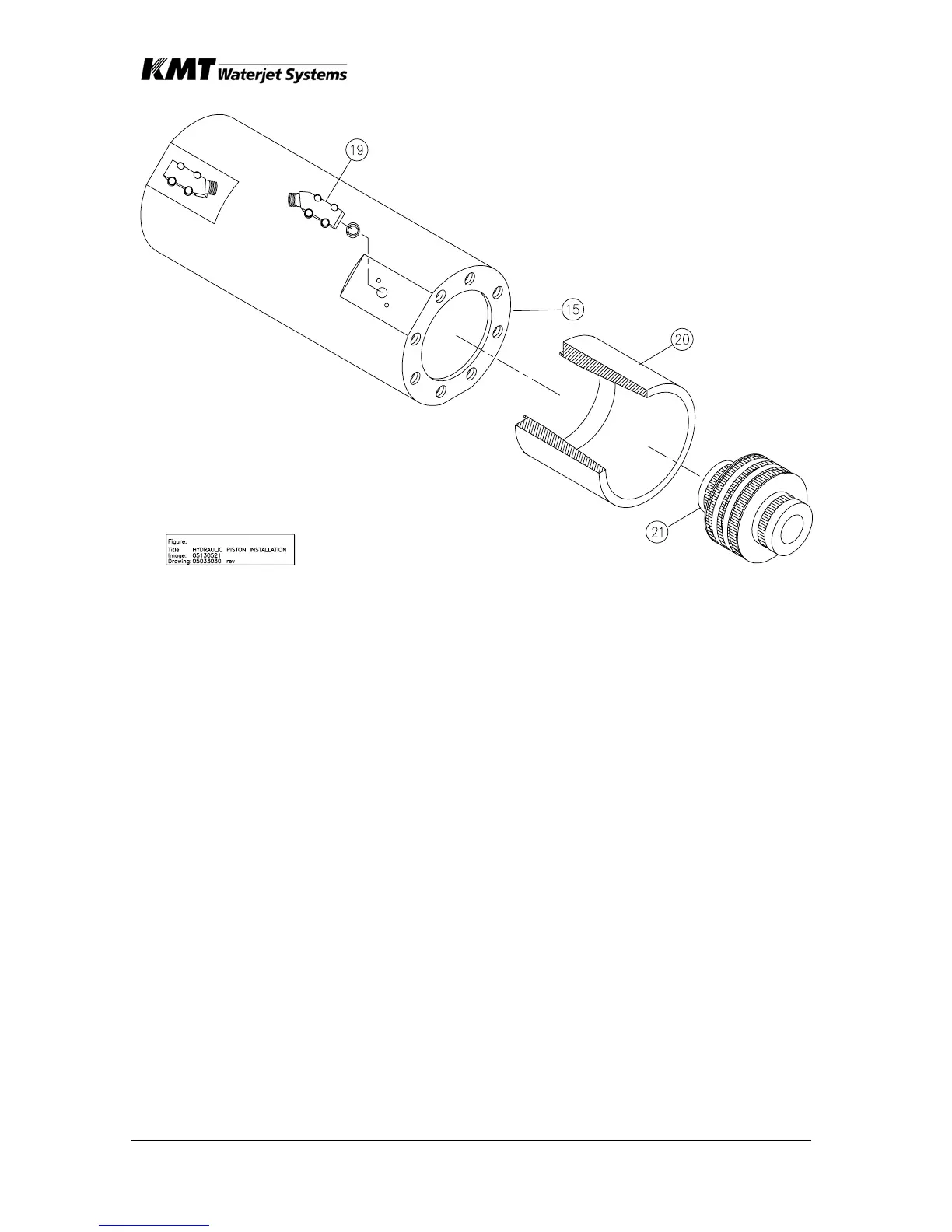

(15) Hydraulic Cylinder (19) Proximity Switch
(20) Seal Ring Compression Tool (P460) (21)Hydraulic Piston Assy
